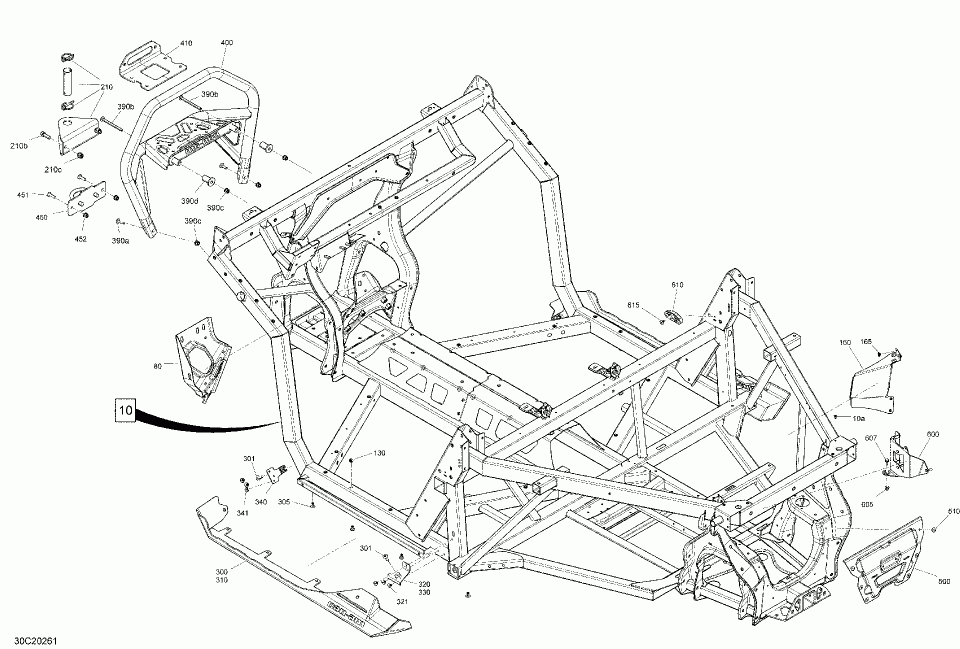

09- frame - xmr

Cam-am 004 - Defender HD10 - XMR - North America
Cam-am
#oem кодцена
10
715006677
Black, Frame Kit.
10a
390402200
Pop Rivet 3/16
130
250100199
Insert Half Hex Body M6 x 1.0.
160
707002717
Heat Shield.
165
293150092
Pop Rivet 3/16”.
300
705208686
Deep Black, LH Guard Panel. Model Camo.
300
705208694
Manta Green, LH Guard Panel. Manta Green.
301
250000874
Torx Truss M8 X 25.
305
293150108
Pop Rivet 3/16”.
310
705208687
Deep Black, RH Guard Panel. Model Camo.
310
705208695
Manta Green, RH Guard Panel. Manta Green.
320
705206342
LH Rock Slider Support.
321
293150104
Pop Rivet 3/16
330
705206343
RH Rock Slider Support.
340
705208661
Front Guard Support.
341
293150104
Pop Rivet 3/16
390a
250000886
Torx Screw M8 X 30.
390b
250001106
Torx Truss M/S M8 x X 100.
390c
233281414
Hex. Flanged Elastic Nut M8.
390d
705206398
Bumper Spacer.
400
715006143
Deep Black, Front Bumper. Model Camo.
400
715006144
Manta Green, Front Bumper. Model Manta Green.
410
705206371
Winch Support.
450
705208723
Can-Am Red, Tow Hook.
451
250000886
Torx Screw M8 X 30.
452
233281414
Hex. Flanged Elastic Nut M8.
500
705207753
Rear Chassis Reinforcement.
510
293150104
Pop Rivet 3/16
600
710006644
Voltage Regulator Support.
605
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
607
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip.
610
705208203
Spacer.
615
293150104
Pop Rivet 3/16
80
705208741
Power Steering Support.
