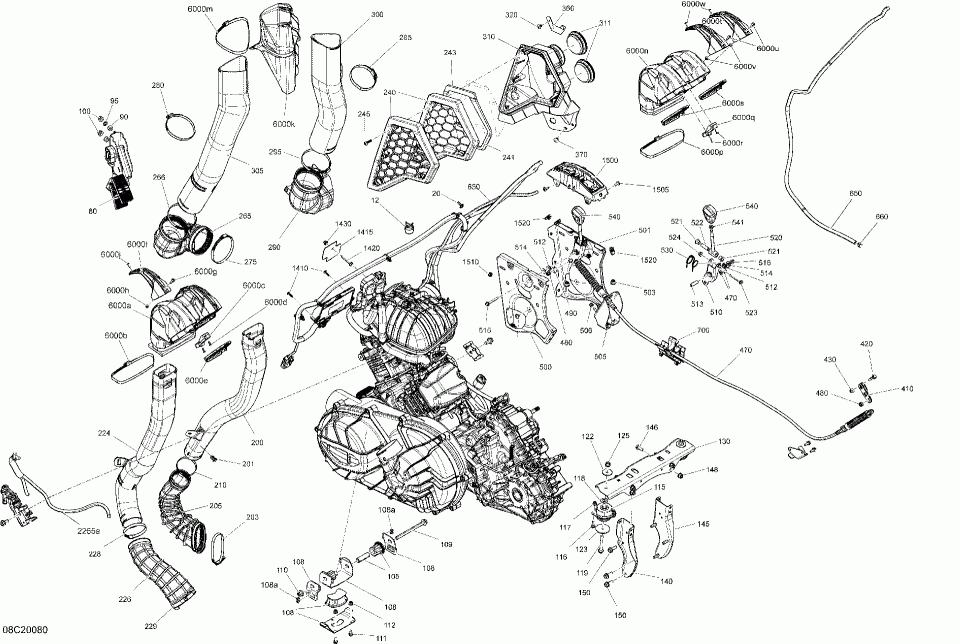

Двигатель Оригинальные запчасти для мотовездеходов UTV Cam-am 004 - Maverick Sport 1000R - XMR

Hex. Flanged Elastic Nut M6 x 1.0.

115

707002590

Rubber Mount.

116

207662044

Hex. Flanged Screw M6 X 20.

117

Hex. Flanged Elastic Nut M6 x 1.0.

118

293300215

КОЛЬЦО

119

207686544

Hex. Flanged Screw, M8 X 65.

293650214

Norma Spring Clamp.

122

250200158

Flat Washer M8.

123

250200180

Flat Washer M8.

125

233081416

Hex. Flanged Nut M8.

130

707002290

Bracket-Link.

140

707002449

Engine Bracket.

1410

250000760

Torx Screw Truss Head K50X20 T20.

1415

710000073

Insulator Pad.

1420

250000213

Hex. Flanged Screw M6 X 1.0 X 45.

1430

250100199

Insert Half Hex Body M6 x 1.0.

145

707002450

Engine Bracket.

146

207582046

Hex Flanged Screw M8 X 20.

148

233281416

Hex. Elastic Flanged Nut M8.

150

207582544

Hex. Flanged Screw M8 X 25, Scotch Grip.

1500

707900603

Lever Indicator.

1505

250000717

Torx Head Screw M6 X 16.

1510

250100199

Insert Half Hex Body M6 x 1.0.

1520

250000957

Extruded Panel Nut M6.

250000959

Screw PT Type K-50 X 16.

200

706600259

Front CVT Cooling Duct.

201

293150230

Tuflok Plastic Rivet.

203

Norma Gear Clamp.

205

706600258

Flexible Adapter.

210

293650091

Norma Clamp.

224

706600256

Rear CVT Cooling Duct.

226

706600283

Flexible Adapter.

2265a

415080000

Tubing 16 mm (1 meter pac).

228

293650091

Norma Clamp.

229

514052924

Norma Clamp.

240

706600281

Caped CVT Filter.

241

706600191

Gasket.

243

706600231

Gasket.

245

250000980

Hex. Screw Pt K60 X 25.

265

706600257

CVT Cooling Duct Out.

266

Norma Gear Clamp.

275

Norma Gear Clamp.

280

Norma Gear Clamp.

285

293650091

Norma Clamp.

290

706600261

Air Baffle.

295

Norma Gear Clamp.

300

706600268

Pipe Vent.

305

706600269

Pipe Vent.

310

706600196

CVT Airbox.

311

707002217

Plug.

320

293150104

Pop Rivet 3/16

360

706600237

Support.

370

293150104

Pop Rivet 3/16

410

707000911

РЫЧАГ

420

207663544

Hex. Flanged Screw M6 X 35.

430

Hex. Flanged Elastic Nut M6 x 1.0.

470

707002000

Shifting Cable.

480

232581414

Hex. Elastic Stop Nut M8.

490

234001410

Flat Washer 10 mm.

500

707002099

LH Bracket.

501

707002100

RH Bracket.

502

293150103

Pop Rivet 3/16

503

233281416

Hex. Elastic Flanged Nut M8.

505

707002098

Cable Support.

506

Hex. Flanged Elastic Nut M6 x 1.0.

510

707002093

Lower Lever Arm.

512

707000847

Flanged Bushing.

513

707001376

Bushing.

514

234062410

Flat Washer 6 mm.

515

207665044

Hex. Flanged Screw M6 X 50.

516

Hex. Flanged Elastic Nut M6 x 1.0.

520

707000711

Upper Lever Arm.

521

707000869

Flanged Bushing.

522

707001376

Bushing.

523

207665044

Hex. Flanged Screw M6 X 50.

524

Hex. Flanged Elastic Nut M6 x 1.0.

530

707000750

Lever Arm Spring.

540

707000965

Lever Button.

541

232180491

Hex. Jam Nut M8.

6000a

706600271

Air Inlet.

6000b

293650275

Clamp.

6000c

706600284

Jonction Grid.

6000d

Torx Truss Screw K40 X 12.

6000e

706600317

Manta Green Grate.

6000f

707001630

Manta Green Molding.

6000g

250000792

Torx Screw M5 X 20.

6000h

233251494

Elastic Flanged Nut M5.

6000j

Torx Truss Screw K40 X 12.

6000k

706600265

CVT Outlet.

6000m

293650276

Clamp.

6000n

707800821

Air Inlet.

6000p

293650275

Clamp.

6000q

706600284

Jonction Grid.

6000r

Torx Truss Screw K40 X 12.

6000s

706600317

Manta Green Grate.

6000t

707001630

Manta Green Molding.

6000u

250000792

Torx Screw M5 X 20.

6000v

233251494

Elastic Flanged Nut M5.

6000w
