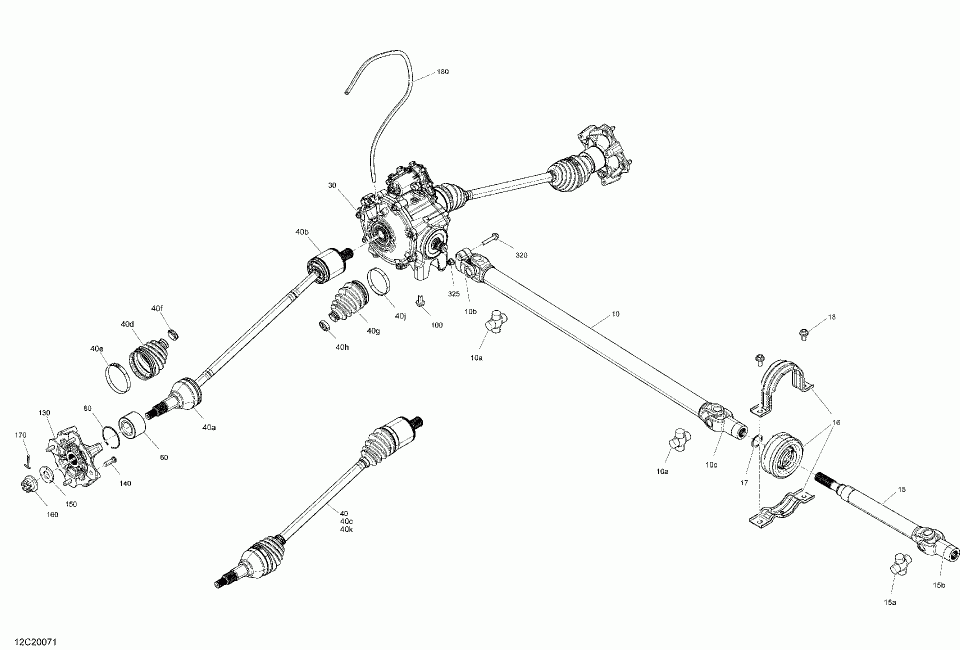

07- front drive - common parts - xmr

Cam-am 004 - Maverick Sport 1000R - XMR - North America
Cam-am
#oem кодцена
100
207502046
Hex. Flanged Screw M10 X 20.
10a
715900402
J-Joint Cross Kit.
10b
715900400
Fixed Yoke.
10c
715900401
Yoke.
130
705502338
Wheel Hub.
140
250300055
Wheel Stud M10 X 1.25.
150
250200170
Conical Spring Washer M20.
15a
715900402
J-Joint Cross Kit.
15b
715900401
Yoke.
16
705401938
Bearing.
160
250100193
Castle Nut M20.
17
293370098
Snap Ring.
170
250400084
Cotter Pin.
18
207502046
Hex. Flanged Screw M10 X 20.
180
293830193
Polyurethane Hose.
30
705402371
Front Differential Ass.
320
250001050
Hex. Flanged Screw M8 X 42.
325
233281416
Hex. Elastic Flanged Nut M8.
40
705402282
Front Half Shaft. Includes 40 to 40k.
40a
715900619
CV Joint.
40b
715900568
Plunging Joint.
40c
715900569
Circlip.
40d
705401354
Boot Kit, Wheel Side. Includes 40d to 40f.
40e
715900260
Oetiker Clamp, Large.
40f
715900261
Oetiker Clamp, Small.
40g
705401355
Boot Kit, Diff?rential Side. Includes 40g to 40j.
40h
715900261
Oetiker Clamp, Small.
40j
715900262
Oetiker Clamp, Large.
40k
715900580
КОЛЬЦО
60
293350118
Cone Bearing.
80
293370019
Circlip.
