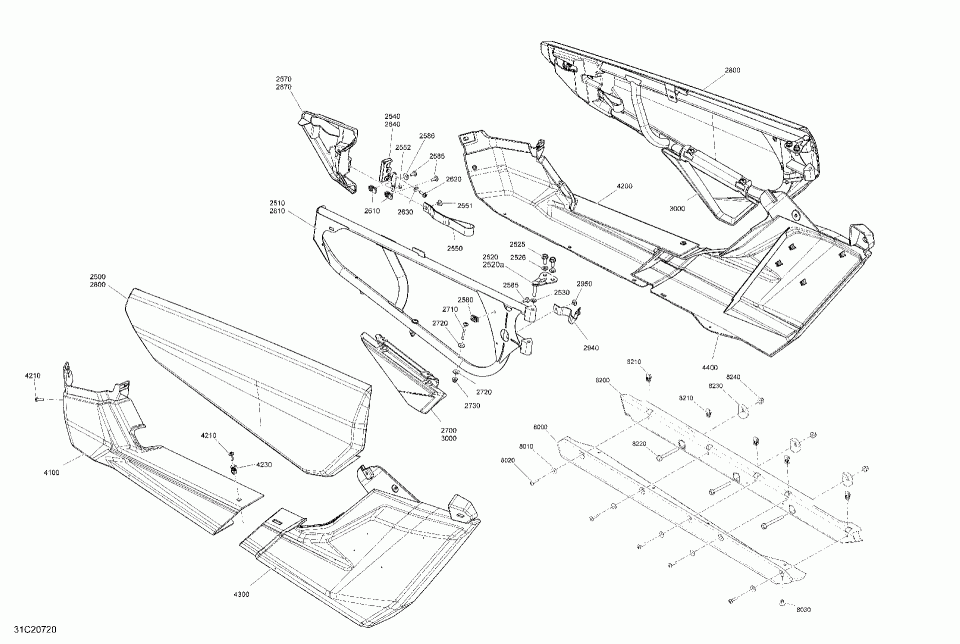

09- body - door section - xrc - orange

Cam-am 004 - Maverick Turbo RR - XRC - International
Cam-am
#oem кодцена
2500
705012472
Carbon Black, LH Door Panel.
2510
705014089
Orange Crush, LH Front Door.
2520
705011187
Door Support. Includes 2520 to 2520a.
2525
207582054
Washer Head Hexa. Screw M8 X 20.
2526
234081430
Flat Washer M8.
2530
234081100
Flat Washer 8 mm, Nylon.
2540
705013095
LH Latch.
2550
293850135
Belt.
2551
293150103
Pop Rivet 3/16
2552
293900104
Bushing.
2570
705013535
LH Latch Cover.
2580
250000957
Extruded Panel Nut M6.
2585
250000721
Torx Truss Screw M6 X 16.
2586
234062670
Flat Washer, Stainless.
2590
293150103
Pop Rivet 3/16
2610
250000957
Extruded Panel Nut M6.
2620
250000722
Torx Screw M6 X 20.
2630
224061121
Flat Washer.
2700
705010732
LH Lower Door Panel. Turbo Version.
2710
250000749
Torx Truss Screw M6 X 50. Turbo Version.
2720
234062670
Flat Washer, Stainless. Turbo Version.
2730
233261466
Hex. Flanged Elastic Nut M6. Turbo Version.
2800
705012473
Carbon Black, RH Door Panel.
2810
705015443
Black, RH Front Door Frame. Turbo Version.
2810
705014090
Orange Crush, RH Front Door. Turbo RR Version.
2840
705013096
RH Latch.
2870
705013536
RH Latch Cover.
2940
293850129
Door Belt.
2950
293150103
Pop Rivet 3/16
3000
705010733
RH Lower Door Panel.
4100
705014105
Orange Crush, LH Front Lower Body Panel.
4200
705014106
Orange Crush, LH Lower Body Panel.
4210
250000722
Torx Screw M6 X 20.
4230
705010872
Insert.
4300
705014107
Orange Crush, LH Rear Lower Body Panel.
4400
705014108
Orange Crush, RH Rear Lower Body Panel.
8000
705014109
Orange Crush, LH Body Panel Guard.
8010
250200164
Flat washer M6.
8020
250000807
Torx Truss Screw M6 X 25.
8030
293150108
Pop Rivet 3/16”.
8100
705014110
Orange Crush, RH Body Panel Guard.
8200
705012774
LH Lateral Structure.
8210
250000957
Extruded Panel Nut M6.
8220
207687044
Hex. Flanged Screw M8 X 70.
8230
705205462
Saddle Washer.
8240
233281464
Elastic Flange Nut M8.
8300
705012775
RH Lateral Structure.
