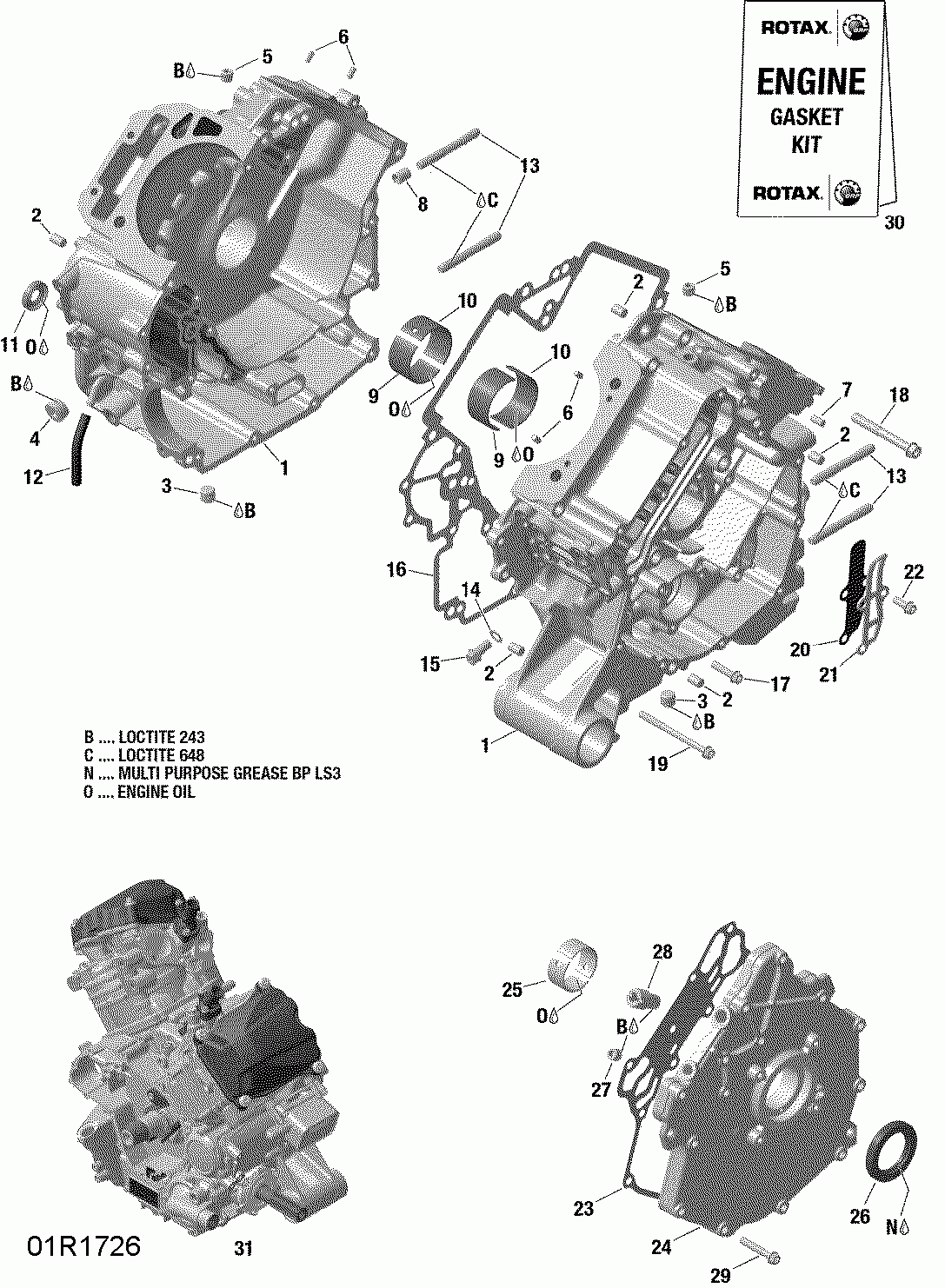

01- crankcase - hd8

Cam-am 004 - Traxter MAX HD8 - International
Cam-am
#oem кодцена
10
420233965
Plain Bearing.
11
420650315
Oil Seal. Included in Gasket Set.
13
420240816
Stud.
14
420950141
Sealing Ring. Included in Gasket Set.
15
420440852
Flanged Torx Screw M8 X 16.
16
420651227
Gasket. Included in Gasket Set.
17
420641238
Flanged Torx Screw M6 X 25.
18
420440402
Flanged Torx Screw M8 X 65.
19
420440657
Flanged Torx Screw M6 X 75.
2
420632010
Center Pin 8 X 12.
20
420224720
Valve Plate.
21
420224725
Reed Valve Stop.
22
420440162
Flanged Torx Screw M6 X 16.
23
420651211
Gasket. Included in Gasket Set.
25
420233995
Bearing Sleeve.
26
420631933
Oil Seal. Included in Gasket Set.
27
420641323
Plug Screw M10 X 1.
28
420256334
Hose Nipple M12 X 1.5.
29
420440274
Flanged Torx Screw M6 X 35.
3
420840658
Plug Screw M12x1,5.
30
420684155
Gasket Set HD8.
31
420081060
Long Block HD8.
4
420240170
Plug Screw M18 X 1.5.
5
420641323
Plug Screw M10 X 1.
6
420929650
Drive Pin 5 X 10.
7
420932780
Needle Pin.
8
420929670
Dowel Pin 10 X 13.
9
420233960
Plain Bearing.
