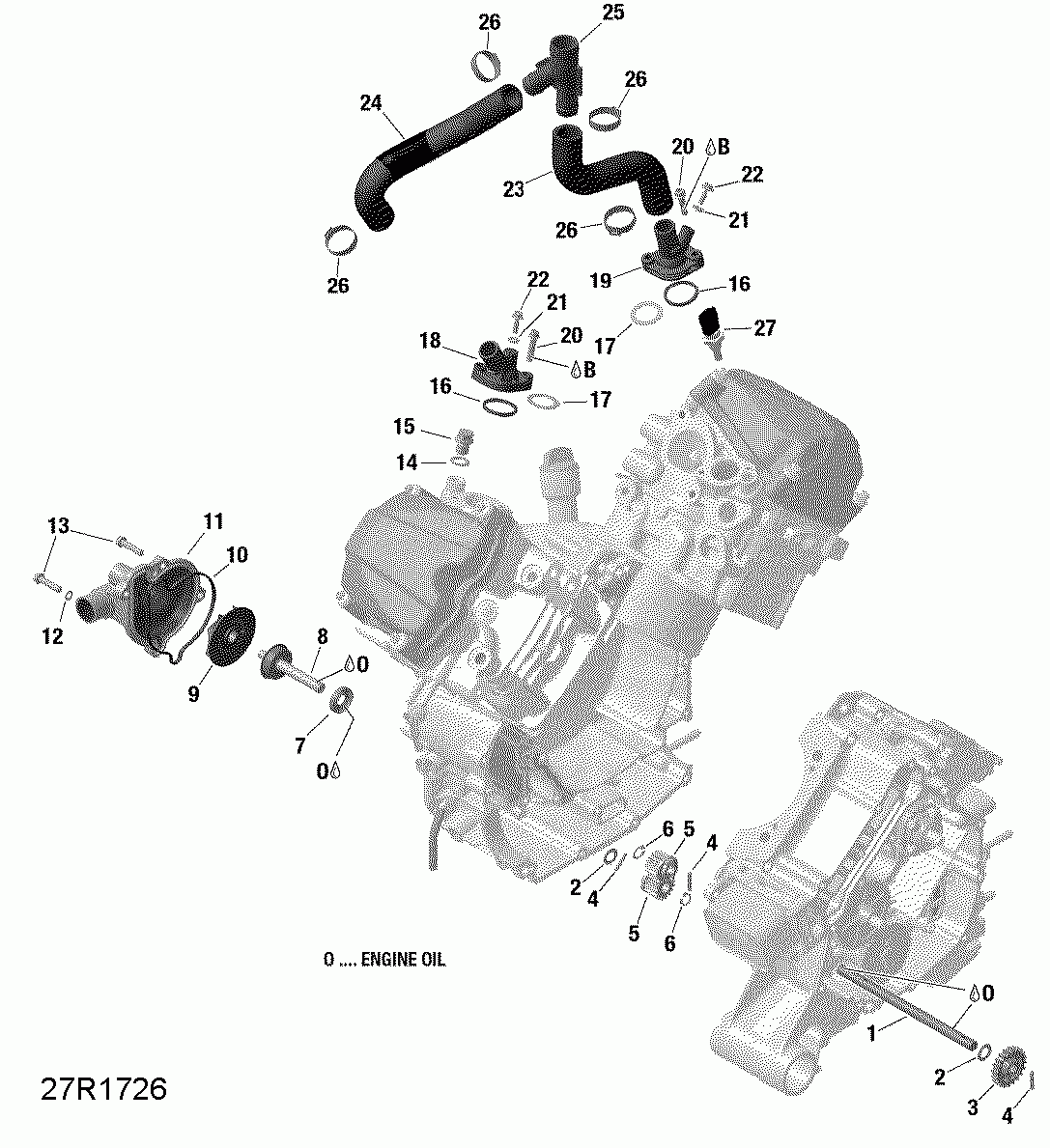

01- engine cooling - hd8

Cam-am 004 - Traxter MAX HD8 - International
Cam-am
#oem кодцена
1
420620500
Intermediate Shaft.
10
420651191
Gasket. Included in Gasket Set.
11
420622022
Water Pump Housing.
12
420230415
Seal Washer. Included in Gasket Set.
13
420641238
Flanged Torx Screw M6 X 25.
14
420250640
Copper Washer. Included in Gasket Set.
15
420841921
Plug Screw M12 X 1.5.
17
420650300
Thermostat Gasket. Included in Gasket Set.
18
420222691
Thermostat Cover.
19
420222693
Thermostat Cover.
2
420827590
Thrust Washer.
20
420641238
Flanged Torx Screw M6 X 25.
21
420650255
Gasket Ring. Included in Gasket Set.
22
420441621
Screw M5 X 16.
23
420822694
Rear Head Hose.
24
420822699
Front Head Hose.
25
709200414
Y-Fitting.
26
420251578
Clamp.
27
278002895
Temperature Sensor.
3
420434330
Water Pump Gear.
4
420232420
Needle Pin.
5
420234627
Pump Gear, 15 Teeth.
6
504152282
Circlip.
7
420650315
Oil Seal. Included in Gasket Set.
8a
420650370
Rotary Seal.
9
420822750
Water Impeller.
