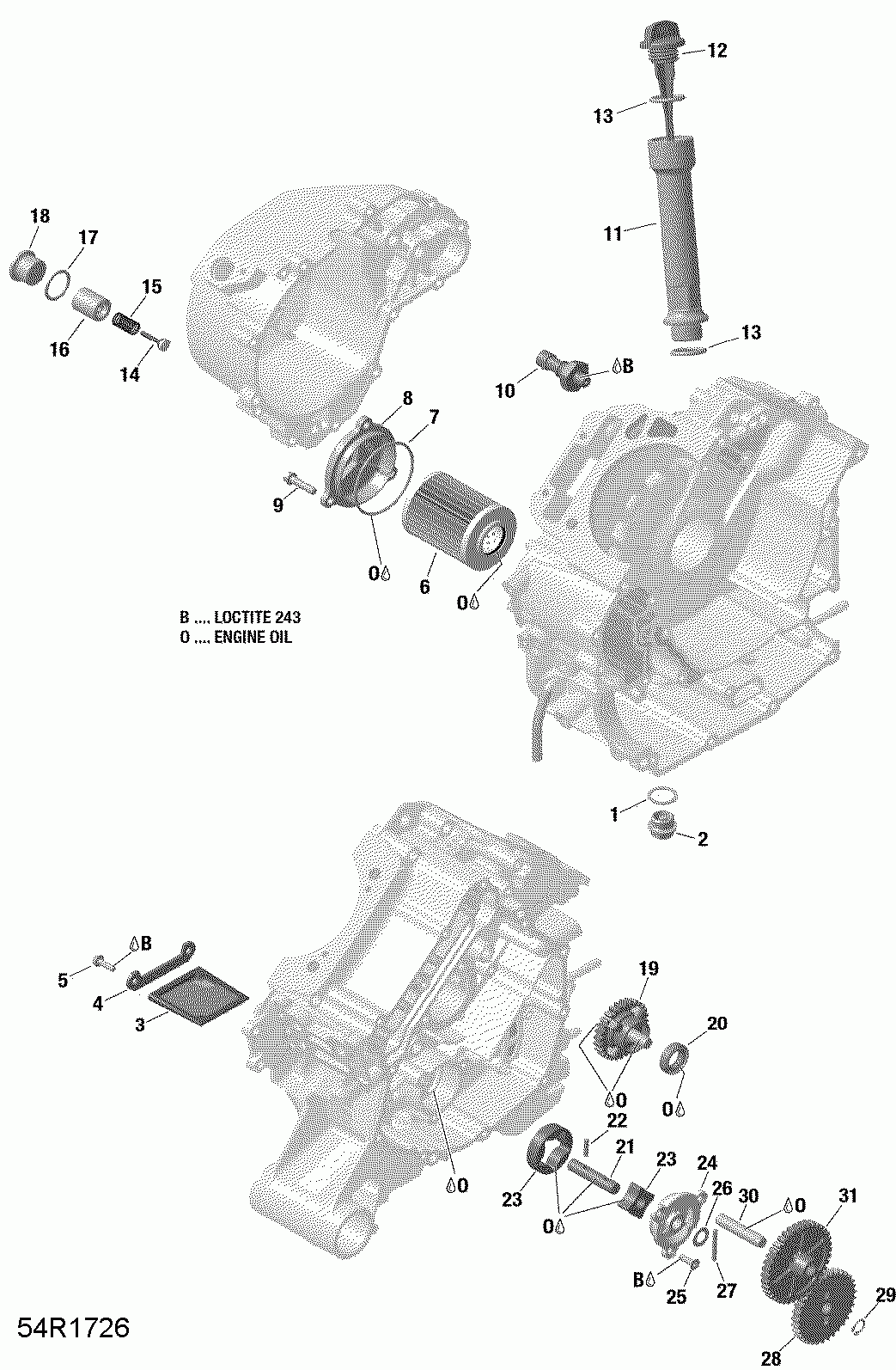

01- engine lubrication - hd8

Cam-am 004 - Traxter MAX HD8 - International
Cam-am
#oem кодцена
1
420552280
O-Ring. Included in Gasket Set.
10
420256915
Oil Pressure Switch.
11
420856925
Oil Lever Tube.
12
420856810
Oil Dipstick.
13
420631640
O-Ring. Included in Gasket Set.
14
420656370
Pressure Relief Valve.
15
420939485
Compression Spring.
16
420256487
Housing Valve.
17
420650465
Gasket Ring. Included in Gasket Set.
18
420640270
Screw Plug.
2
420840277
Drain Plug M18 X 1.5.
20
420430555
Oil Seal. Included in Gasket Set.
21
420237059
Oil Pump Shaft.
22
420232731
Needle Pin.
23
420256348
Oil Pump Rotor.
24
420210641
Oil Pump Cover.
25
420640823
Torx Screw M5 X 16.
26
420827590
Thrust Washer.
27
420232431
Needle Pin.
28
420434320
Oil Pump Gear, 33 Teeth.
29
504152282
Circlip.
3
420256322
Oil Sieve.
30
420229302
Location Pin.
31
420434300
Idle Gear, 38 Teeth.
4
420612070
Cover Sieve.
5
420941925
Tapping Screw M5 X 16.
6
420256188
Oil Filter.
7
420230920
КОЛЬЦО
8
420612132
Oil Filter Cover.
9
420641238
Flanged Torx Screw M6 X 25.
