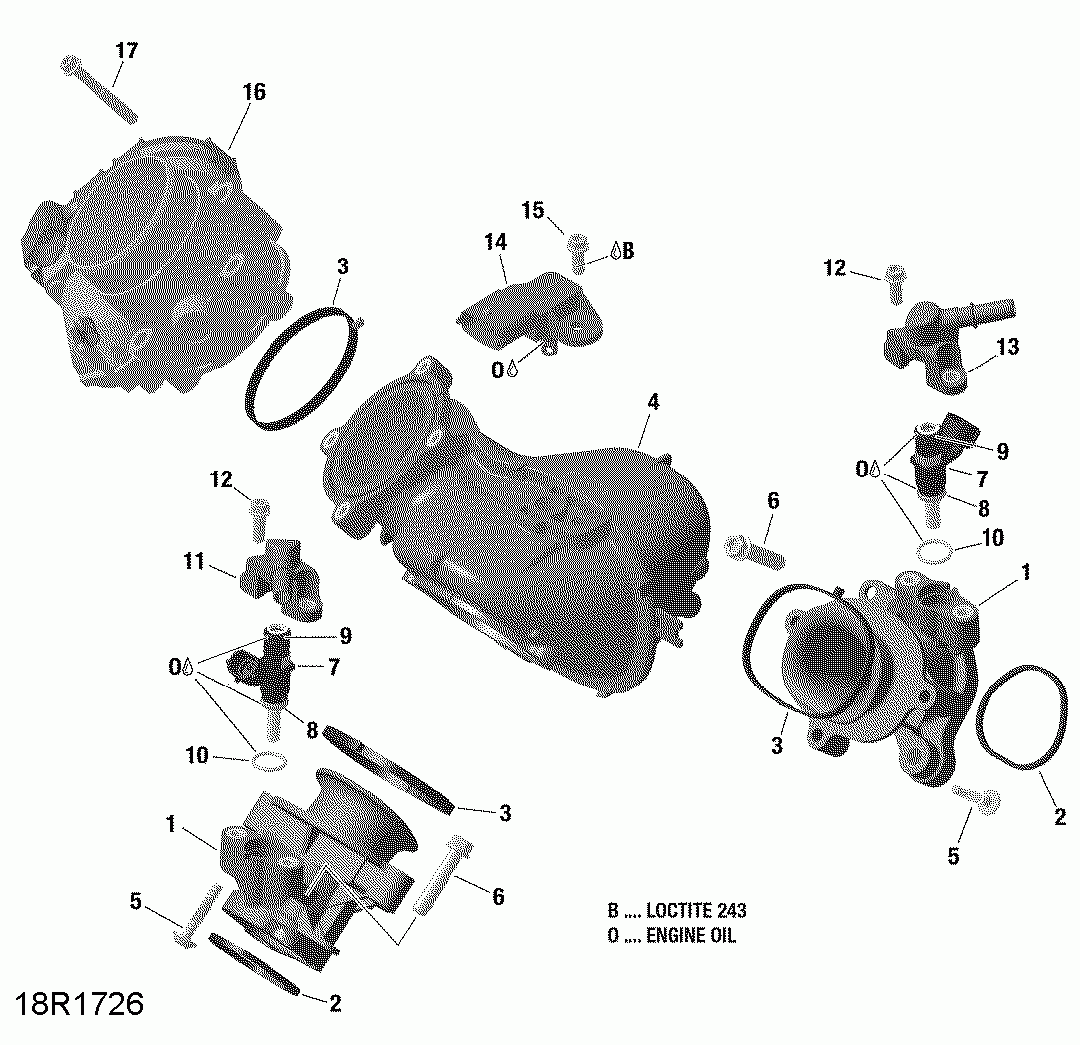

02- air intake manifold and throttle body - hd8
02- air intake manifold and throttle body - hd8

02- air intake manifold and throttle body - hd8

Cam-am 004 - Traxter MAX HD8 - International

02- air intake manifold and throttle body - hd8

#

oem код

название

цена

1

Air Intake Manifold.

Air Intake Manifold.

10

O-Ring. Included in Gasket Set.

O-Ring. Included in Gasket Set.

11

Fuel Rail.

Fuel Rail.

12

Flanged Torx Screw M6 X 16.

Flanged Torx Screw M6 X 16.

13

Fuel Rail.

Fuel Rail.

14

Pressure And Temperature Sensor.

Pressure And Temperature Sensor.

15

Flanged Torx Screw M6 X 16.

Flanged Torx Screw M6 X 16.

16

Throttle Body.

Throttle Body.

17

Flanged Torx Screw M6 X 45.

Flanged Torx Screw M6 X 45.

2

Gasket. Included in Gasket Set.

Gasket. Included in Gasket Set.

3

Gasket. Included in Gasket Set.

Gasket. Included in Gasket Set.

4

Air Intake Manifold.

Air Intake Manifold.

5

Flanged Torx Screw M6 X 30.

Flanged Torx Screw M6 X 30.

6

Flanged Torx Screw M8 X 35.

Flanged Torx Screw M8 X 35.

8

КОЛЬЦО

КОЛЬЦО

9

КОЛЬЦО

КОЛЬЦО
