Cam-am 004 - Traxter MAX HD8 - International

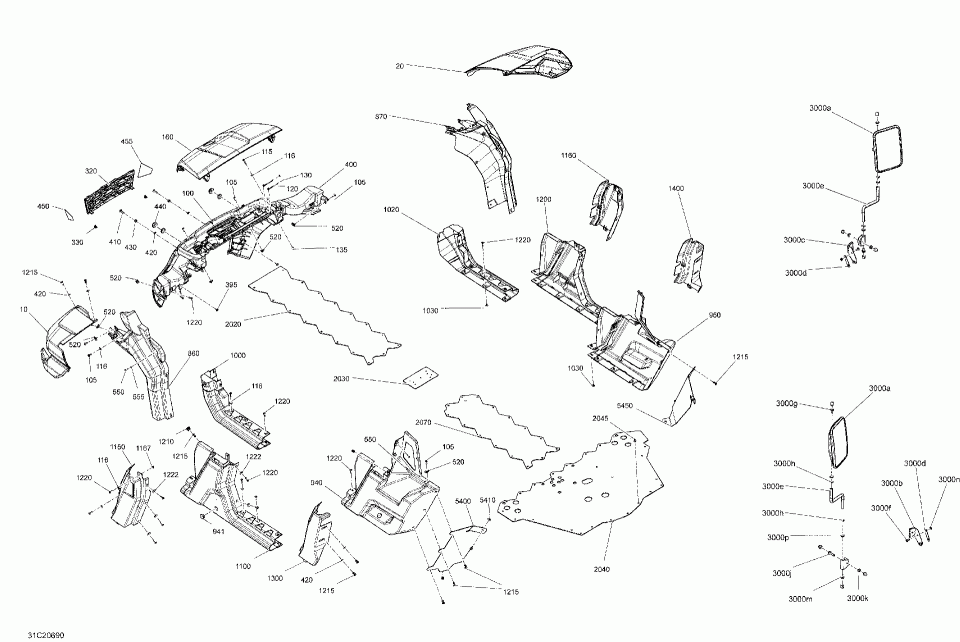

09- body - squadron green - dps

#

oem код

название

цена

10

Squadron Green, Front LH Fender.

Squadron Green, Front LH Fender.

100

Multi Purpose Support.

Multi Purpose Support.

1000

LH Central Lateral Panel.

LH Central Lateral Panel.

1020

RH Central Lateral Panel.

RH Central Lateral Panel.

1030

Pop Rivet 3/16”.

Pop Rivet 3/16”.

105

Torx Screw M6 X 20.

Torx Screw M6 X 20.

1100

LH Middle Side Panel.

LH Middle Side Panel.

115

Flanged Hex. Screw M6 X 30.

Flanged Hex. Screw M6 X 30.

1150

LH Middle Cage Cover.

LH Middle Cage Cover.

116

Flat Washer, Stainless.

Flat Washer, Stainless.

1160

RH Middle Cage Cover.

RH Middle Cage Cover.

1167

Insert Half Hex Body M6 x 1.0.

Insert Half Hex Body M6 x 1.0.

120

Screw Hex Flange M6 X 75.

Screw Hex Flange M6 X 75.

1200

RH Middle Side Panel.

RH Middle Side Panel.

1210

Insert.

Insert.

1215

Tuflok Plastic Rivet.

Tuflok Plastic Rivet.

1220

Torx Truss Screw M6 X 25.

Torx Truss Screw M6 X 25.

1222

Flat Washer M6.6 X 22.

Flat Washer M6.6 X 22.

130

Push Nut.

Push Nut.

1300

LH Rear Cage Cover Kit.

LH Rear Cage Cover Kit.

135

Bushing.

Bushing.

1400

RH Rear Cage Cover Kit.

RH Rear Cage Cover Kit.

160

Squadron Green, Front Hood.

Squadron Green, Front Hood.

20

Squadron Green, RH Front Fender.

Squadron Green, RH Front Fender.

2020

Central Skid Plate.

Central Skid Plate.

2030

Connection Plate.

Connection Plate.

2040

Rear Skid Plate.

Rear Skid Plate.

2045

Pop Rivet 3/16

Pop Rivet 3/16

2070

Rear Central Skid Plate.

Rear Central Skid Plate.

3000a

Mirror.

Mirror.

3000b

LH Mirror Support.

LH Mirror Support.

3000c

RH Mirror Support.

RH Mirror Support.

3000d

Plate.

Plate.

3000e

Mirror Rod.

Mirror Rod.

3000f

Torx Truss Screw M6 X 16.

Torx Truss Screw M6 X 16.

3000g

Hex. Flanged Screw M8 X 16, Scotch Grip.

Hex. Flanged Screw M8 X 16, Scotch Grip.

3000h

Snap Ring.

Snap Ring.

3000j

Hex. Flanged Screw M8 X 35.

Hex. Flanged Screw M8 X 35.

3000k

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

3000m

Torx Screw M6 X 25.

Torx Screw M6 X 25.

3000n

Hex. Elastic Flanged Nut M6.

Hex. Elastic Flanged Nut M6.

3000p

Flat Washer.

Flat Washer.

320

Grill.

Grill.

330

Clip.

Clip.

395

Screw M4 X 16.

Screw M4 X 16.

400

Deep Black, Front Fascia.

Deep Black, Front Fascia.

410

Torx Screw M8 X 30.

Torx Screw M8 X 30.

420

Washer.

Washer.

430

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

440

Grommet.

Grommet.

450

LH Front Reflector.

LH Front Reflector.

455

RH Front Reflector.

RH Front Reflector.

520

Extruded Panel Nut M6.

Extruded Panel Nut M6.

5400

LH Rear Deflector.

LH Rear Deflector.

5410

Flat Washer 8 mm, Nylon.

Flat Washer 8 mm, Nylon.

5450

RH Rear Deflector.

RH Rear Deflector.

550

Torx Screw K50 X 16.

Torx Screw K50 X 16.

555

Flat Washer M5.

Flat Washer M5.

860

LH Front Lateral Panel.

LH Front Lateral Panel.

870

RH Front Lateral Panel.

RH Front Lateral Panel.

940

Deep Black, LH Rear Body Panel.

Deep Black, LH Rear Body Panel.

941

Black Nylon Cap.

Black Nylon Cap.

950

Deep Black, RH Rear Body Panel.

Deep Black, RH Rear Body Panel.
