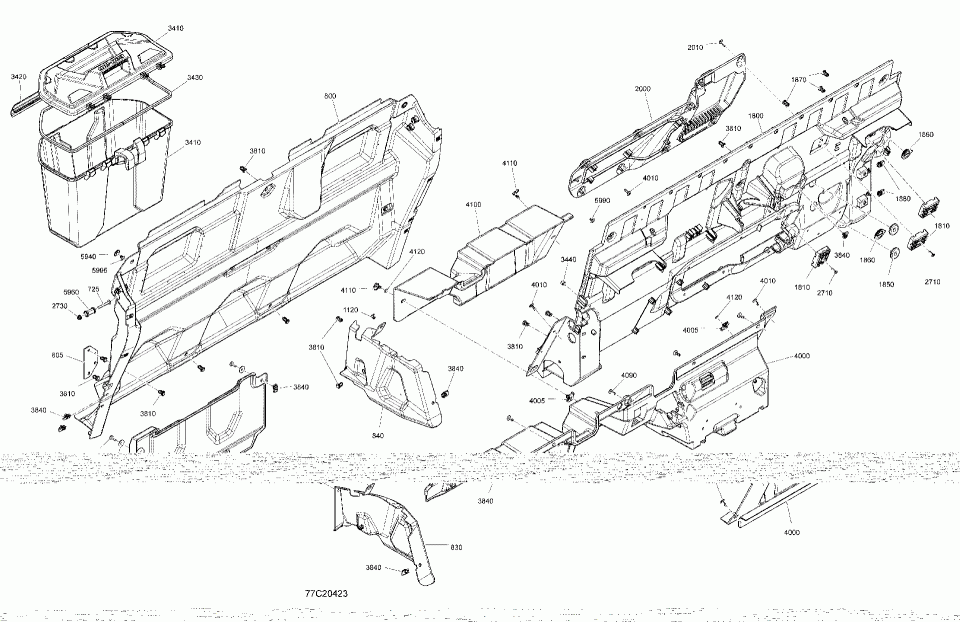

09- cab interior - back wall

Cam-am 004 - Traxter T MAX HD10 - T Regulation
Cam-am
#oem кодцена
1120
293150104
Pop Rivet 3/16
1800
707900715
Rear Upper Cab Panel.
1810
707900788
Hose Support.
1850
293720119
Grommet.
1860
293720119
Grommet.
1870
293150230
Tuflok Plastic Rivet.
2000
707900742
Rear Access Cover.
2010
250000712
Torx Screw M6 X 20.
2710
250000720
Torx Screw K50 X 16.
2730
250100199
Insert Half Hex Body M6 x 1.0.
3800
707900426
Rear Panel.
3810
293150230
Tuflok Plastic Rivet.
3840
250000957
Extruded Panel Nut M6.
4000
707900718
Rear Lower Cab Panel.
4005
705002651
Quarter Turn Nut.
4010
293150100
Pop Rivet 3/16
4080
250200162
Flat Washer M6.6 X 22.
4090
250000722
Torx Screw M6 X 20.
4100
707900743
Battery Cover.
4110
705002649
Quarter Turn Screw.
4120
708400286
Washer.
5940
292001663
Flat Washer 8 mm, Nylon.
5960
707900470
Spacer.
5990
293150103
Pop Rivet 3/16
5995
293150104
Pop Rivet 3/16
725
250000868
Torx Truss M6 X 50.
805
707900469
Plate.
830
707900443
LH Lower Cover.
840
707900444
RH Lower Cover.
