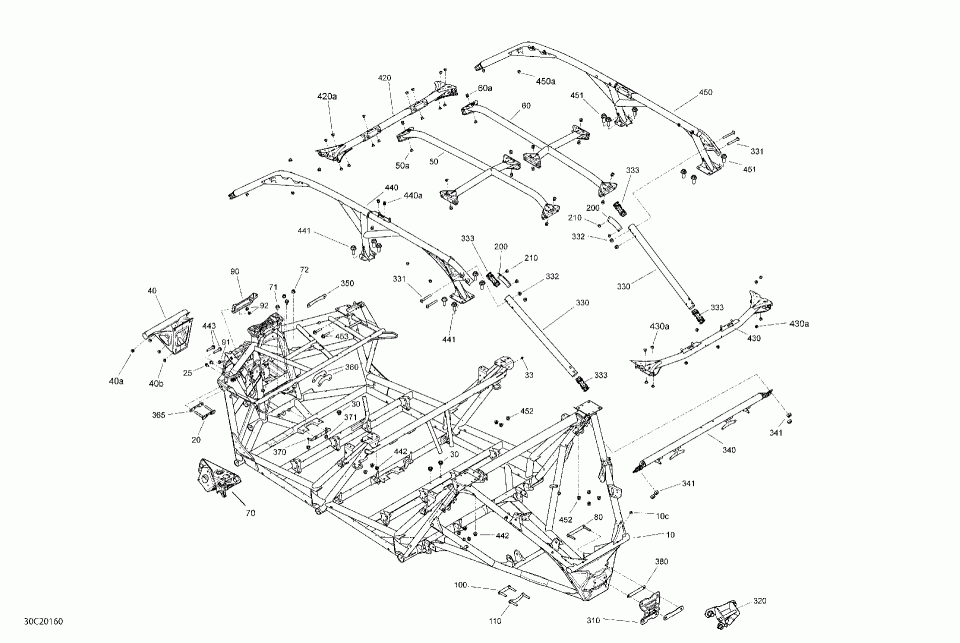

Рама

Cam-am 005 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - International
Cam-am
#oem кодцена
10
715006653
Deep Black, Frame. Model White - Mineral Gray Satin. Included 10 to 10c.
10
715006654
Hyper Silver, Frame. Model Hyper Silver - Dazzling Blue. Included 10 to 10c.
100
705206853
Front Plate.
10c
390402200
Pop Rivet 3/16
110
705206854
Rear Plate.
20
705207424
E-Coat Front Plate.
200
705205926
Black, LH Link Plate. Model White - Mineral Gray Satin.
200
705207308
Link Plate. Model Hyper Silver - Dazzling Blue.
210
293150102
Rivet 3/16
25
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
30
250100199
Insert Half Hex Body M6 x 1.0.
310
705205750
Rear Plate.
320
715004450
Black, Rear Attachement Hook.
33
250100199
Insert Half Hex Body M6 x 1.0.
330
705205751
Black, Rear Mount. Model White - Mineral Gray Satin.
330
705207382
Rear C-Member. Model Hyper Silver - Dazzling Blue.
331
250000901
Torx Truss M8 X 65.
332
250100025
Elastic Flanged Nut M8.
333
705205634
Sleeve.
340
705208518
Belt Bar.
341
232521416
Elastic Flanged Stop Nut M12.
350
705207425
Upper Arm Link.
360
705205295
Lower Arm Link.
365
705207438
Front Plate.
370
706203122
Support.
371
390402200
Pop Rivet 3/16
380
705206069
Front Upper Plate.
40
705205746
Black, Front Bumper. Model White - Mineral Gray Satin. Included 40 to 40b.
40
705207305
Front Bumper. Model Hyper Silver - Dazzling Blue. Included 40 to 40b.
40a
390402200
Pop Rivet 3/16
40b
390402200
Pop Rivet 3/16
420
705208578
Timeless Black, Front Cross Member. Model White - Mineral Gray Satin. Included 420 to 420a.
420
705208581
Hyper Silver, Front Cross Member. Model Hyper Silver - Dazzling Blue. Included 420 to 420a.
420a
390402200
Pop Rivet 3/16
430
705208585
Deep Black, Rear Cross Member. Model White - Mineral Gray Satin. Included 430 to 430a.
430
705208590
Hyper Silver, Rear Cross Member. Model Hyper Silver - Dazzling Blue. Included 430 to 430a.
430a
390402200
Pop Rivet 3/16
440
715006634
Deep Black, LH Cage. Model White - Mineral Gray Satin. Included 440 to 440a.
440
715006635
Hyper Silver, LH Cage. Model Hyper Silver - Dazzling Blue. Included 440 to 440a.
440a
390402200
Pop Rivet 3/16
441
233121466
Hex Flange Nut m12.
442
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
443
250000857
Screw Flange M12 X 60.
450
715006641
Deep Black, RH Cage. Model White - Mineral Gray Satin. Included 450 to 450a.
450
715006642
Hyper Silver, RH Cage. Model Hyper Silver - Dazzling Blue. Included 450 to 450a.
450a
390402200
Pop Rivet 3/16
451
233121466
Hex Flange Nut m12.
452
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
453
250000857
Screw Flange M12 X 60.
50
705206251
LH Added Cage. Model White - Mineral Gray Satin. Included 50 to 50a.
50
705207366
Hyper Silver, LH Added Cage. Model Hyper Silver - Dazzling Blue. Included 50 to 50a.
50a
390402200
Pop Rivet 3/16
60
705206410
RH Added Cage. Model White - Mineral Gray Satin. Included 60 to 60a.
60
705207367
Hyper Silver, RH Added Cage. Model Hyper Silver - Dazzling Blue. Included 60 to 60a.
60a
390402200
Pop Rivet 3/16
70
705206924
DPS Support.
71
207581244
Hex. Flanged Screw M8 X 12, Scotch Grip.
72
233281416
Hex. Elastic Flanged Nut M8.
80
705206852
Rear Upper Plate.
90
705206877
Stifner Plate.
91
207661654
Hex. Flanged Screw M6 X 16.
92
233261494
Hex. Elastic Flanged Nut M6.
