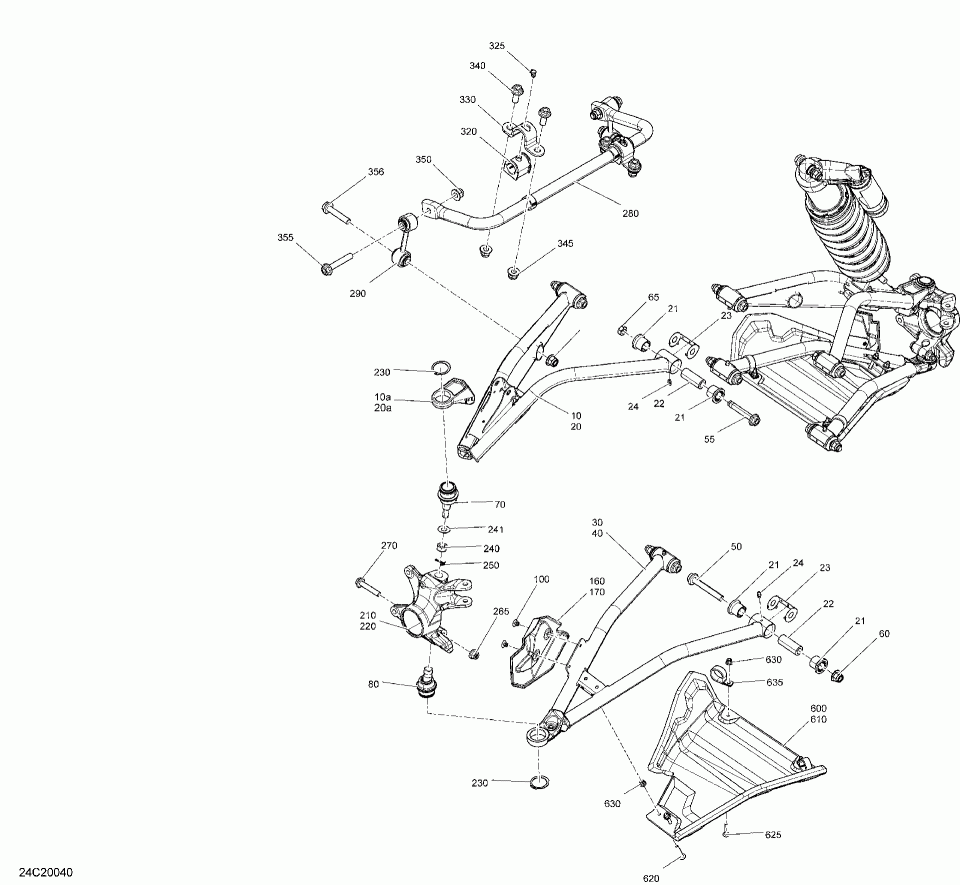

Передняя подвеска

Cam-am 005 - Maverick Sport 1000R - XRC - North America
Cam-am
#oem кодцена
10
706204061
Orange Crush, LH Suspension Arm. Includes 10 to 10a.
100
293150104
Pop Rivet 3/16
10a
706203329
LH Upper Front Suspension Arm.
160
706202135
RH Protector.
170
706202134
LH Protector.
20
706204062
Orange Crush, RH Upper Suspension Arm. Includes 20 to 20a.
20a
706203330
RH Upper Front Suspension Arm.
21
706201659
Cushion.
210
706202842
LH Front Knuckle.
22
706202257
Interior Bushing.
220
706202844
RH Front Knuckle.
23
706202300
Wear Plate.
230
293370035
Circlip.
24
408200700
Grease Fitting.
240
250100099
Nut M12.
241
250200086
Flat Washer.
250
211400017
Cotter Pin.
265
233201436
Hex. Flanged Elastic Nut M10.
270
207605546
Hex. Flanged Screw M10 X 55.
290
706202937
Swaybar Double Link.
30
706203341
Black, LH Lower Front Suspension Arm.
320
706203153
Bushing.
325
293550056
Grease Fitting 90°.
330
706203437
Clamp.
340
250000951
Screw-Hex.Flange DIN.6921.
345
233221466
Elastic Flange Nut M12.
350
233221466
Elastic Flange Nut M12.
355
250000858
Hexagonal Flanged Screw M12 X 70.
356
250000857
Screw Flange M12 X 60.
40
706203342
Black, RH Lower Front Suspension Arm.
50
250000859
Screw Flange M12 X 85.
55
250000985
Hex Flanged Screw M12x1.75.
60
233221466
Elastic Flange Nut M12.
600
706203566
LH A-Arm Protector.
610
706203567
RH A-Arm Protector.
620
250000749
Torx Truss Screw M6 X 50.
625
250000842
Torx Screw M6 X 30 Stainless.
630
233261494
Hex. Elastic Flanged Nut M6.
635
293750064
Open Clamp.
65
250100204
Hex. Nut M12.
70
706203084
Ball Joint.
80
706202045
Ball Joint.
