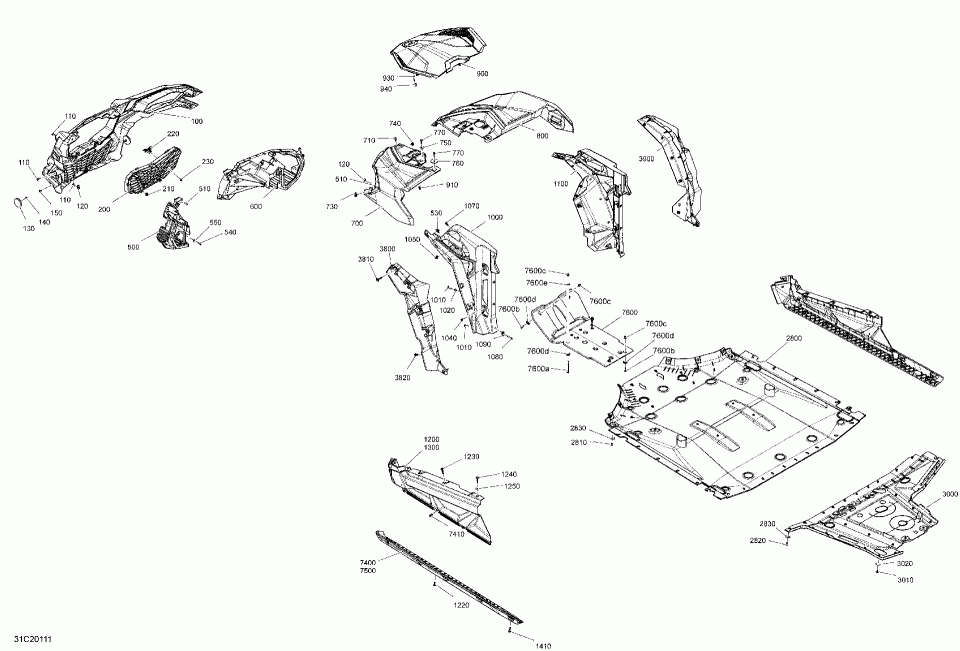

09- body - front section - orange crush

Cam-am 005 - Maverick Sport 1000R - XRC - North America
Cam-am
#oem кодцена
100
705011317
Front Fascia.
1000
705011323
LH Front Mudguard.
1010
250000712
Torx Screw M6 X 20.
1020
233261494
Hex. Elastic Flanged Nut M6.
1040
250000721
Torx Truss Screw M6 X 16.
1050
517306478
Clip.
1070
293150230
Tuflok Plastic Rivet.
1080
250000867
Torx-truss Hex. Screw M6X35, Nylon Prot.
1090
250000957
Extruded Panel Nut M6.
110
250000721
Torx Truss Screw M6 X 16.
1100
705011324
RH Front Mudguard.
120
250000957
Extruded Panel Nut M6.
1200
705012883
LH Rocker Panel.
1220
293150101
Pop Rivet 3/16”.
1230
250000867
Torx-truss Hex. Screw M6X35, Nylon Prot.
1240
250000840
Torx-Screw Truss Head PT.K50 X 40.
1250
250200162
Flat Washer M6.6 X 22.
130
705011222
Amber Reflector.
1300
705012884
RH Rocket Panel.
140
233251494
Elastic Flanged Nut M5.
1410
207662554
Hex. Flanged Screw M6 X 25.
150
250000748
Torx Screw M6 X 45.
200
705011318
Fascia Removable Grid.
210
517306478
Clip.
220
705012245
Grill Logo.
230
250000725
Screw M4 X 16.
2800
705014696
Front Skid Plate.
2810
293150087
Pop Rivet 3/16”.
2820
293150087
Pop Rivet 3/16”.
2830
250200191
Flat Washer M6.
3000
705014697
Rear Skid Plate.
3010
293150087
Pop Rivet 3/16”.
3020
250200191
Flat Washer M6.
3800
705011325
LH Front 60
3810
250000840
Torx-Screw Truss Head PT.K50 X 40.
3820
293150230
Tuflok Plastic Rivet.
3900
705011326
RH Front 60
500
705011319
LH Headlamp Structure.
510
250000722
Torx Screw M6 X 20.
530
250000957
Extruded Panel Nut M6.
540
250000720
Torx Screw K50 X 16.
550
234062670
Flat Washer, Stainless.
600
705011320
RH Headlamp Structure.
700
705014293
Carbon Black, LH Front Fender.
710
250000721
Torx Truss Screw M6 X 16.
730
250000957
Extruded Panel Nut M6.
740
517306478
Clip.
7400
705014191
Orange Crush, LH Rock Slider.
7410
293150101
Pop Rivet 3/16”.
750
250200162
Flat Washer M6.6 X 22.
7500
705014192
Orange Crush, RH Rock Slider.
760
705003841
Support Plate.
7600
715005400
Front Skid Plate Kit. Includes 7600 to 7600e.
7600a
207068044
Screw Hex. M6 X 80.
7600b
207162044
Hex. Screw M6 X 20.
7600c
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
7600d
503191820
Wheel Cup M6.
7600e
234062410
Flat Washer 6 mm.
770
250000722
Torx Screw M6 X 20.
800
705014294
Carbon Black, RH Front Fender.
900
705011322
Removable Hood.
910
517306478
Clip.
930
250000807
Torx Truss Screw M6 X 25.
940
705502616
Bushing.
