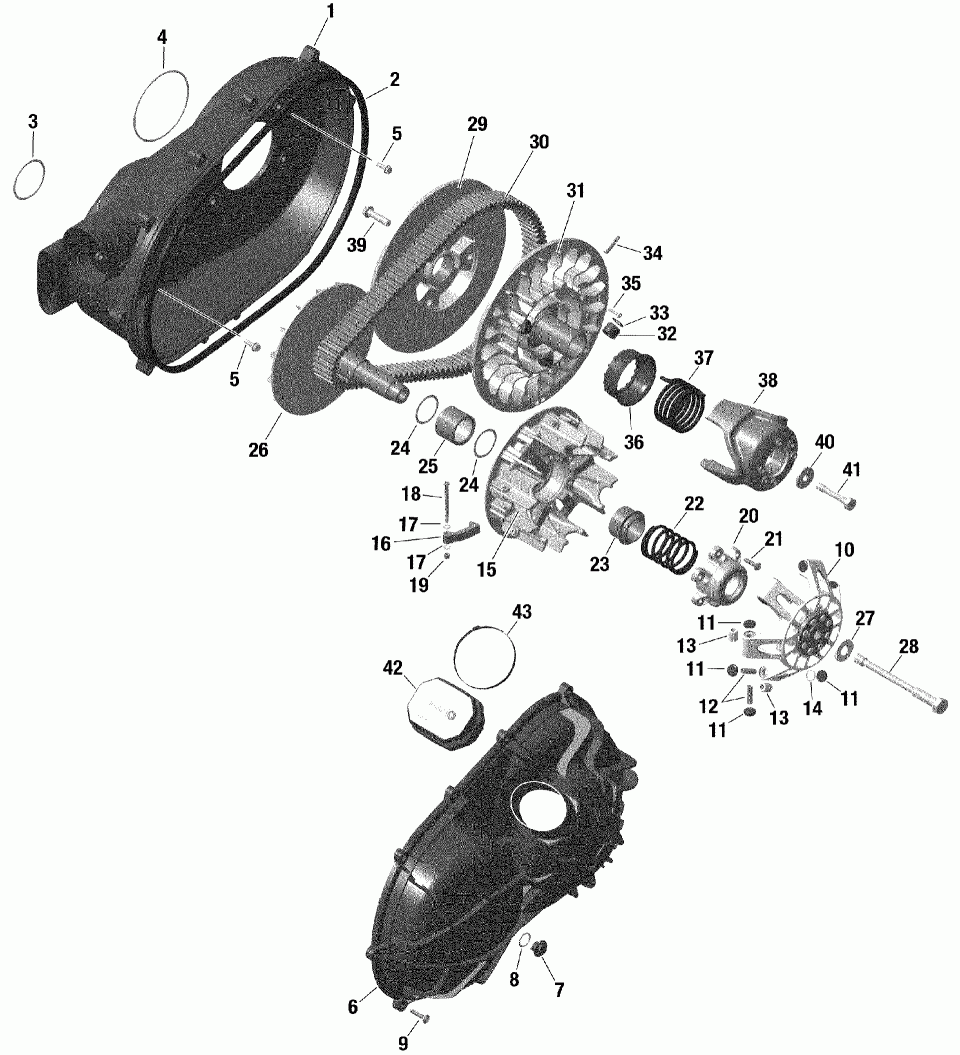

01- engine - transmission - hd10

Cam-am 006 - Defender MAX HD10 - International
Cam-am
#oem кодцена
1
420212600
CVT Air Guide.
11
420281296
Slider Shoe Set.
12
417223257
Roller Axle.
13
417223767
Roller.
14
420230456
КОЛЬЦО
16
420248688
Lever Set.
2
420450400
Gasket.
21
420841549
Flanged Torx Screw M6 X 25.
22
420638119
Compression Spring.
23
420427210
Spring Seat.
24
420427220
Washer.
25
420832351
Needle Roller Bearing With Sleeves.
27
420245690
Washer.
28
420841161
Hexagonal Screw M14X 165.
3
420430408
КОЛЬЦО
30
422280652
Drive Belt.
32
417127016
Roller.
33
420227946
Thrust Washer.
34
420629192
Bolt.
35
420841531
Torx Screw M4 X 20.
36
420427805
Spring Support.
37
420638124
Compression Spring.
38
420280758
Cam.
39
420841711
Torx Flange Screw M10 X 40.
4
420450431
КОЛЬЦО
40
420427243
Collar Washer.
41
420441990
Hexagonal Screw M10X 61.
42
420201940
Closure Cap.
43
420251485
Ear Clamp 87.3-90.5MM.
5
420441311
Hex.Screw M6 X 20.
6
420212503
Variator Cover.
7
420441820
Cap.
8
420250052
КОЛЬЦО
9
420441575
Torx Screw 6X30.
