05- transmission - 610

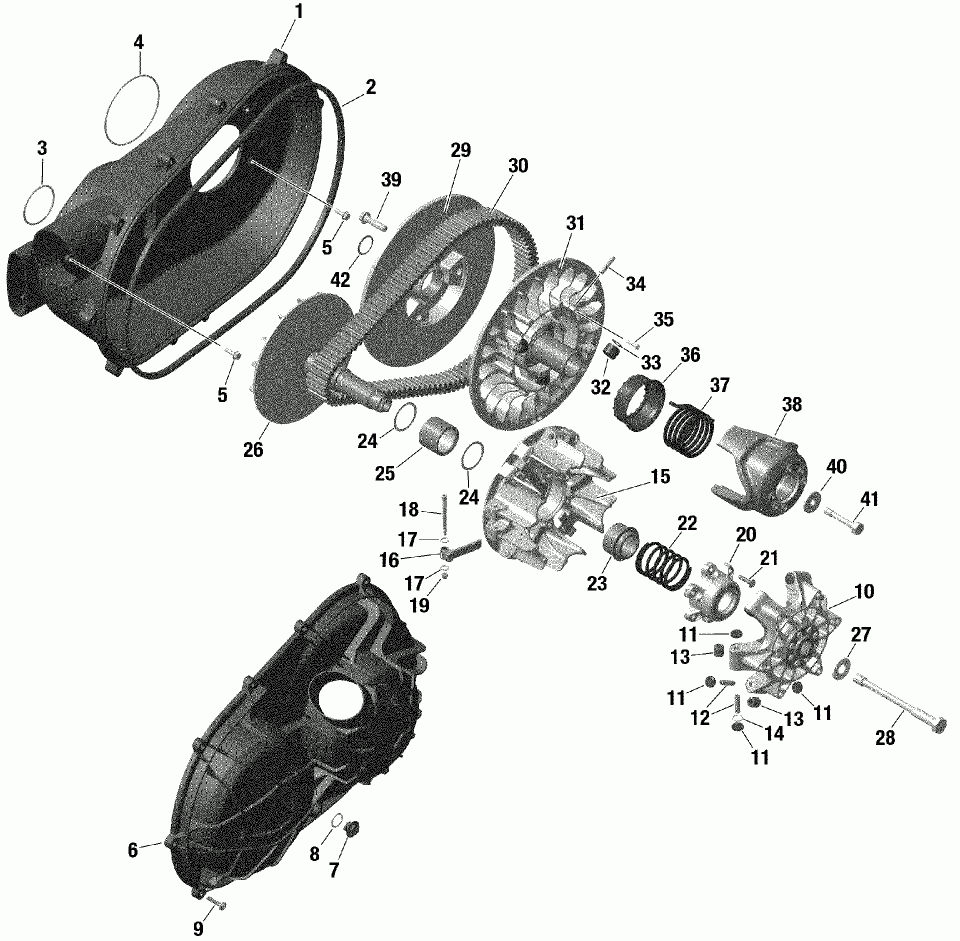

Cam-am 006 - Maverick Sport 1000R - XXC - North America
Cam-am
#oem кодцена
1
420212600
CVT Air Guide.
11
420281296
Slider Shoe Set.
12
417223257
Roller Axle.
13
420229991
Roller Thrust.
14
420230456
КОЛЬЦО
16>19
420248661
Lever Set.
2
420450400
Gasket.
20
420280616
Bearing Cover.
21
420841549
Flanged Torx Screw M6 X 25.
22
420638115
Compression Spring.
23
420427211
Spring Retainer.
24
420427220
Washer.
25
420832351
Needle Roller Bearing With Sleeves.
27
420245690
Washer.
28
420841161
Hexagonal Screw M14X 165.
3
420430408
КОЛЬЦО
30
417300383
Drive Belt.
32
417127016
Roller.
33
250200009
Lock Washer 8 mm.
34
417127294
Pivot Stud.
35
420841531
Torx Screw M4 X 20.
36
417127116
Swivel Abutment.
37
417127039
Black Spring.
38
420280755
Cam.
39
420841711
Torx Flange Screw M10 X 40.
4
420450431
КОЛЬЦО
40
420427240
Collar Washer.
41
420441990
Hexagonal Screw M10X 61.
5
420441311
Hex.Screw M6 X 20.
6
420212503
Variator Cover.
7
420441820
Cap.
8
420250052
КОЛЬЦО
9
420441575
Torx Screw 6X30.
