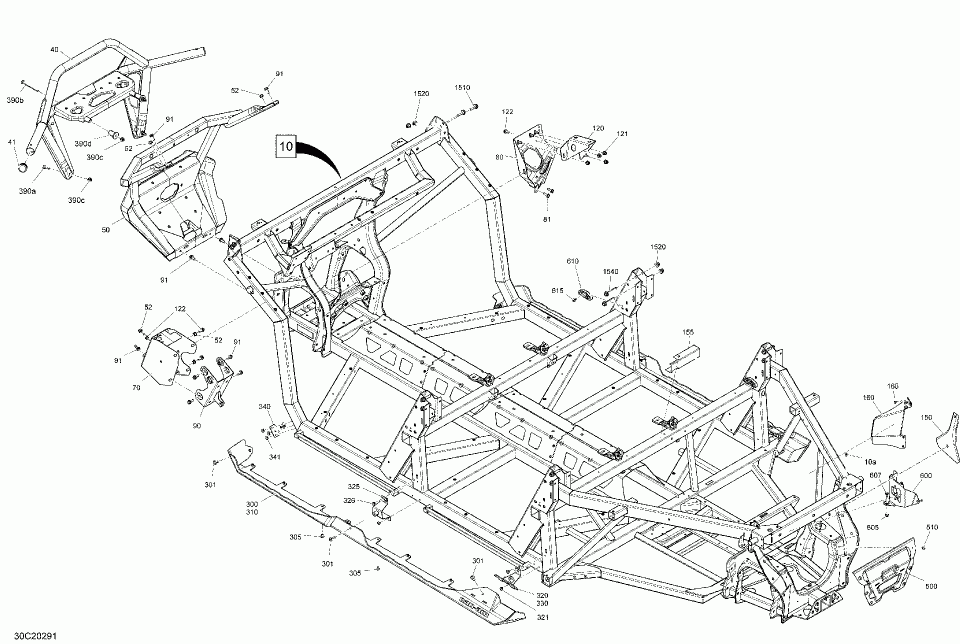

Рама

Cam-am 008 - Defender MAX HD10 - XMR - North America
Cam-am
#oem кодцена
10
715006682
Black, Frame Kit.
10a
390402200
Pop Rivet 3/16
120
705208742
Support.
121
233281414
Hex. Flanged Elastic Nut M8.
122
207682044
Hex. Flanged Screw M8 X 20.
150
705014849
Heat Shield.
1510
250000855
Hex. Flanged Screw M10 X 35.
1520
233201436
Hex. Flanged Elastic Nut M10.
1540
207606046
Hex. Flanged Screw M10 X 60.
155
705015496
Heat Shield.
160
707002717
Heat Shield.
165
293150092
Pop Rivet 3/16”.
300
705208715
Deep Black, LH Guard Panel.
301
250000874
Torx Truss M8 X 25.
305
293150108
Pop Rivet 3/16”.
310
705208716
Deep Black, RH Guard Panel.
320
705206342
LH Rock Slider Support.
321
293150104
Pop Rivet 3/16
325
705207220
Support Guard.
326
293150104
Pop Rivet 3/16
330
705206343
RH Rock Slider Support.
340
705208661
Front Guard Support.
341
293150104
Pop Rivet 3/16
50
705207588
Deep Black, Front Bumper.
500
705207753
Rear Chassis Reinforcement.
51
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip.
510
293150104
Pop Rivet 3/16
52
233281414
Hex. Flanged Elastic Nut M8.
600
710006644
Voltage Regulator Support.
605
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
607
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip.
610
705208203
Spacer.
615
293150104
Pop Rivet 3/16
70
705208747
Module Support.
80
705208741
Power Steering Support.
81
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip.
90
715005429
Support Steering Column.
91
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip.
