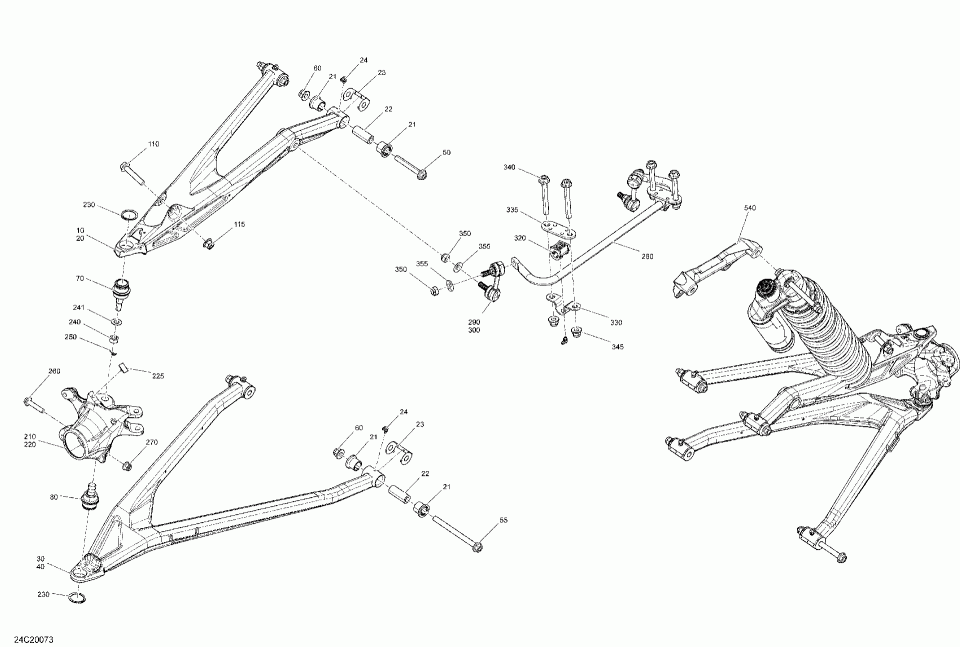

07- front suspension - xrs

Cam-am 008 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - North America
Cam-am
#oem кодцена
10
706204102
Blue, LH Upper Suspension Arm. Model Blue.
10
703501053
Deep Black, LH Upper Suspension Arm. Model Timeless Black.
10
703501060
Liquid Gold, LH Upper Suspension Arm. Model Hyper Silver.
110
250000857
Screw Flange M12 X 60.
115
233221466
Elastic Flange Nut M12.
20
706204103
Blue, RH Upper Suspension Arm. Model Blue.
20
703501056
Deep Black, RH Upper Suspension Arm. Model Timeless Black.
20
703501062
Liquid Gold, RH Upper Suspension Arm. Model Hyper Silver.
21
706201659
Cushion.
210
706202759
LH Knuckle.
22
706202257
Interior Bushing.
220
706202760
RH Knuckle.
225
706202502
Wear Plate.
23
706202300
Wear Plate.
230
293370035
Circlip.
24
293550056
Grease Fitting 90°.
240
250100099
Nut M12.
241
250200086
Flat Washer.
250
211400017
Cotter Pin.
260
207605044
Hex. Flanged Screw M10 X 50.
270
233201436
Hex. Flanged Elastic Nut M10.
290
706203611
LH Stabilizer Bar Link.
30
706202706
Black, LH Lower Arm.
300
706203612
RH Stabilizer Bar Link.
320
706203954
Stabilizer Bar Bushing.
325
293550056
Grease Fitting 90°.
330
706202460
Clamp.
335
706202551
Plate Support.
340
250000876
Hex. Flanged Screw M12 X 95.
345
233221466
Elastic Flange Nut M12.
350
232521416
Elastic Flanged Stop Nut M12.
355
250200167
Conical Spring Washer M12.
40
706202707
Black, RH Lower Arm.
50
250000859
Screw Flange M12 X 85.
540
706202708
Black Link. Black Hood.
540
706203588
Link. Hyper Silver Hood.
55
250000861
Screw Flange M12 X 145.
60
233221466
Elastic Flange Nut M12.
70
706203084
Ball Joint.
80
706202045
Ball Joint.
