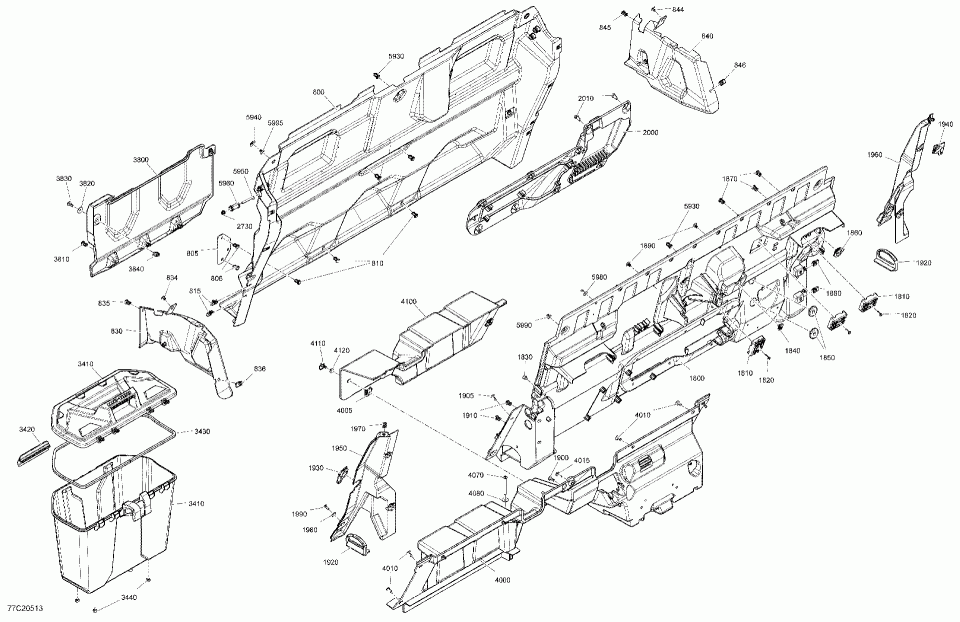

09- cab interior - back wall

Cam-am 009 - Defender MAX HD10 - CAB - North America
Cam-am
#oem кодцена
1800
707900715
Rear Upper Cab Panel.
1810
707900788
Hose Support.
1820
250000720
Torx Screw K50 X 16.
1830
293830005
Rubber Bumper.
1840
250000957
Extruded Panel Nut M6.
1850
293720119
Grommet.
1860
293720119
Grommet. No Evap.
1860
293000125
Plug. Evap.
1870
293150230
Tuflok Plastic Rivet. No Evap.
1880
250000957
Extruded Panel Nut M6. Evap.
1890
414644300
Black, Dart.
1900
250000722
Torx Screw M6 X 20.
1905
293150100
Pop Rivet 3/16
1910
293150230
Tuflok Plastic Rivet.
1920
707900774
Panel Trim.
1930
707900775
LH Panel Trim.
1940
707900776
RH Panel Trim.
1950
707900766
LH Upper Deflector.
1960
707900767
RH Upper Deflector.
1970
293150230
Tuflok Plastic Rivet.
1980
234062670
Flat Washer, Stainless.
1990
250000720
Torx Screw K50 X 16.
2000
707900742
Rear Access Cover.
2010
250000712
Torx Screw M6 X 20.
2730
250100199
Insert Half Hex Body M6 x 1.0.
3410
715003314
Storage Box.
3420
269501945
Clip.
3430
293250453
Neoprene Seal.
3440
293830005
Rubber Bumper.
3800
707900426
Rear Panel.
3810
293150230
Tuflok Plastic Rivet.
3820
250200162
Flat Washer M6.6 X 22.
3830
250000722
Torx Screw M6 X 20.
3840
250000957
Extruded Panel Nut M6.
4000
707900718
Rear Lower Cab Panel.
4005
705002651
Quarter Turn Nut.
4010
293150100
Pop Rivet 3/16
4015
250000722
Torx Screw M6 X 20.
4070
250000954
Torx Screw M6 X 70.
4080
250200162
Flat Washer M6.6 X 22.
4100
707900743
Battery Cover.
4110
705002649
Quarter Turn Screw.
4120
708400286
Washer.
5930
293150230
Tuflok Plastic Rivet.
5940
292001663
Flat Washer 8 mm, Nylon.
5950
250000868
Torx Truss M6 X 50.
5960
707900470
Spacer.
5980
293150100
Pop Rivet 3/16
5990
293150103
Pop Rivet 3/16
5995
293150104
Pop Rivet 3/16
805
707900469
Plate.
806
293150230
Tuflok Plastic Rivet.
810
293150230
Tuflok Plastic Rivet.
815
250000957
Extruded Panel Nut M6.
830
707900443
LH Lower Cover.
834
293150104
Pop Rivet 3/16
835
293150230
Tuflok Plastic Rivet.
836
250000957
Extruded Panel Nut M6.
840
707900444
RH Lower Cover.
844
293150104
Pop Rivet 3/16
845
293150230
Tuflok Plastic Rivet.
846
250000957
Extruded Panel Nut M6.
