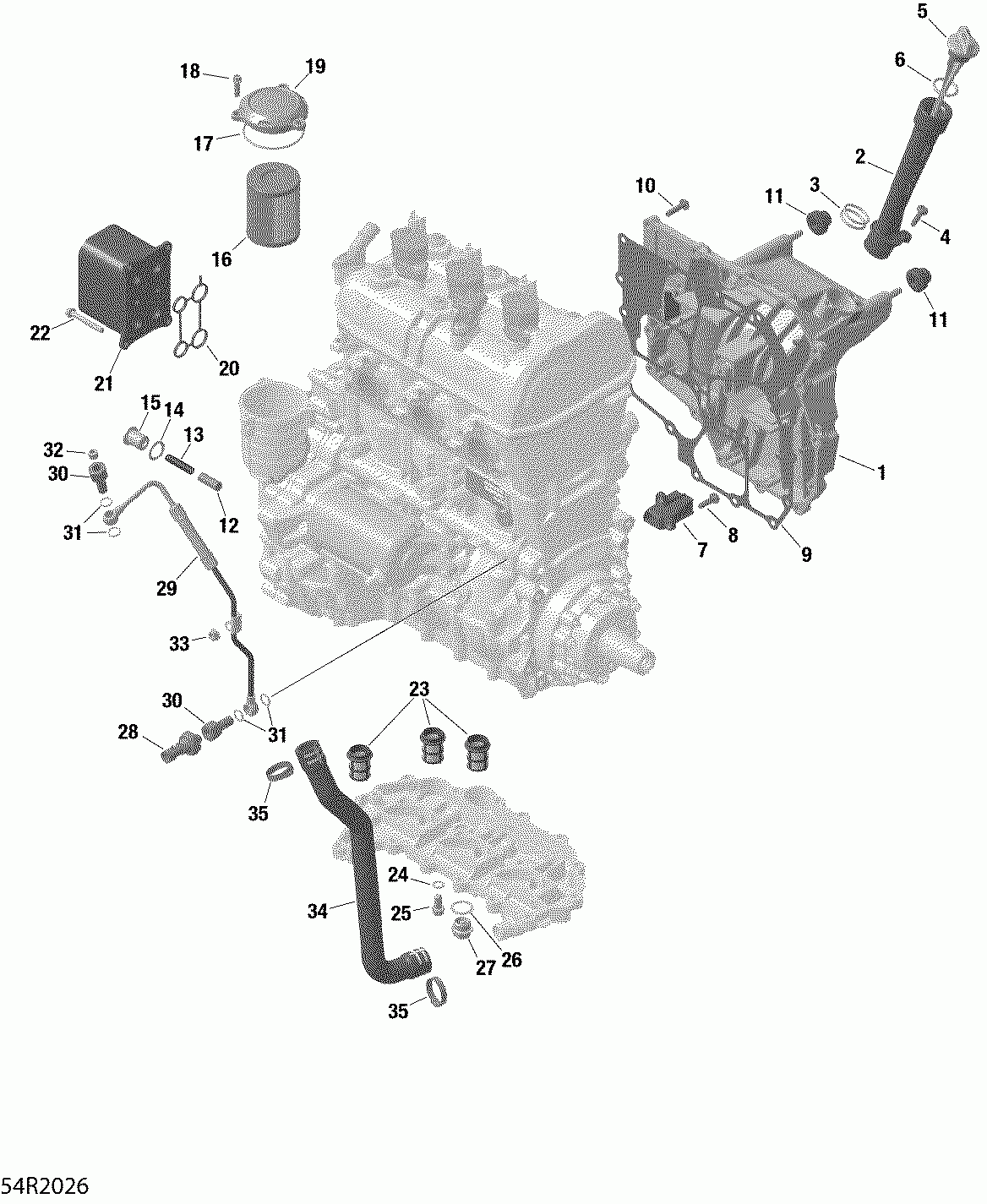

Масляная система

Cam-am 009 - Maverick MAX Turbo RR - XMR - North America
Cam-am
#oem кодцена
1
420656706
Oil Sump Cover.
10
420841548
Flanged Torx Screw M6 X 25.
11
420860150
Rubber Grommet.
12
420256518
Pressure Regulating Piston.
13
420239445
Spring.
14
420430623
Gasket Ring.
15
420441373
Plug Screw.
16
420956123
Oil Filter.
17
420230920
КОЛЬЦО
18
420440207
Flanged Torx Screw M6 X 20.
19
420612135
Oil Filter Cover.
2
420656901
Oil Filler Tube.
20
420431870
Gasket.
21
420656689
Oil Water Heat Exchanger.
22
420440324
Flanged Torx Screw M6 X 45.
23
420656680
Oil Sieve.
24
420950141
Sealing Ring.
25
420440852
Flanged Torx Screw M8 X 16.
26
420552280
КОЛЬЦО
27
420840277
Drain Plug M18 X 1.5.
28
420256915
Oil Pressure Switch.
29
420456451
Pressure Oil Line.
3
420430440
КОЛЬЦО
30
420947580
Spacer.
31
420230150
Oil Seal.
32
420641323
Plug Screw M10 X 1.
33
420842890
Hex Nut M6-10.
34
420201743
Molded Hose.
35
420251578
Clamp.
4
420441383
Flanged Torx Screw M6 X 20.
5
420856668
Oil Dipstick.
6
420631640
КОЛЬЦО
7
420456260
Oil Suction Pipe.
8
420441383
Flanged Torx Screw M6 X 20.
9
420431845
Gasket.
