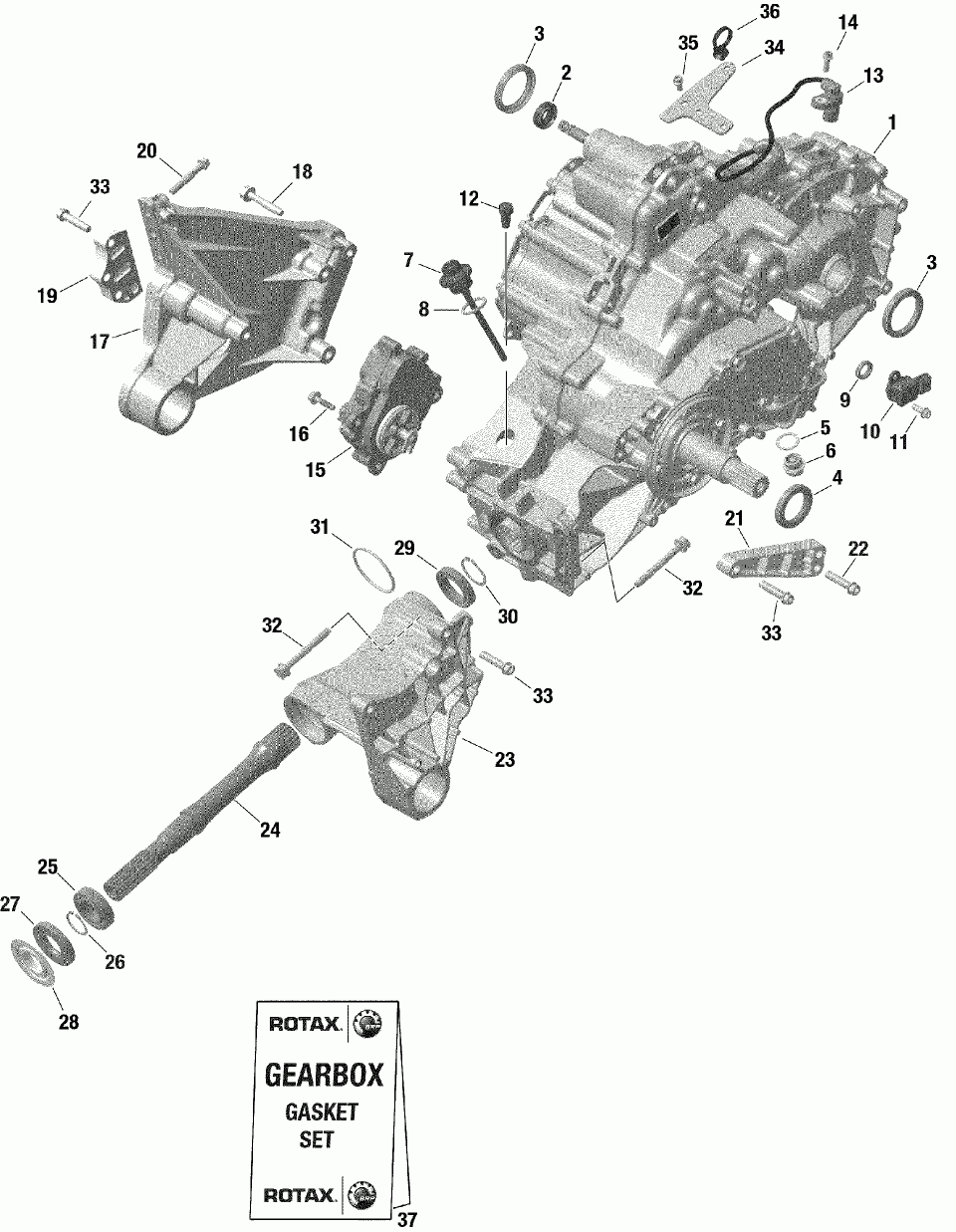

05- gear box and components

Cam-am 009 - Maverick MAX Turbo RR - XMR - North America
Cam-am
#oem кодцена
1
420686506
Gear Box. Ref Bulletin 2020-8.
10
420666850
Angle Rotation Sensor.
11
420440162
Flanged Torx Screw M6 X 16.
12
420241905
Plug Screw M10X10.
13
420265621
Speed Sensor.
14
420440162
Flanged Torx Screw M6 X 16.
15a
293300117
КОЛЬЦО
15b
415129175
Shifting Fork.
15c
293370042
Circlip.
16
420441951
Collar Screw M6 x 25.
17
420212638
Engine Bracket Rear Mag Side.
18
420441931
Collar Screw M8 x 45.
19
420212639
Engine Bracket Front Mag Side.
2
420250452
Oil Seal.
20
420641208
Hex. Flanged Screw M8 X 45.
21
420212640
Gearbox Bracket.
22
420440861
Flanged Torx Screw M8 X 35.
23
420212631
Engine Bracket PTO Side.
24
420637600
Drive Shaft.
25
420232341
Ball Bearing.
26
420945810
Circlip.
27
420831178
Oil Seal.
28
420626990
Cover.
29
420632275
Ball Bearing.
3
420230137
Oil Seal.
30
420945610
Retaining Ring.
31
420450391
КОЛЬЦО
32
420440403
Flanged Torx Screw M8 X 65.
33
420440861
Flanged Torx Screw M8 X 35.
34
420651042
Support Plate.
35
420440162
Flanged Torx Screw M6 X 16.
36
420951346
Tie Rap 212MM.
37
420686602
Gasket Set.
4
420950089
Oil Seal.
5
420552280
КОЛЬЦО
6
420840277
Drain Plug M18 X 1.5.
7
420256806
Oil Dipstick.
8
420631640
КОЛЬЦО
9
420931802
Oil Seal.
