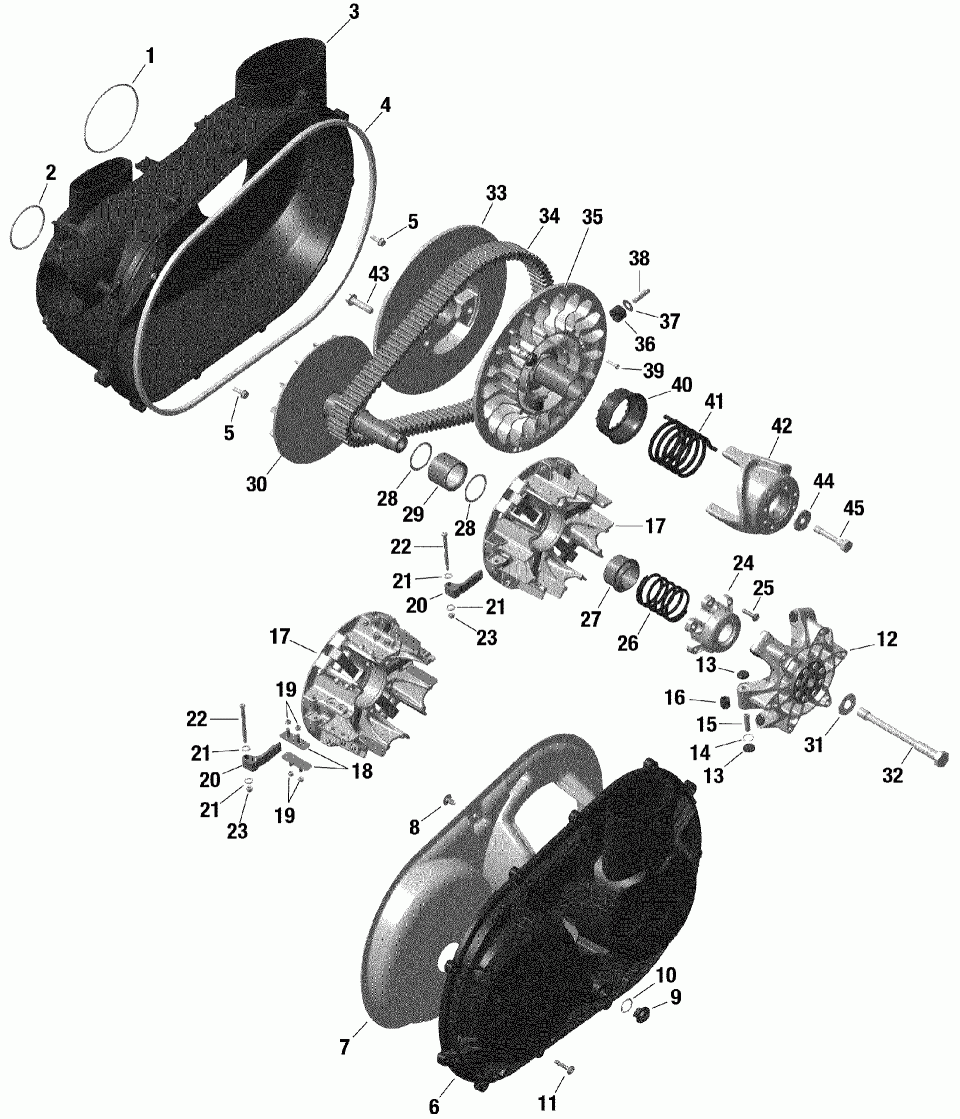

Трансмиссия

Cam-am 009 - Maverick MAX Turbo RR - XMR - North America
Cam-am
#oem кодцена
1
420450431
КОЛЬЦО
10
420250055
КОЛЬЦО
11
420441575
Torx Screw 6X30.
13
420281296
Slider Shoe Set.
14
420230456
O-Ring. Turbo, Turbo R.
14
420230457
O-Ring. Turbo RR.
15
417223257
Roller Axle.
16
420229991
Roller Thrust.
18
420651765
Slide Plate. Turbo R, Turbo RR.
19
420842032
Lock Nut M5. Turbo R, Turbo RR.
2
420450520
КОЛЬЦО
20>23
420248661
Centrifugal Lever Kit. Turbo.
20>23
420248658
Centrifugal Lever Kit. Turbo R.
20>23
420248644
Centrifugal Lever Kit. Turbo RR.
24
420280616
Bearing Cover. Turbo.
24
420280618
Bearing Cover. Turbo RR.
24
420280617
Bearing Cover. Turbo R.
25
420841549
Flanged Torx Screw M6 X 25.
26
420638117
Compression Spring.
27
420427211
Spring Retainer.
28
420427220
Washer.
29
420832351
Needle Roller Bearing With Sleeves.
3
420212605
CVT Air Guide.
31
420245690
Washer.
32
420841161
Hexagonal Screw M14X 165.
34
422280652
Drive Belt.
36
417127016
Roller.
37
420227946
Thrust Washer.
38
420629192
Bolt.
39
420841531
Torx Screw M4 X 20.
4
420450405
Gasket.
40
420427805
Spring Support.
41
420638124
Compression Spring. Turbo.
41
420638126
Spring. Turbo R, Turbo RR.
43
420841711
Torx Flange Screw M10 X 40.
44
420427243
Collar Washer.
45
420441990
Hexagonal Screw M10X 61.
5
420441311
Hex.Screw M6 X 20.
6
420212508
Variator Cover.
7
420897385
Insulating Mat.
8
420651816
Trim Button.
9
420441820
Cap.
