09- cab interior - dashboard Оригинальные запчасти для мотовездеходов UTV Cam-am 011 - Defender PRO HD10 - North America (2020)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Оригинальные запчасти для мотовездеходов UTV
Cam-am
2020
011 - Defender PRO HD10 - North America

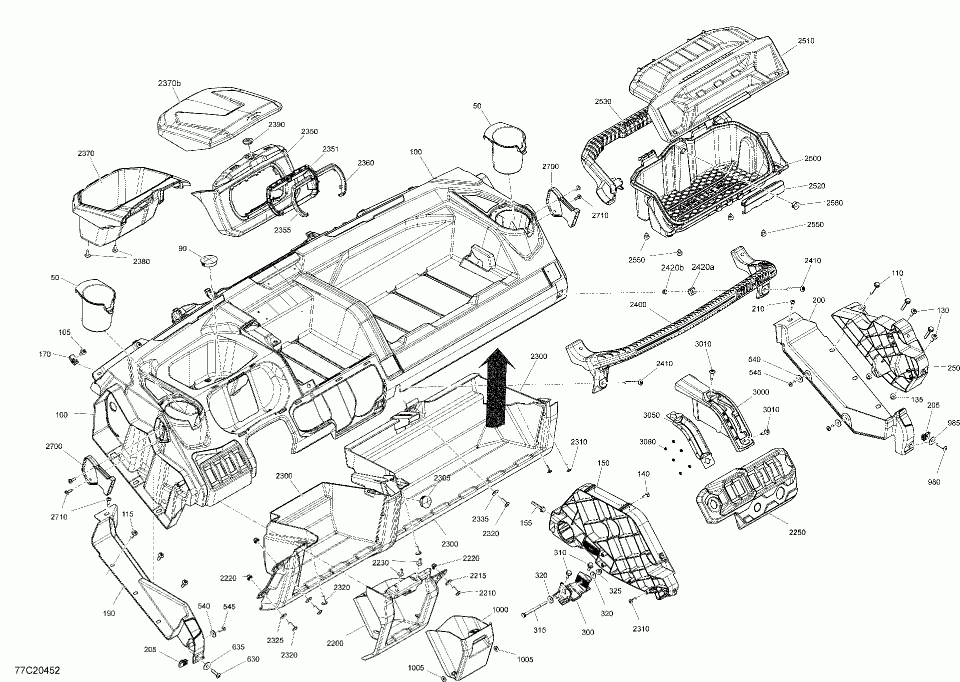

09- cab interior - dashboard
09- cab interior - dashboard

09- cab interior - dashboard

Cam-am 011 - Defender PRO HD10 - North America

09- cab interior - dashboard

#

oem код

название

цена

1000

Drawer.

Drawer.

1005

КОЛЬЦО

КОЛЬЦО

105

Torx Truss Screw M6 X 16.

Torx Truss Screw M6 X 16.

110

Hex. Flanged Screw M6 X 40, Scotch Grip.

Hex. Flanged Screw M6 X 40, Scotch Grip.

115

Torx Screw M6 X 20.

Torx Screw M6 X 20.

130

Torx Screw M6 X 20.

Torx Screw M6 X 20.

135

Hex. Elastic Flange Nut M6.

Hex. Elastic Flange Nut M6.

140

Torx Screw K50 X 16.

Torx Screw K50 X 16.

150

Dash Support.

Dash Support.

155

Screw H Flange S.Grip M6 X 35.

Screw H Flange S.Grip M6 X 35.

170

Extruded Panel Nut M6.

Extruded Panel Nut M6.

190

LH Upper Deflector.

LH Upper Deflector.

200

RH Upper Deflector.

RH Upper Deflector.

205

Extruded Panel Nut M6.

Extruded Panel Nut M6.

210

Torx Screw K50 X 16.

Torx Screw K50 X 16.

2200

LH Lower Dash.

LH Lower Dash.

2210

Torx Screw M6 X 20.

Torx Screw M6 X 20.

2215

Flat Washer, Stainless.

Flat Washer, Stainless.

2220

Insert Half Hex Body M6 x 1.0.

Insert Half Hex Body M6 x 1.0.

2230

Screw PT Type K-50 X 16.

Screw PT Type K-50 X 16.

2250

Switch Support.

Switch Support.

2300

RH Lower Dash.

RH Lower Dash.

2305

Cap.

Cap.

2310

Torx Screw K50 X 16.

Torx Screw K50 X 16.

2320

Torx Screw M6 X 20.

Torx Screw M6 X 20.

2325

Flat Washer, Stainless.

Flat Washer, Stainless.

2335

Flat Washer, Stainless.

Flat Washer, Stainless.

2350

Gauge Support. Except Package XT.

Gauge Support. Except Package XT.

2350

Gauge Support. Package XT.

Gauge Support. Package XT.

2351

Cluster Cap.

Cluster Cap.

2355

Deep Black, LH Trim Gauge.

Deep Black, LH Trim Gauge.

2360

Deep Black, RH Trim Gauge.

Deep Black, RH Trim Gauge.

2380

Screw PT Type K-50 X 16.

Screw PT Type K-50 X 16.

2390

Grommet.

Grommet.

2400

Passenger Handhold.

Passenger Handhold.

2410

Torx Screw M6 X 60.

Torx Screw M6 X 60.

2420b

Hex. Elastic Stop Nut M6.

Hex. Elastic Stop Nut M6.

250

RH Support.

RH Support.

2500

Glove Box Base.

Glove Box Base.

2510

Glove Box Cover.

Glove Box Cover.

2520

Clip.

Clip.

2530

Handle.

Handle.

2550

Rubber Bumper.

Rubber Bumper.

2560

Cap.

Cap.

2700

Safety Net Link.

Safety Net Link.

2710

Torx Screw K50 X 16.

Torx Screw K50 X 16.

300

Clamp.

Clamp.

3000

Shifter Gate.

Shifter Gate.

3010

Torx Screw M6 X 25.

Torx Screw M6 X 25.

3050

Shifter Gate Deflector.

Shifter Gate Deflector.

3060

Push Nut.

Push Nut.

310

Hex. Flanged Screw M6 X 16, Scotch Grip.

Hex. Flanged Screw M6 X 16, Scotch Grip.

315

Screw Hex. M6 X 80.

Screw Hex. M6 X 80.

320

Flat Washer, Stainless.

Flat Washer, Stainless.

325

Hex. Elastic Flanged Nut M6.

Hex. Elastic Flanged Nut M6.

50

Cup Holder.

Cup Holder.

540

Flat Washer, Stainless.

Flat Washer, Stainless.

545

Torx Screw K50 X 16.

Torx Screw K50 X 16.

630

Torx Truss Screw M6 X 25.

Torx Truss Screw M6 X 25.

635

Flat Washer M6.6 X 22.

Flat Washer M6.6 X 22.

90

Plug.

Plug.

980

Torx Truss Screw M6 X 25.

Torx Truss Screw M6 X 25.

985

Flat Washer M6.6 X 22.

Flat Washer M6.6 X 22.
