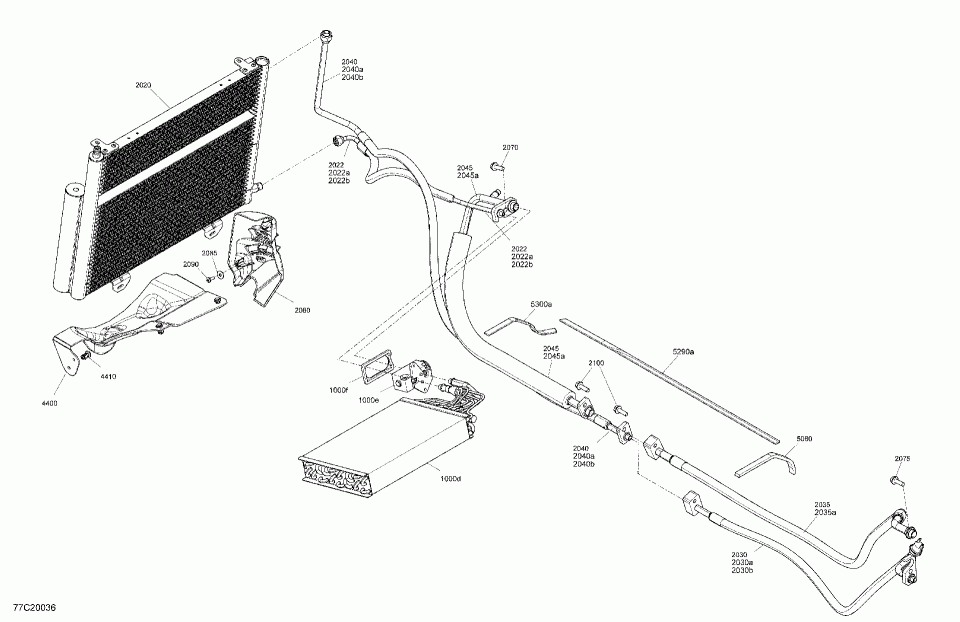

09- cab - cooling air conditioner - cab ltd

Cam-am 012 - Defender HD10 - Limited - North America
Cam-am
#oem кодцена
1000d
705800387
Evaporator. Includes 1000d to 1000e.
1000e
705800458
Expansion Valve.
1000f
705800519
Gasket.
2020
520001931
Condenser. Includes 2020 to 2020d.
2020a
715900678
Plastic Cap.
2020b
715900671
КОЛЬЦО
2020c
715900672
Dessicant Cartridge.
2020d
715900679
Plug.
2022
705800531
Hose. Includes 2022 to 2022b.
2022a
715900665
Sealing Washer #6.
2022b
715900668
КОЛЬЦО
2030
705800521
Compressor Hose. Includes 2030 to 2030b.
2030a
715900666
Sealing Washer #8.
2030b
715900673
Pressure Switch.
2035
705800522
Compressor Hose. Includes 2035 to 2035a.
2035a
715900667
Sealing Washer #12.
2040
705800523
Compressor Hose. Includes 2040 to 2040b.
2040a
715900669
КОЛЬЦО
2040b
715900666
Sealing Washer #8.
2045
705800524
Compressor Hose. Includes 2045 to 2045a.
2045a
715900667
Sealing Washer #12.
2070
233281416
Hex. Elastic Flanged Nut M8.
2075
207682534
Hex. Flanged Screw M8 X 25.
2080
705800588
Hose Support.
2085
234062670
Flat Washer, Stainless.
2090
250000720
Torx Screw K50 X 16.
2100
207682534
Hex. Flanged Screw M8 X 25.
4400
705800489
Front Air Deflector.
4410
293150230
Tuflok Plastic Rivet.
5060
705800618
Gasket. Includes 5060 to 5060a.
5060a
293200003
Neoprene Seal (1PAC=3M). Not illustrated.
5290a
293250087
Neoprene Seal, 410 MM.
5300a
293250087
Neoprene Seal, 410 MM.
