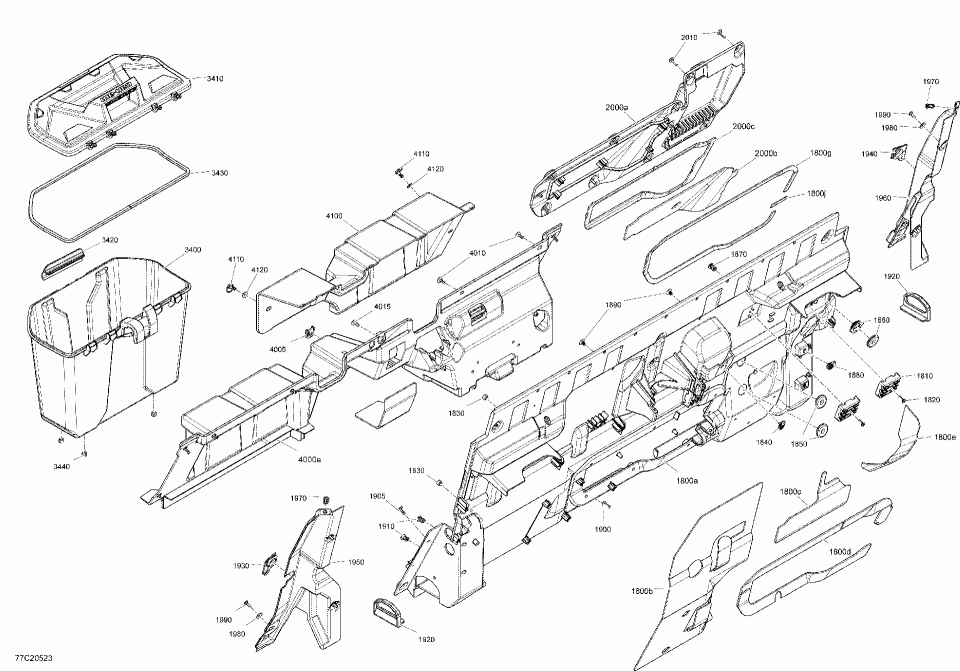

09- cab interior - back wall

Cam-am 012 - Defender HD10 - Limited - North America
Cam-am
#oem кодцена
1800a
707900715
Rear Upper Cab Panel.
1800b
707900825
Heat Shield.
1800c
707900829
Heat Shield.
1800d
707900926
Heat Shield.
1800e
707900835
Heat Shield.
1800g
293250087
Neoprene Seal, 410 MM.
1800j
293250087
Neoprene Seal, 410 MM.
1810
707900788
Hose Support.
1820
250000720
Torx Screw K50 X 16.
1830
293830005
Rubber Bumper.
1840
250000957
Extruded Panel Nut M6.
1850
293720119
Grommet.
1860
293720119
Grommet.
1860
293000125
Plug.
1870
293150230
Tuflok Plastic Rivet.
1880
250000957
Extruded Panel Nut M6.
1890
414644300
Black, Dart.
1900
250000722
Torx Screw M6 X 20.
1905
293150100
Pop Rivet 3/16
1910
293150230
Tuflok Plastic Rivet.
1920
707900774
Panel Trim.
1930
707900775
LH Panel Trim.
1940
707900776
RH Panel Trim.
1950
707900766
LH Upper Deflector.
1960
707900767
RH Upper Deflector.
1970
293150230
Tuflok Plastic Rivet.
1980
234062670
Flat Washer, Stainless.
1990
250000720
Torx Screw K50 X 16.
2000a
707900742
Rear Access Cover.
2000b
707900928
Heat Shield.
2000c
707900927
Heat Shield.
2010
250000712
Torx Screw M6 X 20.
2210
250000722
Torx Screw M6 X 20.
3400
715003314
Storage Box.
3410
715003314
Storage Box.
3420
269501945
Clip.
3430
293250453
Neoprene Seal.
3440
293830005
Rubber Bumper.
4000a
707900718
Rear Lower Cab Panel.
4005
705002651
Quarter Turn Nut.
4010
293150100
Pop Rivet 3/16
4015
250000722
Torx Screw M6 X 20.
4100
707900743
Battery Cover.
4110
705002649
Quarter Turn Screw.
4120
708400286
Washer.
