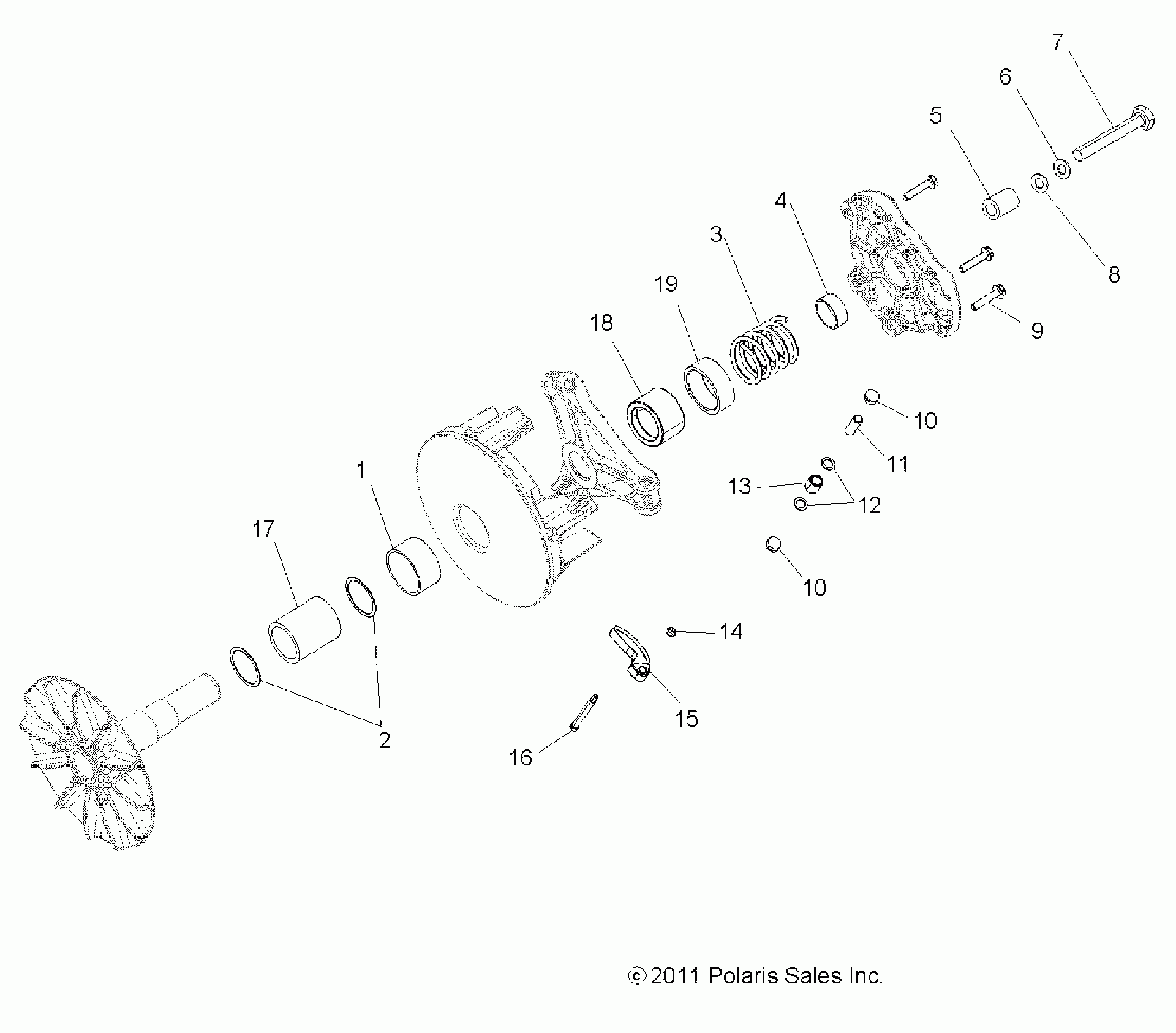

Drive train, primary clutch - r19rda57a1 / b1 (49rgrclutchdrv12rzr570)

Polaris Ranger R19RDA57A1/B1 RANGER CREW 570 FS
Polaris Ranger
#oem кодцена
1323255
ASM., CLUTCH, DRIVE, BASIC, BEARING
1
3514492
Подшипник
2
7556335
WASHER, CLUTCH
3
7043594
SPRING, CLUTCH, 35-240
4
3514684
Шайба
4
3514684
Шайба
5
5430261
Втулка
5
5430261
Втулка
6
7575202
WASHER, INTERLOCK
6
7575202
WASHER, INTERLOCK
7
7519287
BOLT, CLUTCH
7
7519287
BOLT, CLUTCH
8
5210748
Шайба
8
5210748
Шайба
9
7518062
SCR-1/4-20X1.25 HX/FL GR5
9
7518062
SCR-1/4-20X1.25 HX/FL GR5
10
5439254
BUTTON, CLUTCH
10
5439254
BUTTON, CLUTCH
11
5020422
PIN, ROLLER
11
5020422
PIN, ROLLER
12
5438247
WASHER, CLUTCH, SPIDER ROLLER
12
5438247
WASHER, CLUTCH, SPIDER ROLLER
13
1321457
ASM., ROLLER AND BUSHING
13
1321457
ASM., ROLLER AND BUSHING
14
7541906
NUT-10-24-FLEX LOC-Z
14
7541906
NUT-10-24-FLEX LOC-Z
15
5632409
WEIGHT, SHIFT, 25-52G, PM
15
5632409
WEIGHT, SHIFT, 25-52G, PM
16
7512266
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
16
7512266
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
17
3514609
Подшипник
17
3514609
Подшипник
18
5633000
SPACER, CLUTCH, PM
18
5633000
SPACER, CLUTCH, PM
19
5438823
SPACER, CLUTCH, LIMITER
19
5438823
SPACER, CLUTCH, LIMITER
