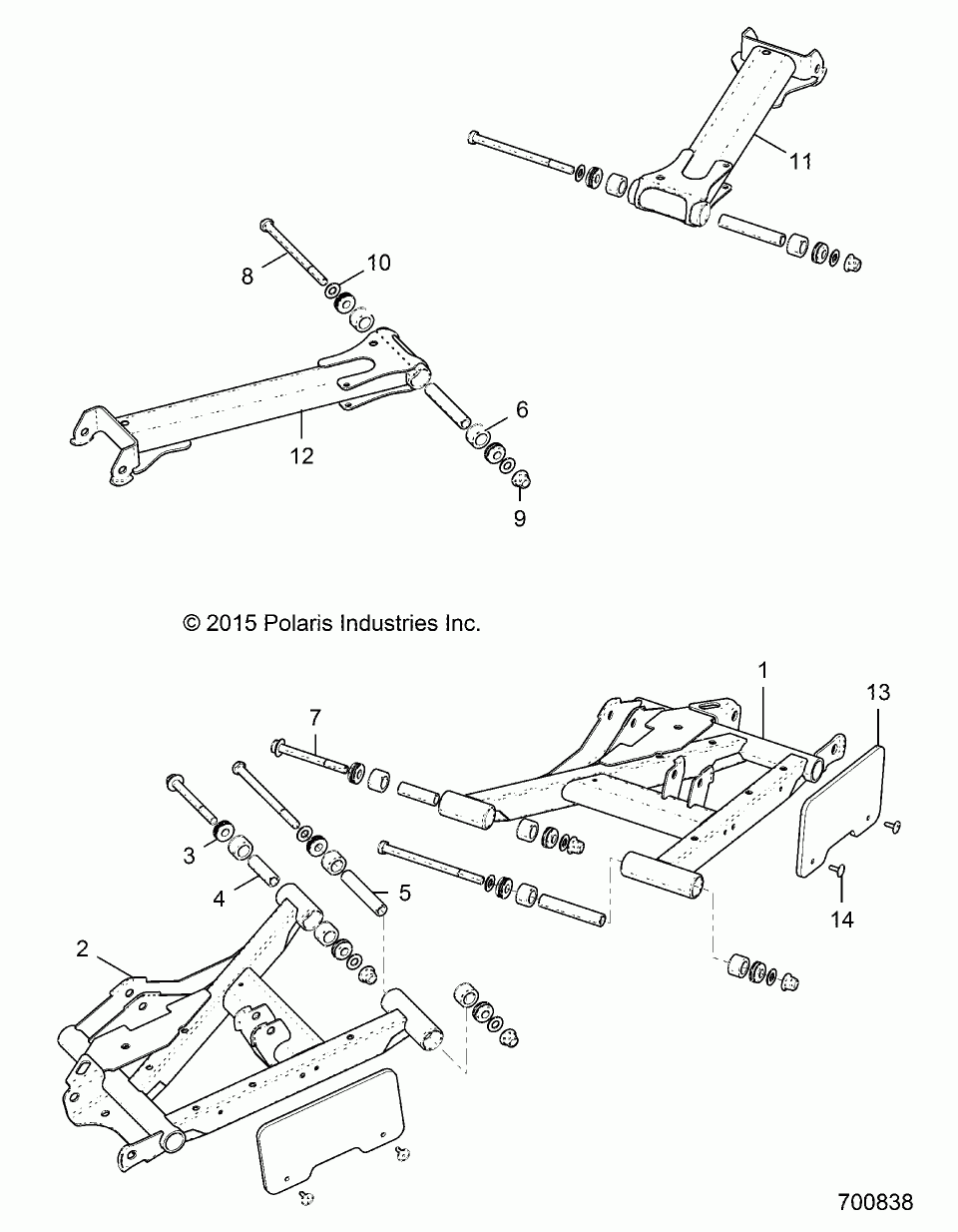

Suspension, rear control arms - r19rhe99ad / bd / ld / kak / bk (700838)

Polaris Ranger R19RHE99AD/BD/LD/K99AK/BK POLARIS GENERAL 1000 4P PS RC
Polaris Ranger
#oem кодцена
1
1021414-458
WELD-A-ARM,REAR,LWR,LH,60,BLK
1
1021414-632
WELD-A-ARM,REAR,LWR,LH,60,TTNM
2
1021415-458
WELD-A-ARM,REAR,LWR,RH,60,BLK
2
1021415-632
WELD-A-ARM,REAR,LWR,RH,60,TTNM
3
1543611
ASM-PIVOT CAP,SEALED,M10
4
5139966
SHAFT-PIVOT,SHORT,M10
5
5142088
SHAFT-PIVOT,LONG,M12
5
5139967
SHAFT-PIVOT,LONG,M10
6
5452233
BUSHING-STANDARD,SUSP,M10
7
7519043
SCR-HXFL-M10X1.25X95 10.9 ZOD
8
7519897
SCR-HH-M10X1.25X140,10.9 ZOD
9
7547333
NUT-M10X1.25,FLG,NYLOC-OLIVE D
10
7556153
WASHER-3/8 FW SAE STL THRU-HRD
11
1021412-458
WELD-A-ARM,REAR,UPR,LH,60,BLK
11
1021412-632
WELD-A-ARM,REAR,UPR,LH,60,TTNM
12
1021413-458
WELD-A-ARM,REAR,UPR,RH,60,BLK
12
1021413-632
WELD-A-ARM,REAR,UPR,RH,60,TTNM
13
5451336-070
SHIELD-CV,REAR,BLK
14
7621467
RVT-3/16(.251-.375)ST-ST-LF-B
14
7556287
WSHR-13.0X24.0X2.5 ZPC
