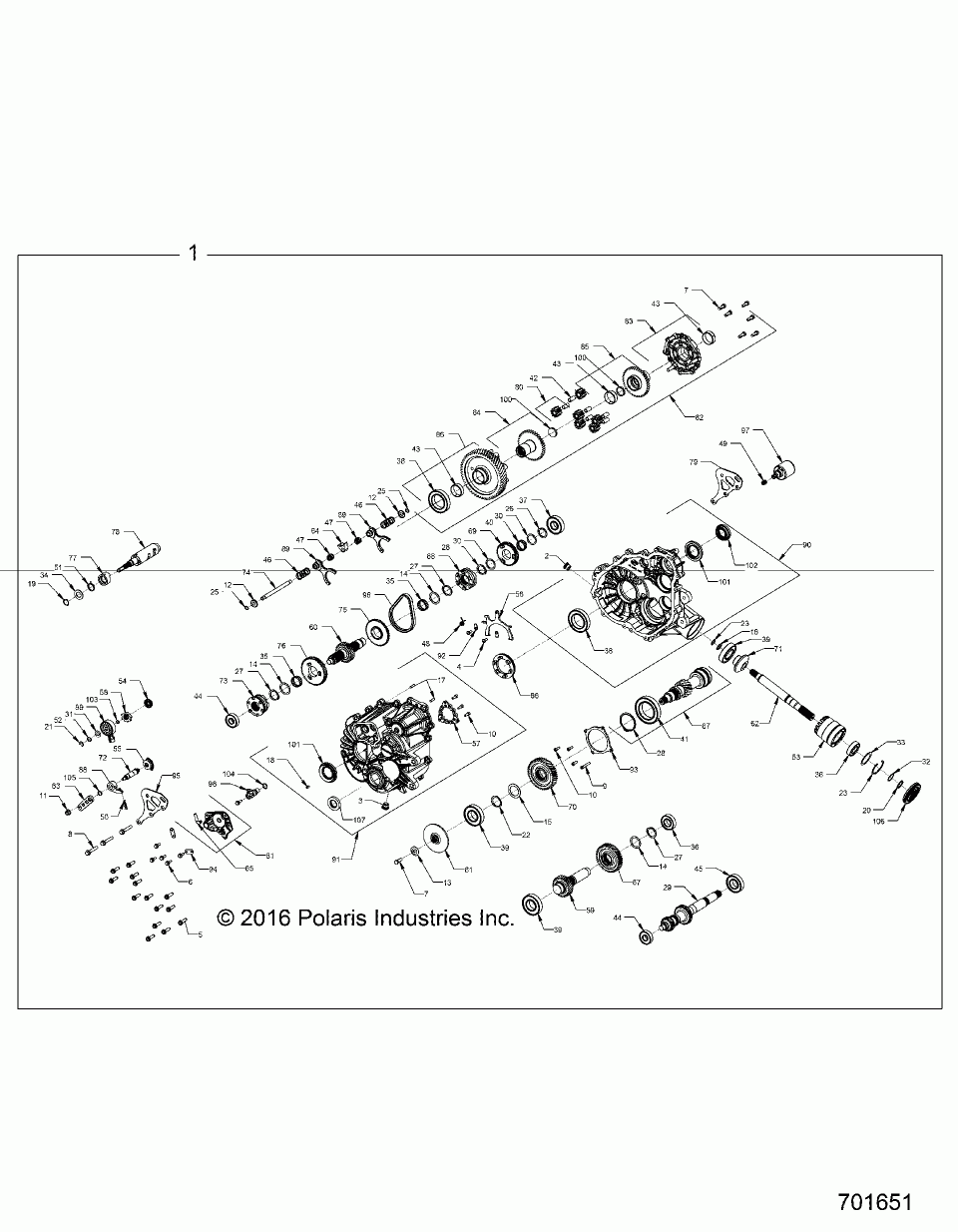

Drive train, main gearcase internals - z18vde99fk / s99ck / fk (701651)

Polaris Ranger Z18VDE99FK/S99CK/FK RZR XP 1000 TRACTOR/EU/ZUG
Polaris Ranger
#oem кодцена
1
1333738
ASM-GEARCASE,COMPLETE,DIFF,PB
2
3234755
PLUG M18 X 1.5
3
3234756
PLUG M18 X 1.5, MAGNETIC
4
3234309
SCREW, TORX PAN HD M6 X 1 X 16
5
3234898
SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
6
3235206
SCREW, HEX FLANGE HEAD M6 X 1 X 20
7
3236169
SCREW, CAP HH M8-1.25 X 25
8
3235207
SCREW HEX FLANGE M8 X 50
9
3235208
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
10
3235332
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
11
3235210
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
12
3234091
WASHER CUP
13
3234952
WASHER, FENDER 42506 X 1.25 X 0.0655
14
3235211
WASHER 32.3 X 42 X 1.5
15
3235212
WASHER 35.6 X 50 X 1.5
16
3235213
WASHER 17.3 X 25 X 1.5
17
3234330
PIN, DOWEL 6 X 20
18
7043746
PIN, SPRING SLOTTED 6 X 12
19
3233045
RING, RETAINING BASIC EXTERNAL 0.75
20
3233106
RING, RETAINING BASIC EXTERNAL 0.984
21
3233834
RING SNAP
22
3233364
RING, RETAINING SHAFT, DIA. 1.375
23
3234318
RING, RETAINING EXTERNAL SHR-66
24
3234269
RING, RETAINING BASIC INTERNAL 2.047
25
3234090
RING, RETAINING BASIC EXTERNAL 0.428
26
3234205
Стопорное кольцо
27
3235214
RING, EXTERNAL SNAP 32 X 2.4
28
3235216
RING, RETAINING VSH-237
29
3235763
SHAFT, INPUT 42T/20T/29T
30
3233378
WASHER, THRUST 1.187 X 1.5 X 0.06
31
3234642
WASHER, THRUST 0.446 X 0.88 X 0.025
32
3234272
SHIM 1.18 OD X 0.995 ID
33
3234273
SHIM 2.04 OD X 1.63 ID
34
3235883
SPACER, 19.4 X 34 X 2
35
3233014
BEARING, NEEDLE CAGE ASSY
36
3233019
BEARING, BALL 6205 C3 25X52X15
37
3233020
BEARING, BALL 6305 C3, 25 X 62 X 17
38
3233268
BEARING, BALL 6010 C3 50X80X16
39
3234065
BEARING, BALL 6207 C3 35X72X17
40
3233384
BEARING, NEEDLE CAGE ASSY
41
3235218
BEARING, BALL 6012 C3 60 X 95 X 18
42
3234239
BEARING, PLAIN 10X12X25
43
3234241
PLAIN, BEARING 40X44X15
44
3234652
BEARING, BALL 6303 17 X 47 X 14
45
3235496
BEARING, BALL 6206RSH2 STD 30X62X16
46
3234078
SPRING, COMPRESSION 0.92 O.D. X 2
47
3234089
SPRING, COMPRESSION 0.46 I.D. X 0.73
48
3234276
SPRING, TORSION RETURN
49
3234277
SPRING, COMPRESSION 0.54 OD X.44 ID X.050 WIRE
50
3234578
Пружина сжатия
51
3235885
Пружина
52
3235327
SPRING, WASHER
53
3234278
TUBE, SNORKEL MACH
54
3233839
GEAR, SECTOR 16T
55
3233832
GEAR, SECTOR 31T
56
3235455
FORK, PIVOT SHIFT REAR DIFF
57
3235456
PLATE, PARK 12-FACE
58
3235982
STAR, DETENT
59
3235223
SHAFT, IDLER 29T
60
3235224
SHAFT, REVERSE 29T
61
3235372
Тормозной диск
62
3235394
SHAFT, FRONT OUTPUT
63
3235227
BELLCRANK 92 DEGREE
64
3234073
COLLAR, SHIFT
65
3234230
TUBE, VENT 90 -1/4
66
3234928
DOG, ENGAGEMENT
67
3235229
GEAR, 44T STAGE 2
68
3235233
ENGAGEMENT DOG, 6-FACE
69
3235234
GEAR, 53T
70
3235236
GEAR, 46T STAGE 3
71
3235237
GEAR, 13T SNORKEL
72
3235238
SHAFT SHIFT
73
3235457
SHIFT DOG, PARK
74
3235542
RAIL, SHIFT SHAFT
75
3235755
SPROCKET 48T 6-FACE
76
3235774
GEAR, LOW 64T
77
3235983
PARK CAM
78
3235984
DRUM, SHIFT MACH
79
3235558
WELDMENT, REAR MOUNT BRACKET
80
3234469
PLANET GEAR SUBASSEMBLY
81
3235713
SUBASSEMBLY, SECTOR COVER
82
3235373
SUBASSEMBLY, AVALANCHE DIFFERENTIAL
83
3235376
SUBASSY, DIFF COVER
84
3235374
SUBASSEMBLY, 39T SIDE GEAR
85
3235375
SUBASSY, 39T SIDE GEAR
86
3235378
SUBASSY, GEAR 53T
87
3235371
SUBASSEMBLY PINION
88
3235452
SUBASSEMBLY, PAWL DETENT, ROLLER
89
3235920
SUBASSEMBLY, SHIFT FORK
90
3235866
SUBASSEMBLY, LH CASE
92
3234934
RETAINER, FORK
93
3235241
COVER, BEARING CENTER DRIVE
94
3235350
BRACKET WIRE HARNESS
95
3235559
BRACKET, REAR MOUNT
96
3234737
CHAIN, SILENT, TYPE 101 .25P X .40W X 58L
97
3235478
SOLENOID
98
4013908
Датчик скорости
99
7662299
SWITCH, ROTARY 2 PIN RESISTIVE
100
3234249
PLUG, EXPANSION 37987
101
3235830
SEAL, DUAL LIP, VITON 40 X 70 X 7
102
3235495
SEAL, TRIPLE LIP VITON HELIX 30 X47
103
3233836
O-RING, -12 VITON
104
3234302
Кольцо уплотнительное
105
3233828
O-RING, -14 VITON
106
3235658
SEAL, TRIPLE LIP, VITON 25 X 80 X 10
107
3234892
SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON
