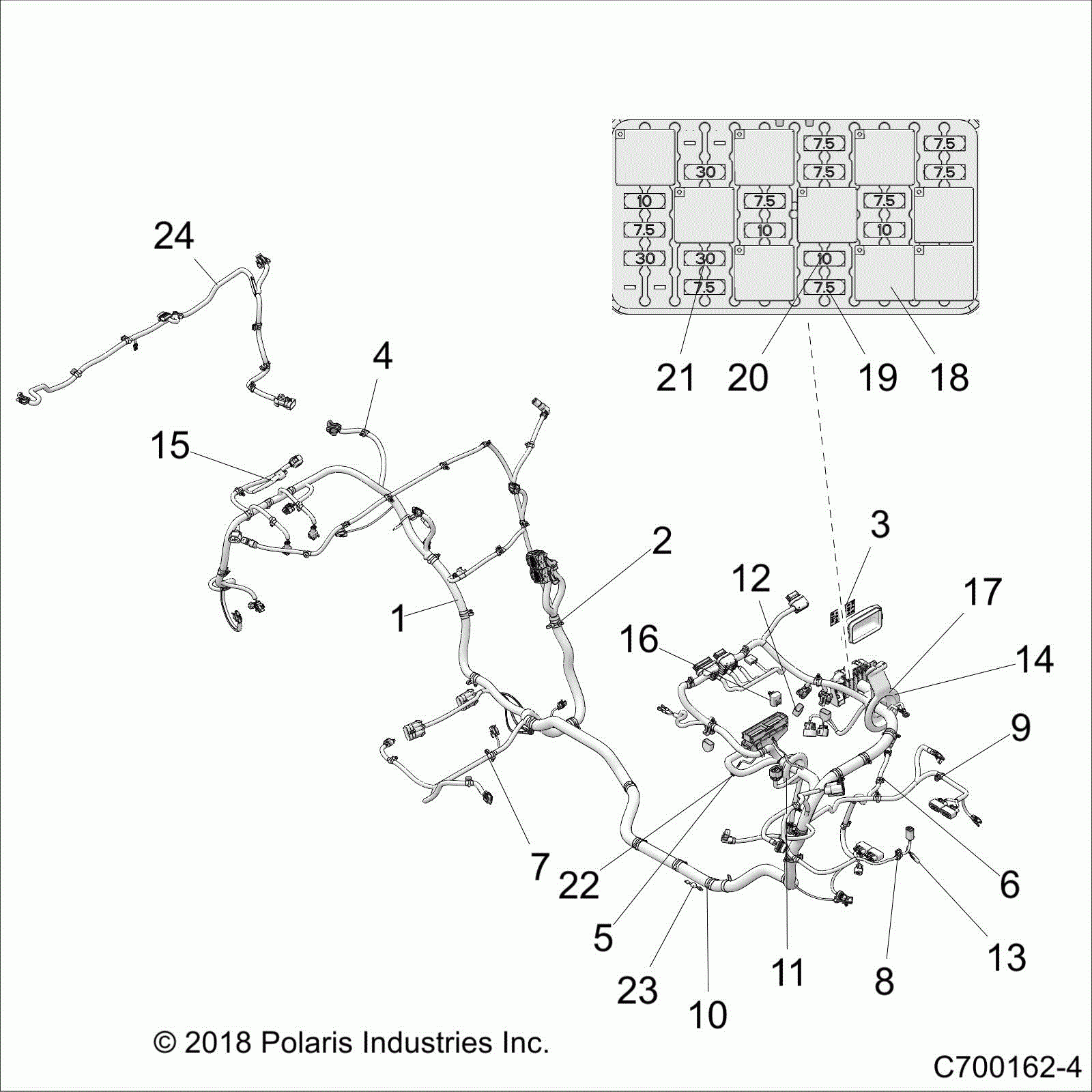

Electrical, wire harness - z18vel92bk / br / lk (c700162-4)

Polaris Ranger Z18VEL92BK/BR/LK RZR XP TURBO S
Polaris Ranger
#oem кодцена
1
2413999
HARNESS-CHASSIS,RZR,T,LV,72
2
7081916
CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)
4
7082068
CLIP-ROUTING
5
7082020
CLIP-ROUTING,DIN BOX
6
7082003
CABLE TIE-FIR TREE
7
7081916
STRAP-PANDUIT, DOUBLE LOOP, 260 MM
8
7081890
CLIP-EDGE,HARNESS
9
7081808
STRAP-CABLE TIE W/EDGE CLIP
10
7081496
CLIP-ROUTING
11
5813954
GROMMET-65MM,BLK
12
5438233
CAP-VINYL,500X1000,BLACK
13
5438230
CAP-VINYL,125X375,BLACK
14
5416469
GROMMET-DASH FUSE CTR,RZR
15
4016101
BOOT-TMAP
16
4012170
COVER-DIAGNOSTIC,W/CLIP
17
2410000
DIODE-6AMP,1/4,3/16 TERM
18
4016819
RELAY-SPST,SERIES 303,SEALED
19
4011068
FUSE-7.5 MINI BLADE (BROWN)
20
2434016
FUSE-IGNITION,10 AMP
21
2434015
FUSE-MAIN,30 AMP
22
2413217
LED-PANEL MNT,12V,BLUE
23
2411035
DIODE-6AMP,1/4,3/16 TERM
24
2414085
HARNESS-BOX,RZR,72,CAMERA
25
7081890
CLIP, EDGE, HARNESS
26
7081808
STRAP, CABLE TIE W/EDGE CLIP
27
7081496
CLIP, ROUTING
