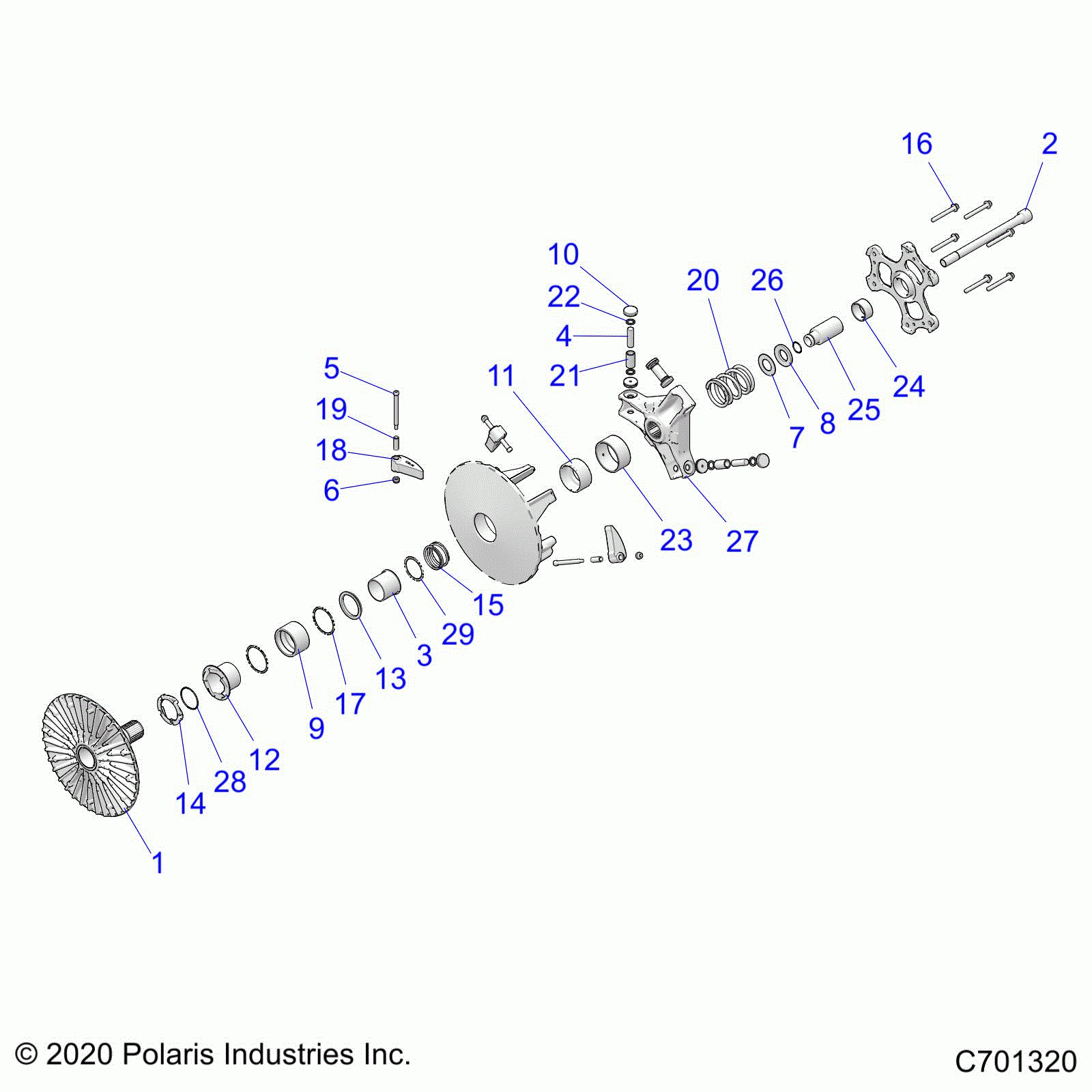

Drive train, primary clutch - r21rrh99ac / bc (c701320)

Polaris Ranger RANGER 1000 EPS HD, EVAP (R21RRH99AC/BC)
Polaris Ranger
#oem кодцена
1323785
ASM-DRIVE CLUTCH,BASIC,P90X [INCL. ALL EXCEPT 2, 18-20]
1
5143478
ASM-SHEAVE,STAT,P90X,HD
10
5457274
BUTTON-CLUTCH,22MM,SCP
11
5143479
SPACER-CLUTCH,P90X,QPQ
12
5142116
SLEEVE-FLANGE,EBS,15DEG,QPQ
13
5143897
SPACER-FLANGE,TALL
14
5457157
HELIX,DRIVE,P90X,15DEG
15
7045305
SPRING-ONEWAY,EBS
16
7517932
SCR-M6X1.0X50.0 HX/FL-Y/D
17
7556984
WASHER-CLUTCH,P90X
18
1323697
ASM-WEIGHT-SHIFT,32-114, HC [INCL. 19]
18
5142918
WEIGHT-SHIFT,32-114, HC
19
5453843
BUSHING-WEIGHT,1/4X7/8,DU
2
7520526
SCR-SH-M14X1.5X180 10.9 SPC
20
7045326
SPRING-CLUTCH,103-200,HT
21
5143506
ROLLER-SPIDER,12X14.3X25 [INCL. BUSHINGS]
22
5453844
WASHER-CLUTCH,SPIDER ROLLER
23
3515174
BUSHING-50X55X25,MU
24
3515173
BUSHING-1.13X1.28X0.63,MU
25
5143553
POST-CLUTCH,OUTER,O-RING
26
5416980
O-RING-1.0X17.5MM
27
1323794
ASM-SPIDER,22MM,P90X,HD [INCL. 4,10,21,22]
28
5417443
O-RING-1.2X35MM
29
7557213
WASHER-CLUTCH,P90X
3
1323786
ASM-SLEEVE,EBS,15DEG,QPQ [INCL SLEEVE, BUSHING, AND 9, 12, 13, AND 17]
3
3515167
BUSHING-SLEEVE,36MM
4
5140978
PIN-SPIDER
5
7520585
BOLT-SHIFT WEIGHT,BUSHED
6
7541906
NUT-10-24-FLEX LOC-Z
7
7557017
WSHR-20.5X38.0X0.75 ZY3
8
7557018
WSHR-BELLE,21X37.5X3.8,SPC
9
1523288
ASM-CLUTCH,ONEWAY,50MM,30RLRV
