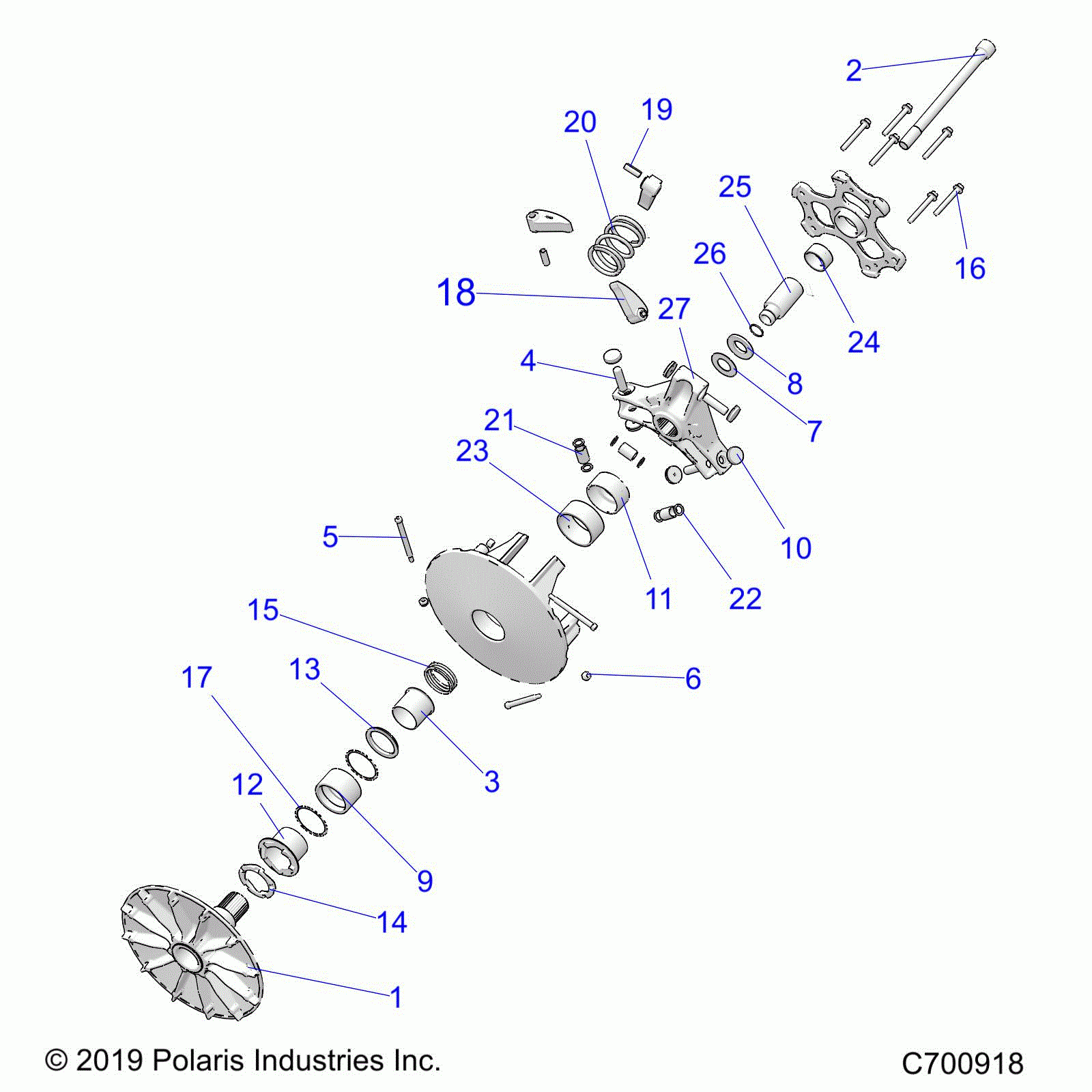

Drive train, primary clutch - r20rry99a9 / aa / af / ap / ax / b9 / ba / bf / bp / bx (c700918)

Polaris Ranger RANGER 1000XP NSTR UL (R20RRY99A9/AA/AF/AP/AX/B9/BA/BF/BP/BX)
Polaris Ranger
#oem кодцена
0
1327111
ASM-DRIVE CLUTCH,BASIC,P90X [INCL. ALL]
1
5140724
ASM-SHEAVE,STAT,P90X [INCL 12 AND 23]
11
5140729
SPACER-CLUTCH,P90X
12
5142116
SLEEVE-FLANGE,EBS,15DEG,QPQ
13
5141803
SPACER-FLANGE
14
5456000
HELIX,DRIVE,P90X,15DEG
15
7044697
SPRING-ONEWAY,EBS
16
7517932
SCR-M6X1.0X50.0 HX/FL-Y/D
17
7556984
WASHER-CLUTCH,P90X
18
1323697
ASM-WEIGHT-SHIFT,32-114, HC [INCL 19]
19
5453843
BUSHING-WEIGHT,1/4X7/8,DU
2
7520526
SCR-SH-M14X1.5X180 10.9 SPC
20
7045326
SPRING-CLUTCH,103-200,HT
22
5453844
WASHER-CLUTCH,SPIDER ROLLER
23
3514984
BUSHING-MOVABLE,50MM
24
3514983
BUSHING-COVER,38.1MM
25
5142702
POST-CLUTCH,OUTER,O-RING
26
5416980
O-RING-1.0X17.5MM
27
1323400
ASM-SPIDER,16.7MM,P90X [INCL. 4,10,21&22]
3
1327166
ASM-SLEEVE,EBS,15DEG,QPQ [INCL. SLEEVE AND BUSHING 9,12,13, AND 23]
3
3515009
BUSHING-SLEEVE,36MM
4
5140978
PIN-SPIDER
5
7520585
BOLT-SHIFT WEIGHT,BUSHED
6
7541906
NUT-10-24-FLEX LOC-Z
7
7557017
WSHR-20.5X38.0X0.75 ZY3
8
7557018
WSHR-BELLE,21X37.5X3.8,SPC
9
1523288
ASM-CLUTCH,ONEWAY,50MM,30RLRV
