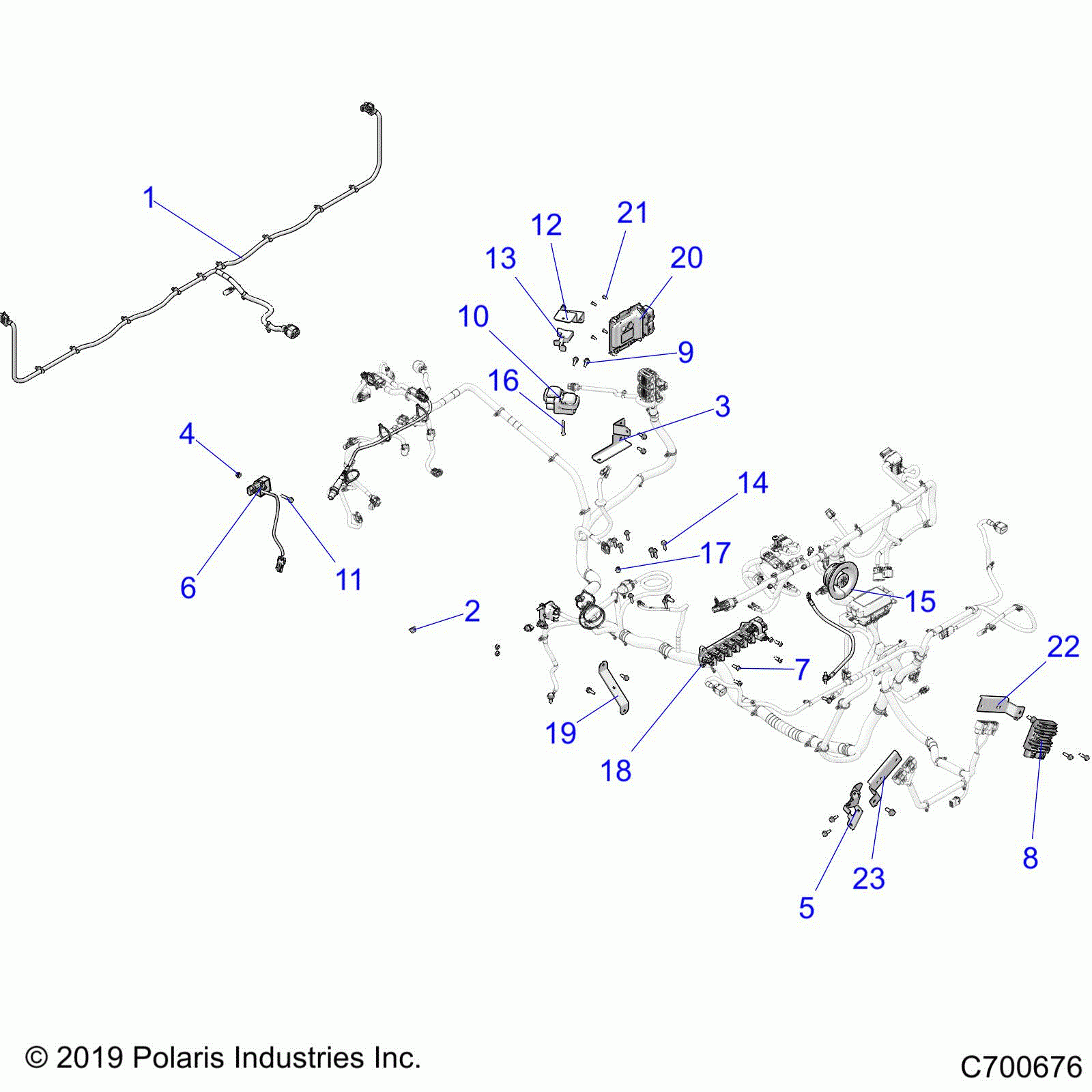

Electrical, wire harness componants- r21rsf99ak (c700676)

Polaris Ranger RANGER CREW 1000XP PS TX CA (R21RSF99AK)
Polaris Ranger
#oem кодцена
1
2414296
HARNESS,BOX,RANGER,RC
10
2876049
COIL, EFI
12
5263891
BRKT-COIL MOUNT
13
5436577
SPACER, COIL MOUNT
14
7518529
SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
15
5417082
GROMMET-HOOD LINER,SPLIT
16
7518780
SCR-M6X1.0X40,HX/SOC/CP-B
17
7547274
NUT, M6 FLANGE, NYLOC
18
4016007
BLOCK-TERMINAL,3 POST,TALL [INCLS. FUSE, PLUG, AND COVER]
18
5454284
COVER,TB,JCASE
18
4013891
FUSE, CARTRIDGE, 40A
18
5454283
PLUG,ACCY TB
19
5265908-458
BRKT-WIRE GUIDE,BLK
2
7547317
NUT-M8X1.25,HXFLG,NYLON INS
20
4014125
ECM-HARD,ME17,2CYL,250K
21
7519091
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
22
5263643
BRKT-MOUNT,REG
23
5267612
BRKT-MOUNT,REG
3
5264314
BRKT-HARNESS ROUTING
4
7547339
Гайка m6x1.0
5
5268050-329
BRKT-ROUTING,BLK
7
7519731
SCR-TXPH-#14 X .75 HI-LO RIE
8
4012941
REGULATOR-3PH,35A,SERIES,105C
9
7520715
SCR-TFHFL-M6X1.0X25,ZY3
