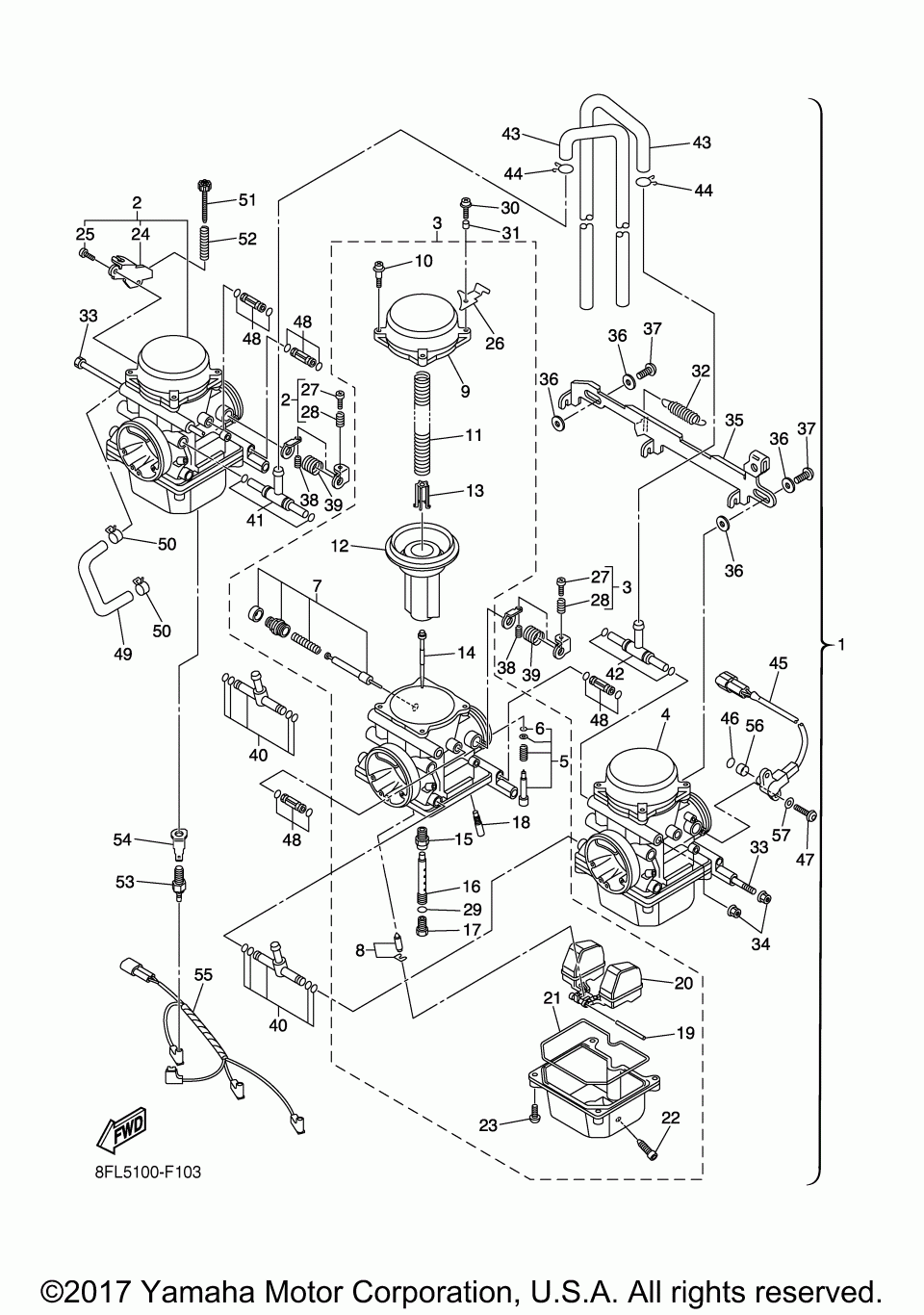

Карбюратор

Yamaha RS VENTURE (RST9NJS)

Карбюратор

#

oem код

название

цена

57

. .WASHER

. .WASHER

56

4TV-14534-00-00

. .COLLAR

. .COLLAR

55

8ES-81517-01-00

. .WIRE, SUB LEAD

. .WIRE, SUB LEAD

54

8FA-82103-00-00

. .TERMINAL 1

. .TERMINAL 1

53

5FU-83790-20-00

. .HEATER ASSY (30W)

. .HEATER ASSY (30W)

52

4YR-14934-00-00

. .SPRING, THROTTLE STOP

. .SPRING, THROTTLE STOP

50

4TV-12486-00-00

. .CLIP

. .CLIP

51

8ES-14121-00-00

. .SCREW, THROTTLE STOP

. .SCREW, THROTTLE STOP

49

8ES-14987-00-00

. .HOSE

. .HOSE

48

8ES-14454-00-00

. .JOINT

. .JOINT

47

. .SCREW

. .SCREW

46

4TV-14562-00-00

. .O-RING

. .O-RING

45

8ES-85885-01-00

. .THROTTLE SENSOR ASSY

. .THROTTLE SENSOR ASSY

43

8ES-14197-01-00

. .PIPE

. .PIPE

44

3TJ-14937-40-00

. .CLIP

. .CLIP

42

8ES-13816-00-00

. .JOINT 2

. .JOINT 2

41

8ES-13815-00-00

. .JOINT 1

. .JOINT 1

40

8ES-14295-00-00

. .PIPE, FUEL

. .PIPE, FUEL

39

4JH-14487-00-00

. .SPRING

. .SPRING

38

4YR-14133-00-00

. .SPRING, THROTTLE STOP

. .SPRING, THROTTLE STOP

37

8ES-14567-00-00

. .SCREW

. .SCREW

36

8ES-14578-00-00

. .COLLAR

. .COLLAR

35

8ES-14965-00-00

. .LEVER, STARTER

. .LEVER, STARTER

34

. .NUT

. .NUT

33

8ES-14162-00-00

. .BOLT, HOLDING

. .BOLT, HOLDING

32

8ES-14935-00-00

. .SPRING

. .SPRING

31

4JH-14264-00-00

. .COLLAR

. .COLLAR

30

8ES-14565-00-00

. .SCREW

. .SCREW

29

3TJ-14564-40-00

. . ..O-RING

. . ..O-RING

28

5JG-14531-00-00

. . ..SPRING

. . ..SPRING

27

5JG-14565-00-00

. . ..SCREW, THROTTLE STOP

. . ..SCREW, THROTTLE STOP

26

4TV-14926-00-00

. . ..BRACKET, THROTTLE 1

. . ..BRACKET, THROTTLE 1

25

8ES-14592-00-00

. . ..SCREW

. . ..SCREW

24

8ES-14926-01-00

. . ..BRACKET, THROTTLE 1

. . ..BRACKET, THROTTLE 1

23

. . .SCREW, PAN HEAD

. . .SCREW, PAN HEAD

22

3TJ-14191-40-00

. . ..PLUG, DRAIN

. . ..PLUG, DRAIN

21

8ES-14984-00-00

. . ..GASKET, FLOAT CHAMBER

. . ..GASKET, FLOAT CHAMBER

20

8ES-14985-00-00

. . ..FLOAT

. . ..FLOAT

19

663-14548-00-00

. . .PIN, FLOAT ARM

. . .PIN, FLOAT ARM

18

8ES-14948-05-00

. . ..JET (#45)

. . ..JET (#45)

18

8ES-14948-03-00

. . ..JET (#40)

. . ..JET (#40)

18

8ES-14948-07-00

. . ..JET (#50)

. . ..JET (#50)

18

8ES-14948-06-00

. . ..JET (#48)

. . ..JET (#48)

17

3TJ-14943-37-00

. . ..JET, MAIN (#150)

. . ..JET, MAIN (#150)

17

3TJ-14943-36-00

. . ..JET, MAIN (#145)

. . ..JET, MAIN (#145)

17

3TJ-14943-87-00

. . ..JET, MAIN (#148)

. . ..JET, MAIN (#148)

16

8ES-1414G-00-00

. . ..PIPE, MAIN BLEED

. . ..PIPE, MAIN BLEED

15

8ES-14947-00-00

. . ..JET, NEEDLE

. . ..JET, NEEDLE

14

8ES-14916-00-00

. . ..JET NEEDLE COMP.

. . ..JET NEEDLE COMP.

13

4JH-14936-00-00

. . ..SEAT, SPRING

. . ..SEAT, SPRING

12

8ES-14940-00-00

. . ..DIAPHRAGM ASSY

. . ..DIAPHRAGM ASSY

11

8ES-14933-00-00

. . ..SPRING, DIAPHRAGM

. . ..SPRING, DIAPHRAGM

10

4JH-14216-00-00

. . ..SCREW

. . ..SCREW

9

8ES-14958-00-00

. . ..COVER, DIAPHRAGM

. . ..COVER, DIAPHRAGM

7

8ES-1410A-00-00

. . ..STARTER SET

. . ..STARTER SET

8

8ES-14107-00-00

. . ..NEEDLE VALVE SET

. . ..NEEDLE VALVE SET

6

8ES-14147-00-00

. . . ...O-RING

. . . ...O-RING

5

8ES-14105-00-00

. . ..PILOT SCREW SET

. . ..PILOT SCREW SET

4

8ES-14903-01-00

. .CARBURETOR ASSY 3

. .CARBURETOR ASSY 3

3

8ES-14902-01-00

. .CARBURETOR ASSY 2

. .CARBURETOR ASSY 2

2

8ES-14901-01-00

. .CARBURETOR ASSY 1

. .CARBURETOR ASSY 1

1

8ES-14900-02-00
