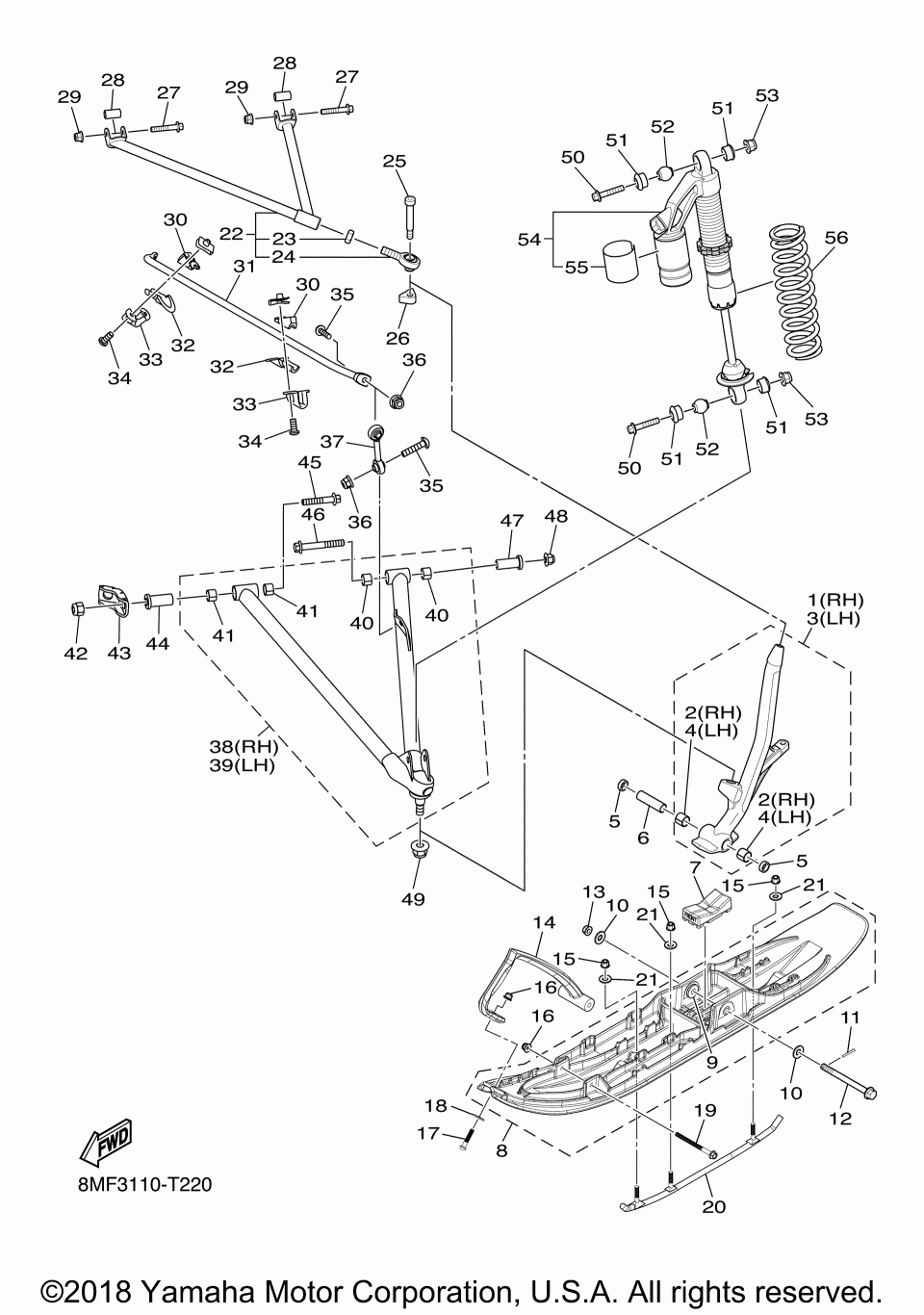

Лыжа

Yamaha SIDEWINDER B TX LE 153 50TH (SW1NBL53JW)

Лыжа

#

oem код

название

цена

56

8JW-F3351-00-00

Пружина

Пружина

55

8JW-F151J-00-00

. .LABEL 6

. .LABEL 6

54

8MF-F330E-00-00

Бендикс

Бендикс

53

8JP-RA360-10-00

NUT, FLANGE LOCKING

NUT, FLANGE LOCKING

52

8KG-RA724-00-00

COLLAR, 12

COLLAR, 12

51

8KG-RA817-00-00

BUSH, 8

BUSH, 8

50

8KG-RA1B9-00-00

BOLT, FLANGE M8X50

BOLT, FLANGE M8X50

49

8JP-RA362-00-00

NUT, FLANGE LOCKING M12X1.25

NUT, FLANGE LOCKING M12X1.25

48

8JP-RA360-00-00

NUT, FLANGE LOCKING

NUT, FLANGE LOCKING

47

8JP-RA719-00-00

COLLAR, 7

COLLAR, 7

46

8JP-RA194-20-00

BOLT, FLANGE M10-1.25X250

BOLT, FLANGE M10-1.25X250

45

8JP-RA1A7-00-00

BOLT, FLANGE M12X1.25X76

BOLT, FLANGE M12X1.25X76

44

8JP-RA721-00-00

COLLAR, 9

COLLAR, 9

43

8JP-F3543-00-00

ARM, 1

ARM, 1

41

8JP-RA811-00-00

. .BUSH, 1815DU

. .BUSH, 1815DU

42

8JP-RA361-00-00

NUT, FLANGE LOCKING M12X1.25

NUT, FLANGE LOCKING M12X1.25

40

8JP-RA807-00-00

. .BUSH, 10DU10

. .BUSH, 10DU10

39

8LH-F357A-00-00

ARM, FRONT LOWER LH. (WHITE)

ARM, FRONT LOWER LH. (WHITE)

38

8LH-F358A-00-00

ARM, FRONT LOWER RH. (WHITE)

ARM, FRONT LOWER RH. (WHITE)

37

8JP-F386F-00-00

LINK, STABILIZER FRONT

LINK, STABILIZER FRONT

36

8JM-RA301-00-00

NUT, SELF-LOCKING M8-1.25

NUT, SELF-LOCKING M8-1.25

35

8JP-RA235-10-00

SCREW, 1

SCREW, 1

34

8JP-RA235-00-00

SCREW, 1

SCREW, 1

33

8JP-F386C-00-00

HOLDER, STABILIZER FRONT

HOLDER, STABILIZER FRONT

32

8JP-F386G-00-00

BUSH, STABILIZER FRONT

BUSH, STABILIZER FRONT

31

8JP-F386E-00-00

BAR, STABILIZER FRONT

BAR, STABILIZER FRONT

30

8JP-F3867-00-00

Державка

Державка

29

8KG-RA301-00-00

NUT, SELF-LOCKING M8-1.25

NUT, SELF-LOCKING M8-1.25

28

8KG-RA720-00-00

COLLAR, 8

COLLAR, 8

27

8KG-RA190-00-00

BOLT, FLANGE M8X1.25X45

BOLT, FLANGE M8X1.25X45

26

8KU-F3856-00-00

Гайка

Гайка

25

8KU-F3767-00-00

Болт

Болт

24

8KU-F3841-00-00

. .JOINT, UNIVERSAL 1

. .JOINT, UNIVERSAL 1

23

8KU-F3778-00-00

. .NUT

. .NUT

22

8LH-F354A-00-00

ARM, FRONT UPPER (WHITE)

ARM, FRONT UPPER (WHITE)

20

8KC-F3732-00-00

RUNNER 2

RUNNER 2

21

8KC-RA443-00-00

WASHER, 10.98X28.00X1.6

WASHER, 10.98X28.00X1.6

19

8KC-F3756-00-00

BOLT, REINFORCEMENT HEAD 2

BOLT, REINFORCEMENT HEAD 2

18

8KC-F3737-00-00

Шайба 1

Шайба 1

17

8KC-F3755-00-00

BOLT, REINFORCEMENT HEAD 1

BOLT, REINFORCEMENT HEAD 1

16

8KC-RA358-00-00

Гайка

Гайка

15

8KC-RA358-00-00

NUT, FLANGE LOCKING 3/8-16

NUT, FLANGE LOCKING 3/8-16

14

8KC-F3712-20-00

REINFORCEMENT, HEAD

REINFORCEMENT, HEAD

13

NUT, S/L FLANGE

NUT, S/L FLANGE

12

Болт

Болт

11

Шплинт

Шплинт

10

Шайба

Шайба

9

8EX-F3754-00-00

. .COLLAR 1

. .COLLAR 1

8

8KC-F3710-00-00

Лыжа

Лыжа

7

8KC-F3743-00-00

Стопор

Стопор

6

8JP-RA731-00-00

COLLAR, 75

COLLAR, 75

5

8JP-RA718-00-00

COLLAR, 6

COLLAR, 6

4

8JP-RA806-00-00

. .BUSH, 12DU12

. .BUSH, 12DU12

3

8KU-F3511-60-00

KNUCKLE, STEERING 1

KNUCKLE, STEERING 1

2

8JP-RA806-00-00

. .BUSH, 12DU12

. .BUSH, 12DU12

1

8KU-F3521-60-00

KNUCKLE, STEERING 2

KNUCKLE, STEERING 2
