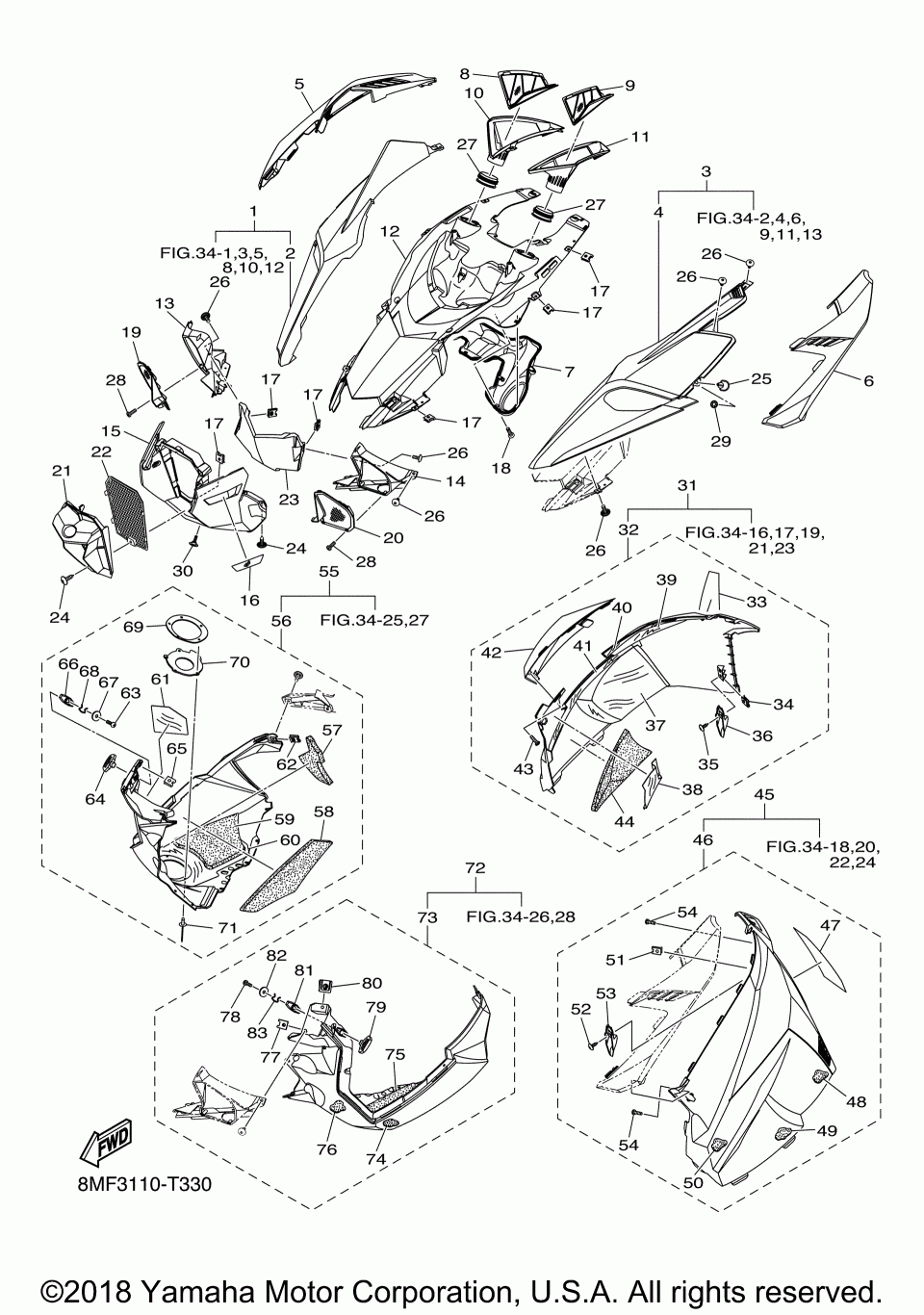

Капот и облицовка

Yamaha SIDEWINDER B TX LE 153 50TH (SW1NBL53JW)
Yamaha
#oem кодцена
82
8JP-RA429-00-00
. . WASHER
83
8JP-RAC15-00-00
. . CLIP, 6
81
8KC-K7153-00-00
. . PLATE, BACK UP 1
80
8JP-RA350-00-00
. . NUT, CLIP 1/4
79
8KC-K7324-00-00
. . KNOB
78
8JP-RA2A2-00-00
. . SCREW, 13
77
8JP-RA352-00-00
. . NUT, CLIP 10
76
8KC-K7273-00-00
. . ..DAMPER, NOISE 13
75
8KC-K7272-00-00
. . ..DAMPER, NOISE 12
74
8KC-K7271-00-00
. . ..DAMPER, NOISE 11
72
8LR-F1982-10-00
Капот
73
8LY-F197H-00-00
. .HOOD 3
71
8JP-RA523-00-00
. . RIVET, 14
70
8KC-G1138-00-00
. . SEAL, EXT. 1
69
8KC-K8181-00-00
. . PLATE 1
68
8JP-RAC15-00-00
. . CLIP, 6
67
8JP-RA429-00-00
. . WASHER
66
8KC-K7153-00-00
. . PLATE, BACK UP 1
65
8JP-RA350-00-00
. . NUT, CLIP 1/4
64
8KC-K7324-00-00
. . KNOB
63
8JP-RA2A2-00-00
. . SCREW, 13
62
8JP-RA352-00-00
. . NUT, CLIP 10
61
8KC-K7557-10-00
. . ..PROTECTOR 7
60
8KC-K7556-01-00
. . ..PROTECTOR 6
59
8KC-K7274-00-00
. . ..DAMPER, NOISE 14
58
8KC-K7275-00-00
. . ..DAMPER, NOISE 15
57
8KC-K7276-00-00
. . ..DAMPER, NOISE 16
56
8LY-F198H-00-00
. .HOOD 4
55
8LR-F1983-10-00
Капот
54
8KC-RA238-00-00
. . ..SCREW, 4
52
8KC-RA290-00-00
. . SCREW
53
8KC-K715S-00-00
. . ..HOOK 1
51
8JP-RA352-00-00
. . NUT, CLIP 10
50
8KC-K7277-10-00
. . ..DAMPER, NOISE 17
49
8KC-K7277-00-00
. . ..DAMPER, NOISE 17
48
8KC-K7279-00-00
. . ..DAMPER, NOISE 19
47
8KC-K7761-S0-00
. . ..LABEL, WARNING 1
46
8KC-K8130-00-00
. .SHELL SIDE PANEL ASSY 1
44
8KC-K7278-00-00
. . ..DAMPER, NOISE 18
45
8MT-K810F-00-00
SIDE PANEL COMP. (L.H)
43
8KC-RA238-00-00
. . ..SCREW, 4
42
8KC-K715U-00-00
. . ..VENT, SIDE 1
41
8KC-K7555-00-00
. . ..PROTECTOR 5
40
8KC-K7554-00-00
. . ..PROTECTOR 4
38
8KC-K7551-01-00
. . ..PROTECTOR 1
39
8KC-K7553-01-00
. . ..PROTECTOR 3
37
8KC-K7552-00-00
. . ..PROTECTOR 2
36
8KC-K715T-00-00
. . ..HOOK 2
35
8KC-RA290-00-00
. . SCREW
34
8JP-RA352-00-00
. . NUT, CLIP 10
33
8KC-K7761-70-00
. . ..LABEL, WARNING 1
32
8KC-K8140-00-00
. .SHELL SIDE PANEL ASSY 2
31
8MT-K810G-00-00
SIDE PANEL COMP. (R.H)
30
8KC-RA239-00-00
SCREW, 5
29
8JP-RA345-00-00
NUT, 1
28
8KC-RA238-00-00
..SCREW, 4
27
8KC-K715R-00-00
SEAL, INTAKE
26
8JP-RA202-00-00
SCREW, TAPPING 1/4-20X0.5
25
8JP-RAK02-00-00
Палец
24
8KC-RA290-00-00
Винт
23
8KC-K715P-00-00
SHUT, INTAKE
22
8KC-K7123-00-00
Направляющая 1
21
8KC-K715N-00-00
GRILLE
20
8KC-K715L-00-00
BEZEL, VENT 1
19
8KC-K715M-00-00
BEZEL, VENT 2
18
8JP-RA2A2-00-00
SCREW, 13
17
8JP-RA352-00-00
NUT, CLIP 10
16
8MY-H5133-00-00
TAPE, REFLECTOR
15
8KC-K715K-00-00
DUCT, INTAKE FRONT
14
8KC-K715H-00-00
VENT, FRONT 1
12
8KC-K715C-00-00
INTAKE, UPPER
13
8KC-K715J-00-00
VENT, FRONT 2
11
8KC-K715F-00-00
DUCT, INTAKE 1
10
8KC-K715G-00-00
DUCT, INTAKE 2
9
8KC-K715D-00-00
SCREEN, INTAKE DUCT 1
8
8KC-K715E-00-00
SCREEN, INTAKE DUCT 2
7
8KC-K715B-00-00
INTAKE, LOWER
6
8KC-K7112-10-00
SHROUD 2
5
8KC-K7111-10-00
Защитный кожух
4
8KC-K7121-20-00
. HOOD 1
3
8MT-F197A-00-00
Капот в сборе 3
2
8KC-K7122-20-00
. HOOD 2
1
8MT-F198A-00-00
HOOD ASSY 4
