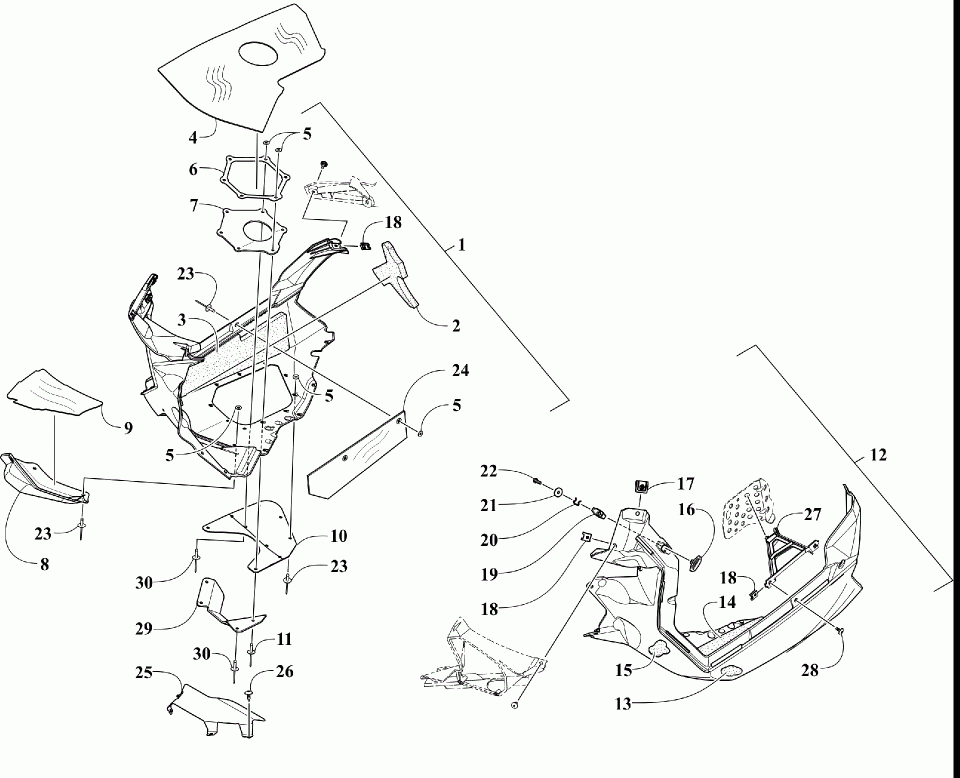

Skid plate assembly [108214]

Arctic Cat M 6000 ALPHA ONE ES 154 CHARCOAL [S2020M6DA1USB]
Arctic Cat
#oem кодцена
1
5718-790
Plate, Skid - Right - Black (inc. 2-3, 5, 8-9, and 16-23)
10
2712-102
Shield, Exhaust Outlet
11
8061-712
заклёпка
12
5718-791
Plate, Skid - Left - Black (inc. 13-22)
13
0617-765
Foam, Skid Plate - Lower - Left
14
0617-795
Foam, Skid Plate - Middle - Left
15
0617-761
Foam, Skid Plate - Front - Left
16
7606-265
Knob, Hold-Down
17
2623-005
Clip, Retaining
18
1623-939
Гайка
19
7606-296
Пластина
2
0617-776
Foam, Skid Plate - Front - Right
20
2623-155
Clip, Retaining
21
2623-171
Шайба
22
2623-211
Screw, Self-Tapping
23
8061-708
заклёпка
24
2712-099
Shield, Heat Barrier w/Grommets
25
0632-003
Shield, Heat - ECM
26
2623-166
Screw, Self-Tapping
27
7606-621
Brace
28
2623-164
Screw, Self-Tapping
29
2712-103
Дефлектор,глушителя
3
0617-794
Foam, Skid Plate - Middle - Right
30
8061-710
заклёпка
4
3612-374
Foil, Skid Plate - Right
5
0123-802
Шайба
6
3612-232
Plate, Exhaust Outlet
7
3612-231
Seal, Exhaust Outlet
8
3612-196
Shield, Resonator (inc. 9)
9
3612-329
Foil
