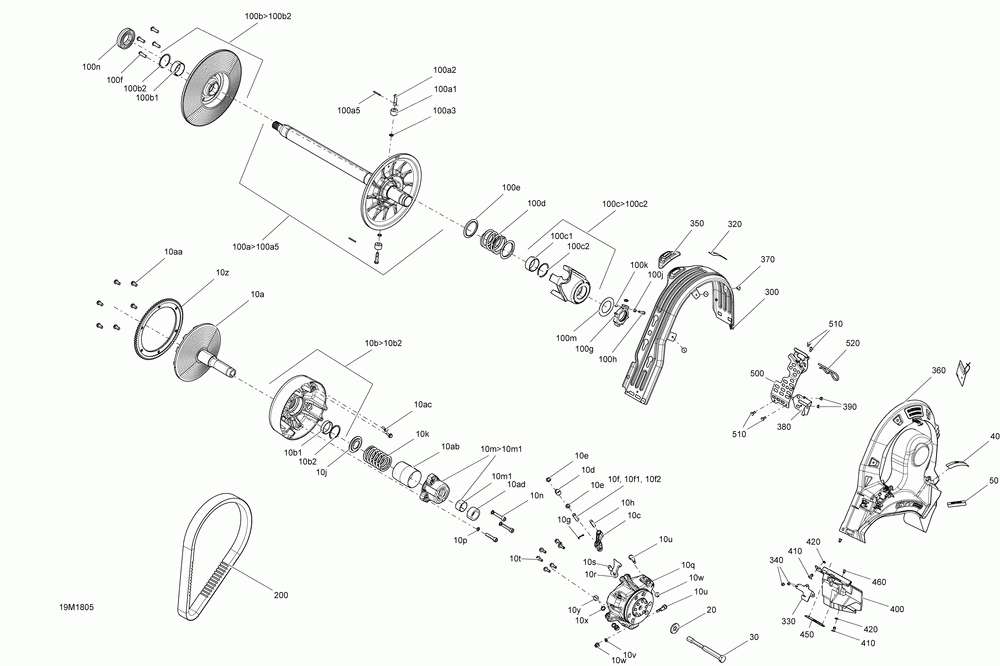

05- pulley system renegade - 800r etec

Ski-Doo (Bombardier) RENEGADE 800R E-TEC
Ski-Doo (Bombardier)
#oem кодцена
10a
417223232
Fixed Flange Ass Y
10b
417223444
Sliding Flange Ass Y Includes 10b To 10b2
10b2
417223086
Втулка
10b2
293370071
СТОПОРНОЕ КОЛЬЦО
10c
417222671
Рычаг
10d
417222947
Roller (3.000 Per Pack)
10e
417004302
Stopper Washer (6.000 Per Pack)
10f
417222594
Goupille *pin (3.000 Per Pack)
10g
250400060
Cotter Pin (3.000 Per Pack)
10h
417223164
Lever Axle (3.000 Per Pack)
10j
417222312
Spring Seat
10k
414817700
Пружина
10m
417222759
Spring Cover Ass Y Includes 10m To 10m1
10m1
417009204
Втулка
10n
205084044
Socket Head Screw M8 X 40 (5.000 Per Pack)
10p
250200009
Ribbed Lock Washer 8mm Bn791 (10.000 Per Pack)
10q
417223666
Governor Cup Ass Y
10r
417222546
Ramp 414 (3.000 Per Pack)
10s
250400050
Spring Pin M10 X 22 (3.000 Per Pack)
10t
250000418
Flanged Hex. Screw M6 X 18, Scotch Grip (6.000 Per Pack)
10u
417223501
Calibration Screw (3.000 Per Pack)
10v
417005600
Rondelle *washer (6.000 Per Pack)
10w
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
10x
732401030
O-ring (6.000 Per Pack)
10y
417223271
Slider Shoe (6.000 Per Pack)
10z
417223739
Ring Gear
10aa
250000533
Hex. Flange Screw M8 X 16 (6.000 Per Pack)
10ab
417009205
Крышка
10ac
250000416
Serrated Hex. Flange Bolt M6 (6.000 Per Pack)
10ad
417223471
Втулка
20
250200144
Conical Spring Washer M14
30
417300409
Tra 7 Bolt (m14 X 153.5 Mm)
40
516005503
Decal, English
50
516005507
Rpm Sticker, English
100a
417127387
Fix Flange Ass Y Includes 100a To 100a4
100a1
417127016
Roller (2.000 Per Pack)
100a2
417127294
Pivot Stud
100a3
250200009
Ribbed Lock Washer 8mm Bn791 (10.000 Per Pack)
100a4
250400063
Spring Pin M3 X 30 (2.000 Per Pack)
100b
417127317
Sliding Flange Ass Y Includes 100b To 100b2
100b1
417127318
Втулка
100b2
293370049
СТОПОРНОЕ КОЛЬЦО
100c
417127325
Cam Ass Y Includes 100c To 100c2
100c1
417127318
Втулка
100c2
293370049
СТОПОРНОЕ КОЛЬЦО
100d
417127137
Пружина
100e
417127116
Swivel Abutment
100f
250000757
Screw-torx Button Head M8 X 25 S.grip (4.000 Per Pack)
100g
415129604
Ajust Poulie *pulley Adjust
100h
205052544
Socket Screw M5 X 25 (10.000 Per Pack)
100j
234051410
Flat Washer M5 (10.000 Per Pack)
100k
232551414
Nut-stop Elastic Din.985 (10.000 Per Pack)
100m
417127155
Шайба
100n
504152574
Подшипник
200
417300391
Ремень
300
417300357
Belt Guard
320
516005509
Safety Belt Guard Decal
330
417300423
Front Bracket
340
390909200
Avex Rivet (50.000 Per Pack)
350
417300381
Направляющая
360
417300440
Conduit D Air *cvt Air Duct
360
417300466
Conduit D Air *cvt Air Duct
370
293150103
Black Pop Rivet 3/16" (25.000 Per Pack)
380
417300476
Пластина
390
293150103
Black Pop Rivet 3/16" (25.000 Per Pack)
395
517225900
Flat Washer (10.000 Per Pack)
400
417300430
Front Support
410
293150104
Pop Rivet 3/16" (25.000 Per Pack)
420
517225900
Flat Washer (10.000 Per Pack)
450
417300421
Reinforcement Plate
460
390909100
Avex Rivet (50.000 Per Pack)
500
417300448
Belt Guard Bracket
510
250000742
Torx-truss M/s M5 X 14 Nylon
520
114045200
Goup.surete *pin-hair (5.000 Per Pack)
