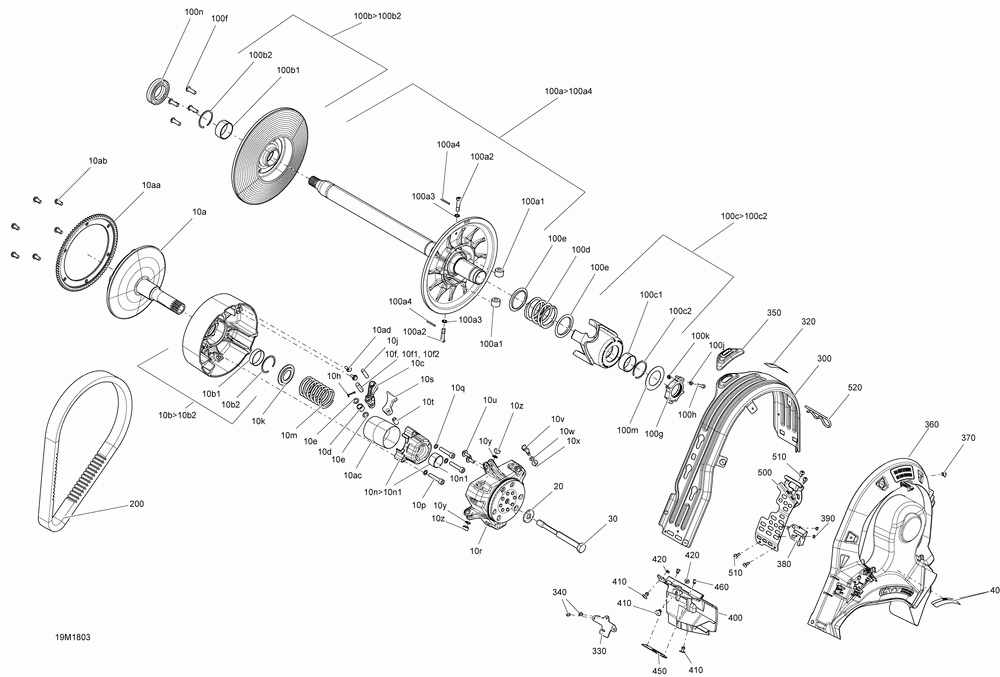

05- pulley system summit - 600 ho etec

Ski-Doo (Bombardier) SUMMIT 600HO E-TEC
Ski-Doo (Bombardier)
#oem кодцена
10a
417222937
Fixed Flange Ass Y
10b
417222181
Sliding Flange Ass Y Includes 10b To 10b2
10b1
417222758
Втулка
10b2
293370037
СТОПОРНОЕ КОЛЬЦО
10c
417222671
Рычаг
10d
417222947
Roller (3.000 Per Pack)
10e
417004302
Stopper Washer (6.000 Per Pack)
10f
417004308
Goupille *pin Sea Level (3.000 Per Pack)
10f1
417222477
Threaded Pin High Altitude (3.000 Per Pack)
10f2
250000410
Socket Set Screw M6 X 16 High Altitude (3.000 Per Pack)
10h
250400060
Cotter Pin (3.000 Per Pack)
10j
417223164
Lever Axle (3.000 Per Pack)
10k
417222312
Spring Seat
10m
414817700
Ressort Embra. *spring-clutch Sea Level
10m
415015400
Spring, Violet/green High Altitude
10n
417007500
Spring Cover Ass Y Includes 10n To 10n1
10n1
417009204
Втулка
10p
205084044
Socket Head Screw M8 X 40 (5.000 Per Pack)
10q
250200009
Ribbed Lock Washer 8mm Bn791 (10.000 Per Pack)
10r
417223669
Governor Cup Ass Y
10s
417222515
Ramp 412 Sea Level (3.000 Per Pack)
10s
417223096
Ramp 440 High Altitude (3.000 Per Pack)
10t
250400050
Spring Pin M10 X 22 (3.000 Per Pack)
10u
250000418
Flanged Hex. Screw M6 X 18, Scotch Grip (6.000 Per Pack)
10v
417223501
Calibration Screw (3.000 Per Pack)
10w
417005600
Rondelle *washer (6.000 Per Pack)
10x
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
10y
732401030
O-ring (6.000 Per Pack)
10z
417222992
Slider Shoe Sea Level (6.000 Per Pack)
10z
417223271
Slider Shoe High Altitude (6.000 Per Pack)
10aa
417223738
Ring Gear
10ab
250000533
Hex. Flange Screw M8 X 16 (6.000 Per Pack)
10ac
417009205
Крышка
10ad
250000412
Flanged Hex. Screw M6 X 12, Scotch Grip (6.000 Per Pack)
20
250200144
Conical Spring Washer M14
30
417120000
Drive Pulley Bolt
40
516005503
Decal, English
100a
417127389
Fix Flange Ass Y Includes 100a To 100a4
100a1
417127016
Roller (2.000 Per Pack)
100a2
417127294
Pivot Stud
100a3
250200009
Ribbed Lock Washer 8mm Bn791 (10.000 Per Pack)
100a4
250400063
Spring Pin M3 X 30 (2.000 Per Pack)
100b
417127317
Sliding Flange Ass Y Includes 100b To 100b2
100b1
417127318
Втулка
100b2
293370049
СТОПОРНОЕ КОЛЬЦО
100c
417127376
Cam Ass Y Includes 100c To 100c2
100c1
417127318
Втулка
100c2
293370049
СТОПОРНОЕ КОЛЬЦО
100d
417127039
Пружина
100e
417127116
Swivel Abutment
100f
250000757
Screw-torx Button Head M8 X 25 S.grip (4.000 Per Pack)
100g
415129604
Ajust Poulie *pulley Adjust
100h
205052544
Socket Screw M5 X 25 (10.000 Per Pack)
100j
234051410
Flat Washer M5 (10.000 Per Pack)
100k
232551414
Nut-stop Elastic Din.985 (10.000 Per Pack)
100m
417127155
Шайба
100n
504152574
Подшипник
200
417300383
Ремень вариатора
300
417300357
Belt Guard
320
516005509
Safety Belt Guard Decal
330
417300423
Front Bracket
340
390909200
Avex Rivet (50.000 Per Pack)
350
417300381
Направляющая
360
417300440
Conduit D Air *cvt Air Duct
370
293150103
Black Pop Rivet 3/16" (25.000 Per Pack)
380
417300445
Стопор
390
390909200
Avex Rivet (50.000 Per Pack)
400
417300430
Front Support
410
293150104
Pop Rivet 3/16" (25.000 Per Pack)
420
517225900
Flat Washer (10.000 Per Pack)
450
417300421
Reinforcement Plate
460
390909100
Avex Rivet (50.000 Per Pack)
500
417300448
Belt Guard Bracket
510
250000742
Torx-truss M/s M5 X 14 Nylon
520
114045200
Goup.surete *pin-hair (5.000 Per Pack)
