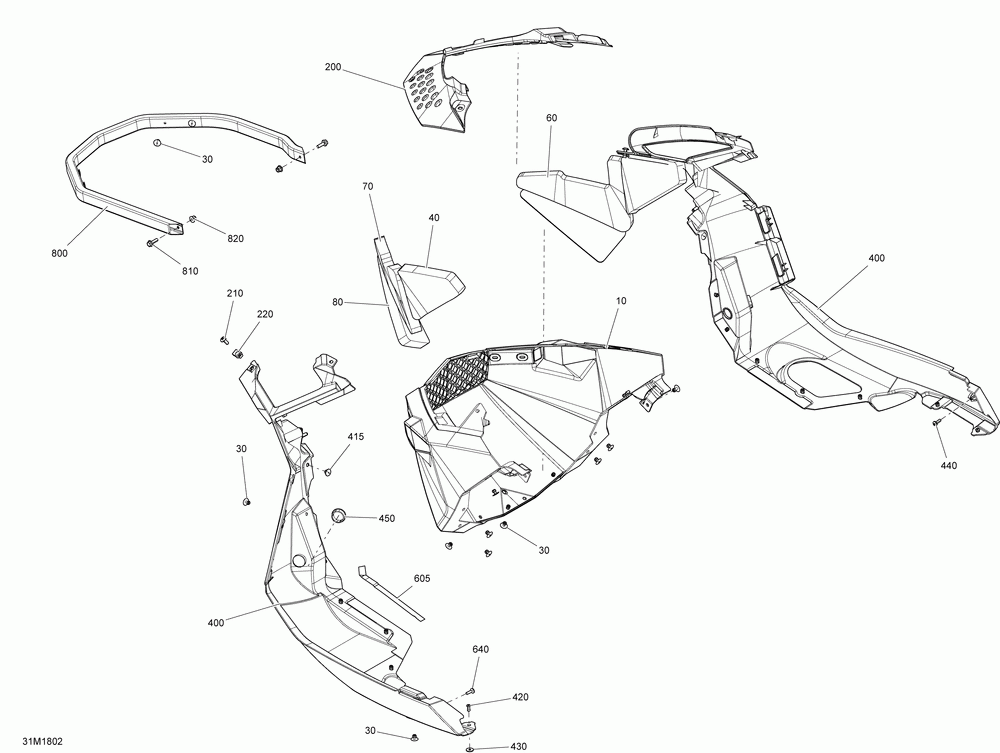

09- bottom pan engine 600 carb - all package

Ski-Doo (Bombardier) MXZ 600 CARB
Ski-Doo (Bombardier)
#oem кодцена
10
502006971
Deep Black Front Bottom Pan
30
293150104
Pop Rivet 3/16" (25.000 Per Pack)
40
502007210
Rh Foam Upper
50
502007211
Lh Foam Upper
60
502007212
Rh Middle Foam
70
502007213
Lh Middle Foam
80
502007214
Rh Lower Foam
90
502007215
Lh Lower Foam
200
502007068
Deep Black Bottom Pan Cap
210
250000705
Torx Truss Screw M6 X 20
220
250100113
Panel Nut, M6 X 1.0 (5.000 Per Pack)
400
502006831
Правый нижний корпус
415
293150103
Black Pop Rivet 3/16" (25.000 Per Pack)
420
390402300
Pop Rivet 3/16" (50.000 Per Pack)
430
517124300
Rondelle *washer (10.000 Per Pack)
440
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
450
414916600
Nylon Cap (10.000 Per Pack)
600
502007252
Black Lh Bottom Pan
605
293250087
Gasket, Neoprene
640
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
800
502007116
Black Front Bumper
810
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
820
233261416
Elastic Flanged Nut M6
