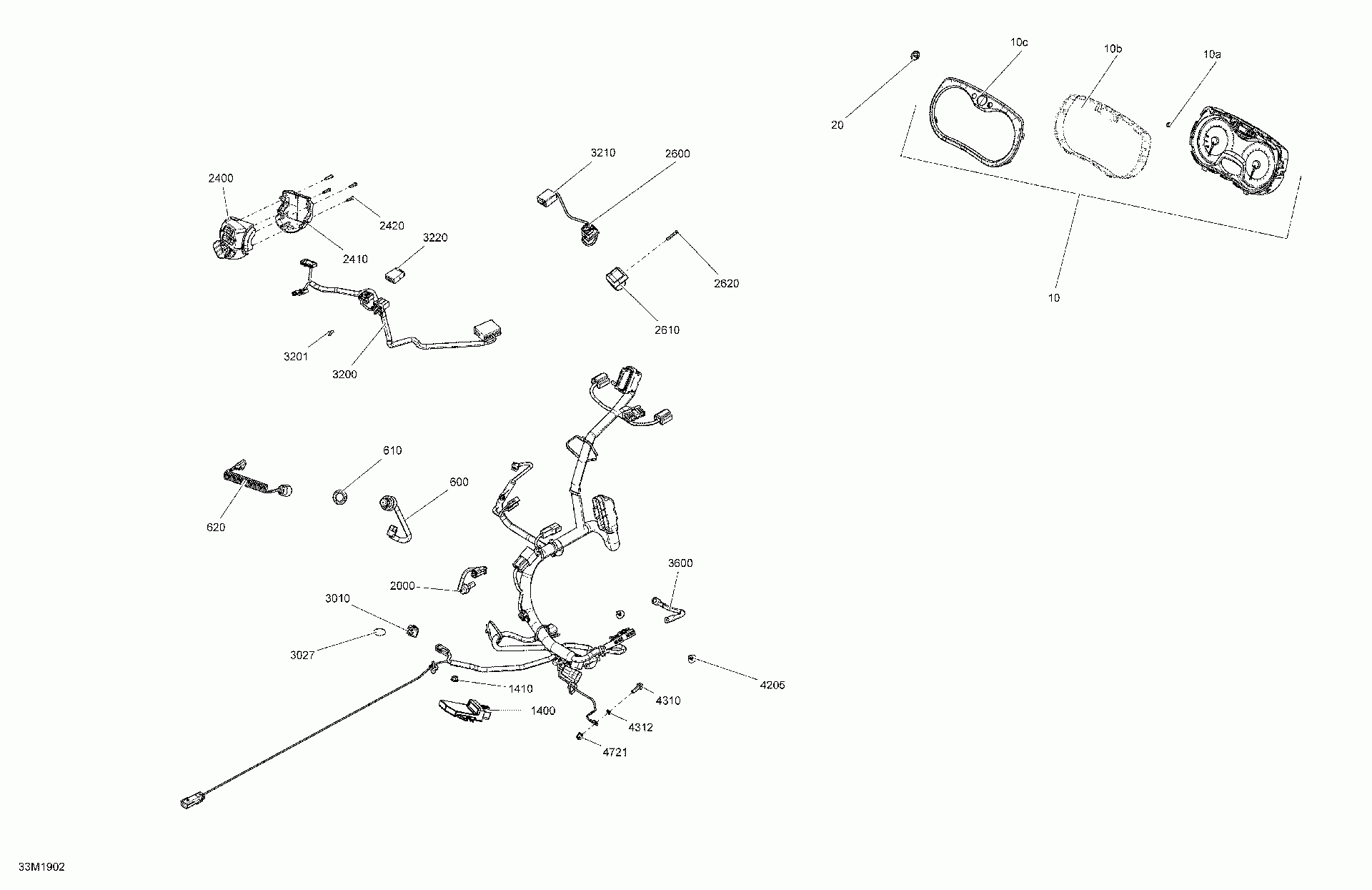

10- electrical mxz & renegade - 600 carb

Ski-Doo (Bombardier) RENEGADE 600 CARB
Ski-Doo (Bombardier)
#oem кодцена
6000
515175851
Extension
4830
710000495
Protector Cap
4721
233261414
Hex. Flanged Elastic Nut M6 x 1.0
4820
232561434
Elastic Stop Nut M6
4700
515176358
Ground Wire
4720
250200041
Lock Washer Serrated M6
4371
224061201
Шайба
4361
233261416
Elastic Flanged Nut M6 X 1.0
4370
207661644
Hex. Flanged Screw M6 X 16
4360
207662044
Hex. Flanged Screw M6 X 20
4340
515177266
Battery Strip
4350
278003012
Реле стартера
4320a
250000282
Battery Bolt Kit
4312
234461608
External Serrated Lock Washer 6 mm
4313
250200082
Шайба
4311
207661244
Hex. Flanged Screw M6 X 12
4300
515177264
Battery Support
4310
207662044
Hex. Flanged Screw M6 X 20
4260
293450275
Вставка
4220
234061410
Flat Washer 6 mm
4240
232561434
Elastic Stop Nut M6
4210
232561434
Elastic Stop Nut M6
4207
515177066
Зажим
4200
515177208
Battery/Starter Wire
3600
515177289
Ground Wire
3400
515177832
Electrical Start Harnes
3220
515175662
Male Terminal Housing, 6 Circuits
3210
515175817
Male Terminal Housing, 8 Circuits
3201
250000690
Pan Screw Forming, 7500C
3200
515177609
Steering Wiring Harness
3027
518325560
Adhesive Patch
3010
515176681
Lock
3000
515177980
Main Harness
2620
250000263
Torx Screw #8-18
2600a
515175232
Male Terminal
2610
515177310
Kill Switch Support
2600
515177362
Kill Switch
2400a
515176088
Start/RER Button
2410
515175926
Housing Switch Plate
2420
250000263
Torx Screw #8-18
2000
515177814
Sensor Temperature
2400
515177022
LH Housing
1400
515176364
Реле регулятора
1410
233261414
Hex. Flanged Elastic Nut M6 x 1.0
620
515178284
DESS
600
515177249
DESS Switch
610
278002963
Safety Nut (DESS Switch)
10c
415129349
Линза
20
516006224
BRP Logo, 20 mm
10b
415129370
Gauge Ring
10
515177914
Speedometer
10a
415129355
Speedometer Button
