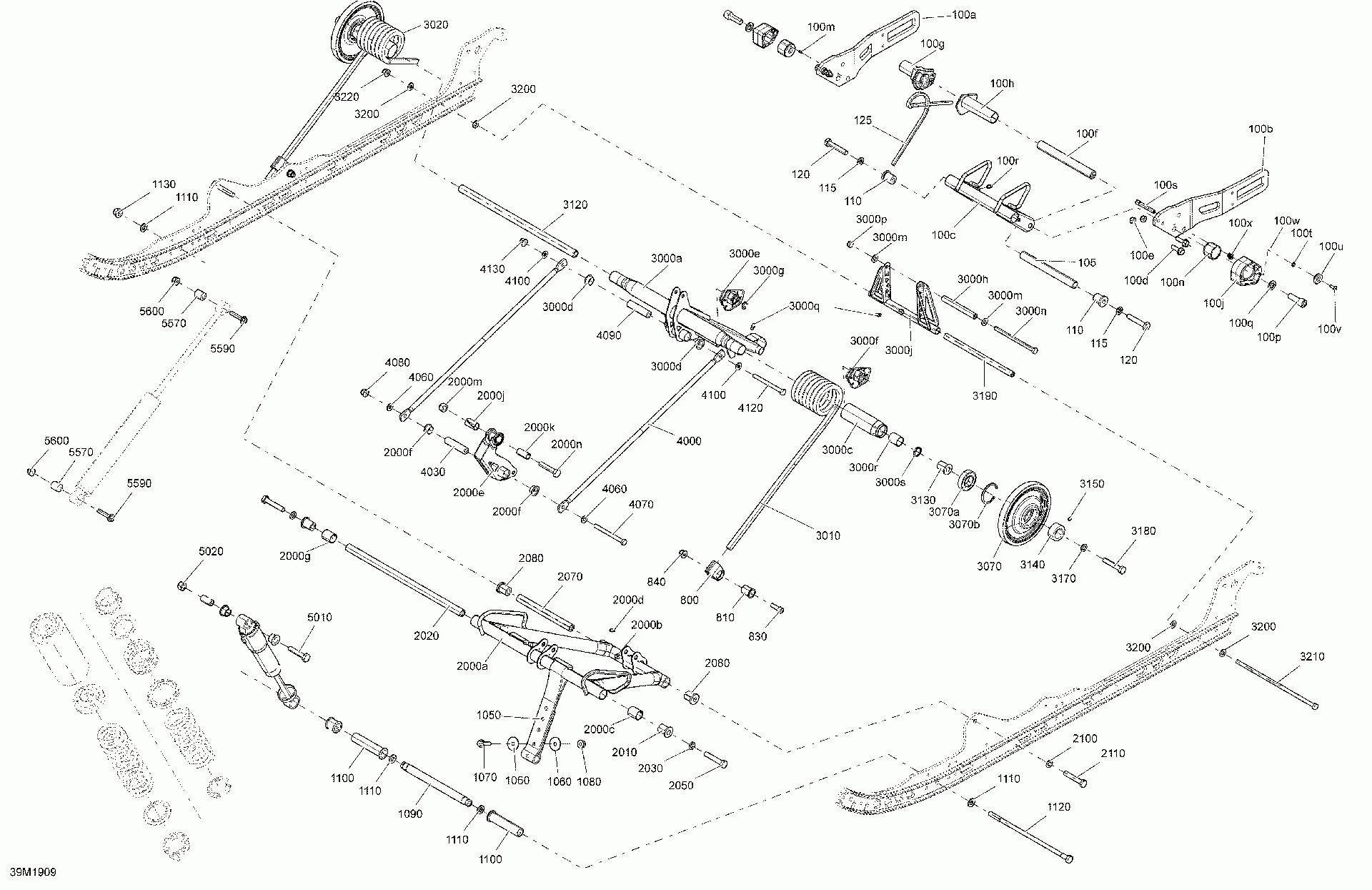

08- rear suspension - upper section - north america

Ski-Doo (Bombardier) RENEGADE 600 CARB
Ski-Doo (Bombardier)
#oem кодцена
5600
233281466
Elastic Flang Nut M8
7000
503192771
Black, Wheel Cap
5590
207684044
Hex. Flanged Screw M8 X 40
4130
233281466
Elastic Flang Nut M8
5570
414936000
Втулка
4100
503192494
Шайба
4120
503193372
Screw M8 X 90
3210
503192440
Bolt M8 X 248mm
3220
233281466
Elastic Flang Nut M8
4000
503192255
Linkage Rod
4030
503190643
Axle Bar (Long)
4060
503192494
Шайба
4070
503193372
Screw M8 X 90
4080
233281466
Elastic Flang Nut M8
4090
503190643
Axle Bar (Long)
3200
503192494
Шайба
3190
503189156
Pivot Arm Axle
3180
250000605
Hex. ScrewS.GRIP M10 X 55
3170
503192496
Шайба
3150
206260844
Socket Set Screw M6 X 8
3140
503168800
Retaining Ring
3130
503191262
Втулка
3120
503191215
Upper Shaft
3070b
415129780
Retaining Ring
3070a
503193548
Подшипник
3020
503192080
RH Spring
3010
503192081
LH Spring
3000s
503191651
Шайба
3000r
503191556
Extended Bushing
3000q
408200700
Grease Fitting
3000p
232581414
Hex. Elastic Stop Nut M8
3000n
732601197
Bolt M8, Short
3000m
503192494
Шайба
3000k
232061404
Hexagonal Nut M6
3000j
503191209
Pivot Arm
3000h
503144300
Upper Axle, Pivot Arm
3000g
293370013
E-Circlip
3000f
503191566
RH Cam Adjuster
3000b
232061404
Hexagonal Nut M6
3000c
572080700
Втулка
3000d
503191555
Swivel Bushing
3000e
503191565
LH Cam Adjuster
2110
250000605
Hex. ScrewS.GRIP M10 X 55
3000a
503192253
Задний рычаг
2100
250200143
Шайба
2070
503191279
Lower Shaft
2080
503189324
Втулка
2030
503192496
Шайба
2050
250000605
Hex. ScrewS.GRIP M10 X 55
2020
503191215
Upper Shaft
2010
503191262
Втулка
2000m
207005044
Hex. Screw M10 X 1.5 X 50
2000n
233601416
Elastic Locking Nut M10 X 1.5
2000k
503189282
Втулка
2000j
503193037
Втулка
2000f
503191555
Swivel Bushing
2000g
503191552
Втулка
2000d
408200700
Grease Fitting
2000e
503192211
Rocker
1050
503192360
Stopper Strap
1060
250200128
Flat Washer 8 mm
1070
207683044
Hex. Flanged Screw M8 X 30
1080
233281466
Elastic Flang Nut M8
1090
503193435
Pivot Axle
1100
503191259
Center Bushing
1110
250200143
Шайба
1120
503193227
Bolt M10 X 251MM
1130
233201466
Flanged Elastic Nut M10
2000a
503191752
Front Arm
2000b
232061404
Hexagonal Nut M6
2000c
503191556
Extended Bushing
840
233281466
Elastic Flang Nut M8
830
205082554
Socket Screw M8 X 25
810
503190754
Retainer Cushion
800
503191183
Spring Support
