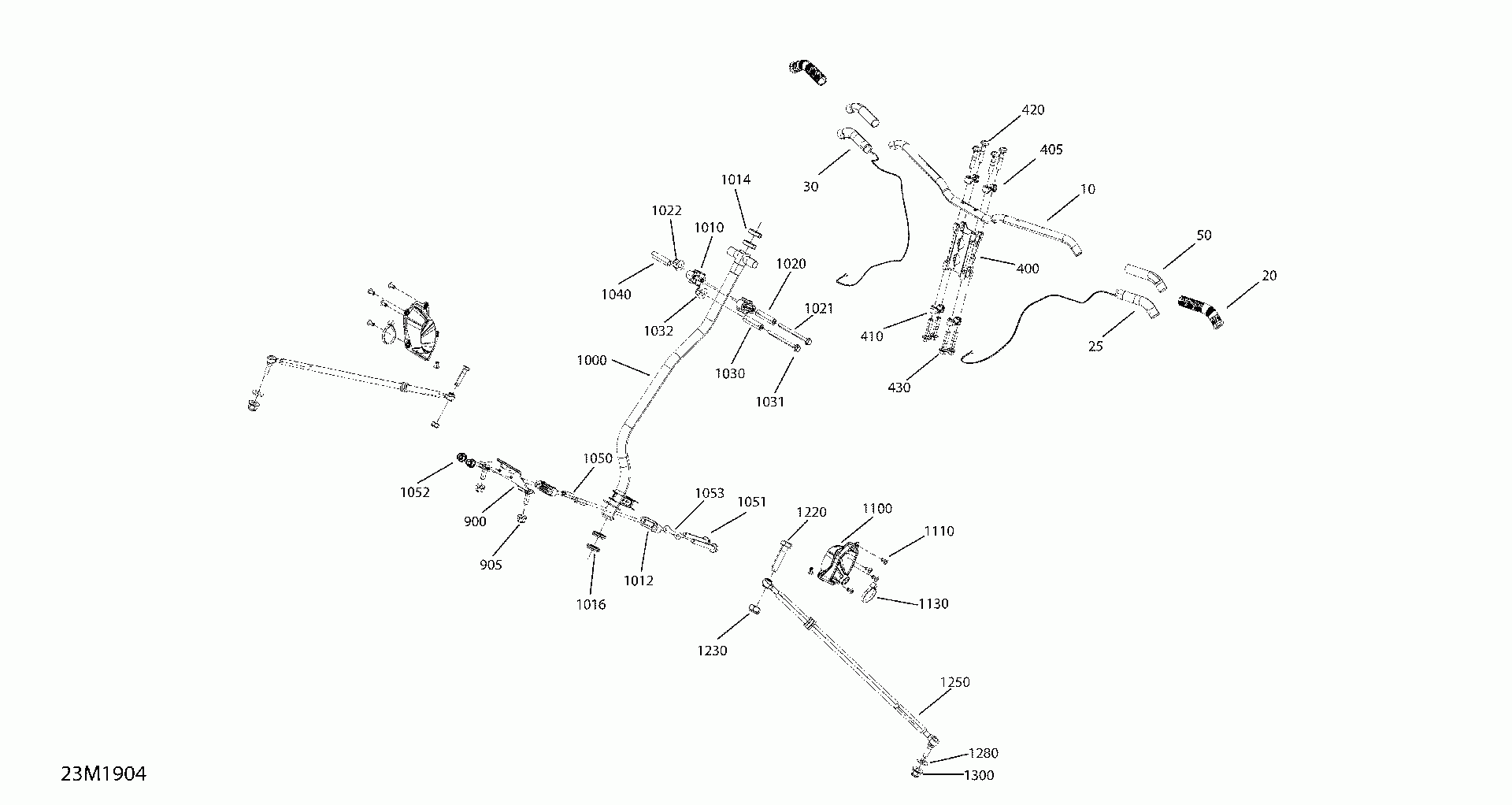

07- steering expedition sport - rev gen4

Ski-Doo (Bombardier) EXPEDITION SPORT 900 ACE
Ski-Doo (Bombardier)
#oem кодцена
10
506152825
Руль
20
506152560
Grip 148mm
25
506152856
Heated Film
30
506152857
RH 32 Watts Heated Film
50
506152548
Isolant
405
506152894
Суппорт
410
506152894
Суппорт
420
250000904
Button Head Torx Screw M8 X 38
430
250000852
Hexagonal Flange Screw M8 X 1.25 x 60
900
506152787
Пластина
905
233281416
Hex. Elastic Flanged Nut M8
1000
506153014
Main Tube
1010
506152219
Upper Half Housing
1012
506153048
Lower Half-Housing
1014
506152292
Upper Vibration Ring
1016
506152518
Lower Vibration Ring
1020
506152297
Housing Bushing
1021
207667554
Screw Hex Flange M6 X 75
1022
233261416
Elastic Flanged Nut M6 X 1.0
1030
506152297
Housing Bushing
1031
207667554
Screw Hex Flange M6 X 75
1032
233261416
Elastic Flanged Nut M6 X 1.0
1040
506152297
Housing Bushing
1050
506152937
Housing Bushing
1051
207687044
Hex. Flanged Screw M8 X 70
1052
233281416
Hex. Elastic Flanged Nut M8
1053
506152938
Stopper Plate
1100
506153109
чехол
1110
293150008
Pop Rivet 3/16
1130
414115200
Стяжка 180мм
1220
207083544
Hex. Screw M8 X 35
1230
232581414
Hex. Elastic Stop Nut M8
1280
506152582
Шайба
1300
233201464
Hex. Elast. Flanged Nut M10 x 1.5
