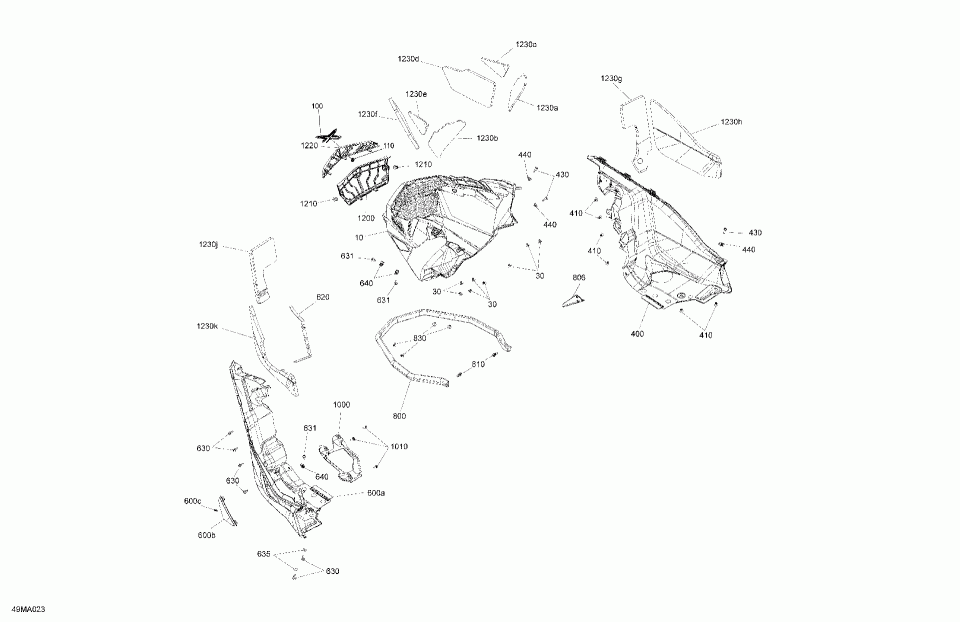

Кузов -поддон

Ski-Doo (Bombardier) MXZ 600RS - Europe
Ski-Doo (Bombardier)
#oem кодцена
10
502007673
Front Bottom Pan.
100
291004770
Emblem X.
1000
502007670
Protection Plate.
1010
250000725
Screw M4 X 16.
110
250100206
Push Nut.
1200
508000958
Belly Pan Filter.
1210
293150230
Tuflok Plastic Rivet.
1220
508000959
Upper Hood Filter.
1230
502007892
Foam. Not shown.
1230a
502007788
Foam.
1230b
502007789
Foam.
1230c
502007545
RH Bottom Pan Central Foam.
1230d
502007800
Foam.
1230e
502007546
LH Bottom Pan Central Foam.
1230f
502007799
Foam.
1230g
502007547
RH Bottom Pan Upper Foam.
1230h
502007548
RH Bottom Pan Lower Foam.
1230j
502007549
LH Bottom Pan Upper Foam.
1230k
502007550
LH Bottom Pan Lower Foam.
30
293150104
Pop Rivet 3/16
400
502007929
RH Bottom Pan.
410
293150104
Pop Rivet 3/16
430
250000586
Torx Truss M5 X 20.
440
250000958
Panel Nut M5 X 0.8.
600a
502007675
LH Bottom Pan.
600b
502007676
Door - Bottom Pan.
600c
269800431
Hairpin.
620
293200003
Neoprene Seal (1PAC=3M).
630
250000586
Torx Truss M5 X 20.
631
250000586
Torx Truss M5 X 20.
635
250200025
Washer M5.
640
250000958
Panel Nut M5 X 0.8.
800
502007460
Front Bumper.
810
207552044
Hex. Flanged Screw M5 X 20, Scotch Grip.
830
293150104
Pop Rivet 3/16
