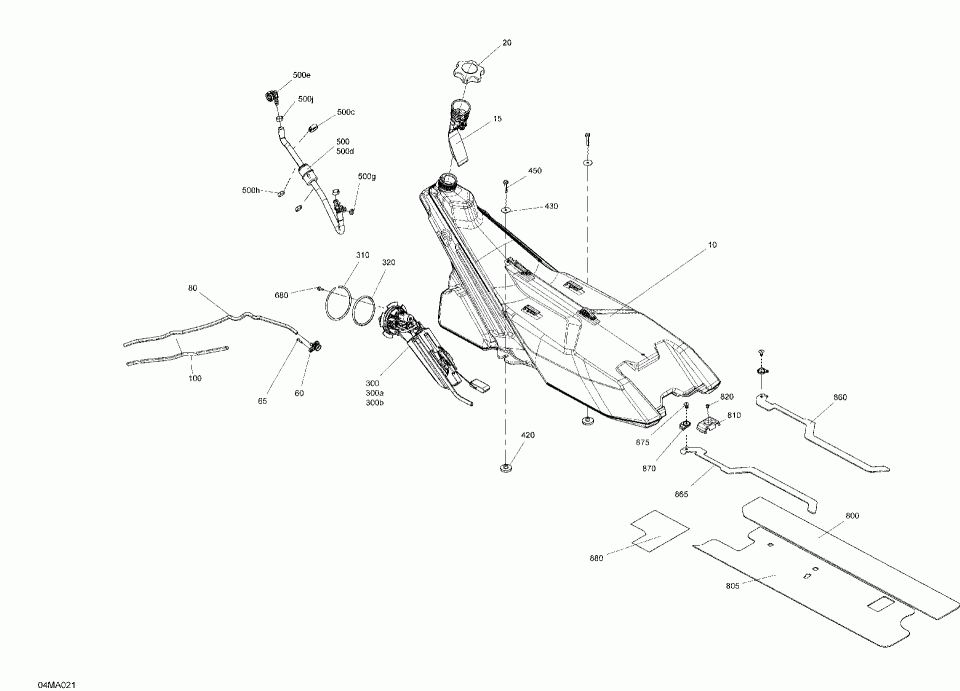

Топливная система

Ski-Doo (Bombardier) RENEGADE 900 ACE - Adrenaline - Europe
Ski-Doo (Bombardier)
#oem кодцена
10
513033975
Fuel Tank.
100
503195447
Protector Tube.
20
513033942
Fuel Tank Cap.
300a
415130069
Gas Filter.
300b
415130087
Fuel Level Sensor.
310
513033798
Circlip.
320
513033862
КОЛЬЦО
420
513033807
Bushing.
430
503193995
Washer.
450
207663544
Hex. Flanged Screw M6 X 35.
500c
513033910
Ring.
500d
513033719
Filter.
500e
293710105
Elbow Fitting 90°.
500g
513033668
КОЛЬЦО
500h
293650125
Oetiker Clamp.
500j
293650053
Crimp Clamp.
60
513033849
Check Valve.
65
250000918
Truss Torx Screw K40 X 16.
680
250000911
Hex. Flanged Screw M5 X 16.
80
415080200
Hose, Polyurethane, iD 5.7mm (10M Roll).
800
513033913
Insulated Foam.
805
513033914
Insulated Foam.
810
513033826
Tank Guide.
820
390402200
Pop Rivet 3/16
860
513033915
Foam.
865
513033916
Foam.
870
513033917
Retainer Plate.
875
293150104
Pop Rivet 3/16
880
516009818
Fuel Tank Protection Decal.
