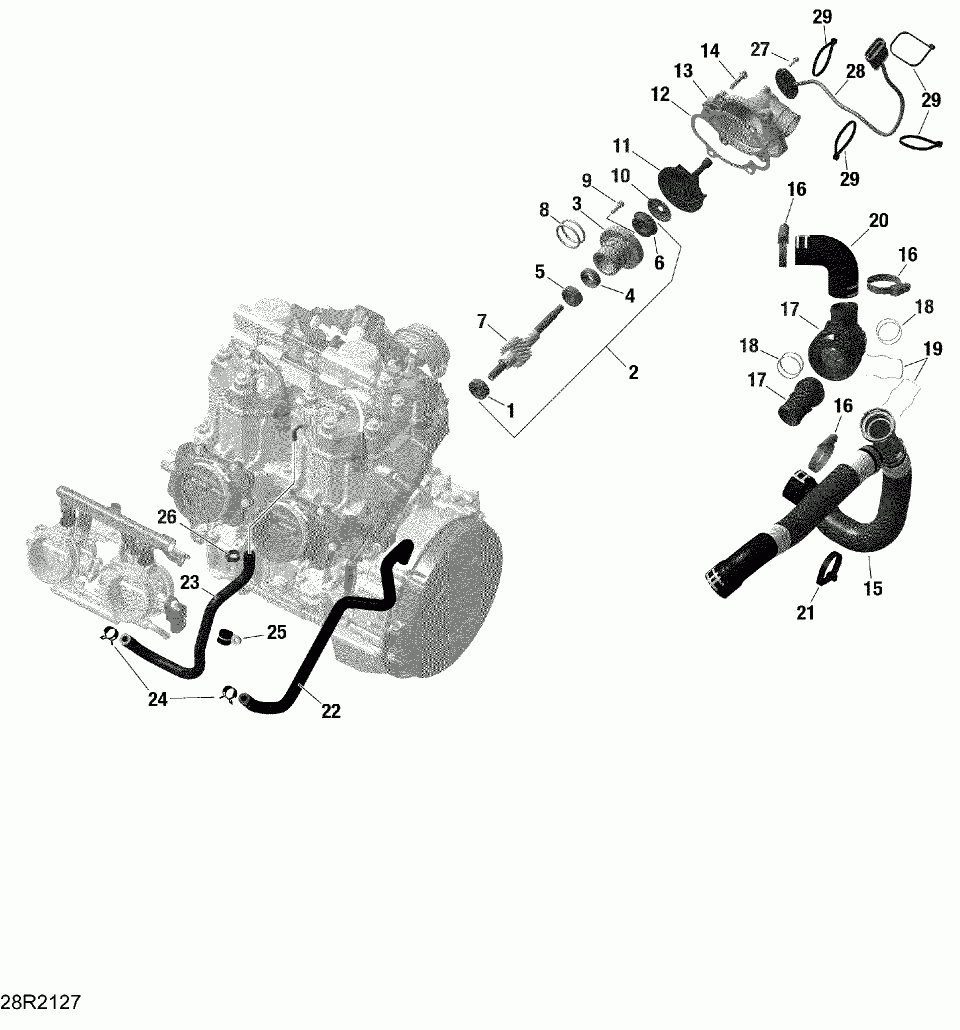

Система охлаждения двигателя

Ski-Doo (Bombardier) SUMMIT 850 E-TEC - X with EXPERT Package - 154
Ski-Doo (Bombardier)
#oem кодцена
1
420232100
Ball Bearing.
10
420944035
Cover Washer.
11
420922809
Impeller.
12
420430053
Gasket.
13
420822288
Waterpump Housing.
14
420440234
Flanged Torx Screw M6 X 25.
15
420822803
Molded Hose.
16
420951120
Clamp 26-38MM.
17
420822836
Thermostat Housing. Includes 17 to 18.
18
420430062
КОЛЬЦО
19
420939344
Spring Clip.
2
420891478
Water Pump Shaft. Includes 2 to 9.
20
420822820
Hose Return.
21
420651817
Locking Tie 175 X 4 MM.
22
420201516
Molded Hose.
23
420201512
Molded Hose.
24
420853511
Clamp.
25
420851250
Clamp.
26
420851458
Clamp.
27
420440292
Allen Screw M4 X12.
28
420864400
Angle Sensor.
29
420651817
Locking Tie 175 X 4 MM.
3
420847933
Step Collar.
4
420230198
Oil Seal.
5
420232100
Ball Bearing.
6
420650370
Rotary Seal.
8
420950890
КОЛЬЦО
9
420840514
Allen Screw M5 x 16.
