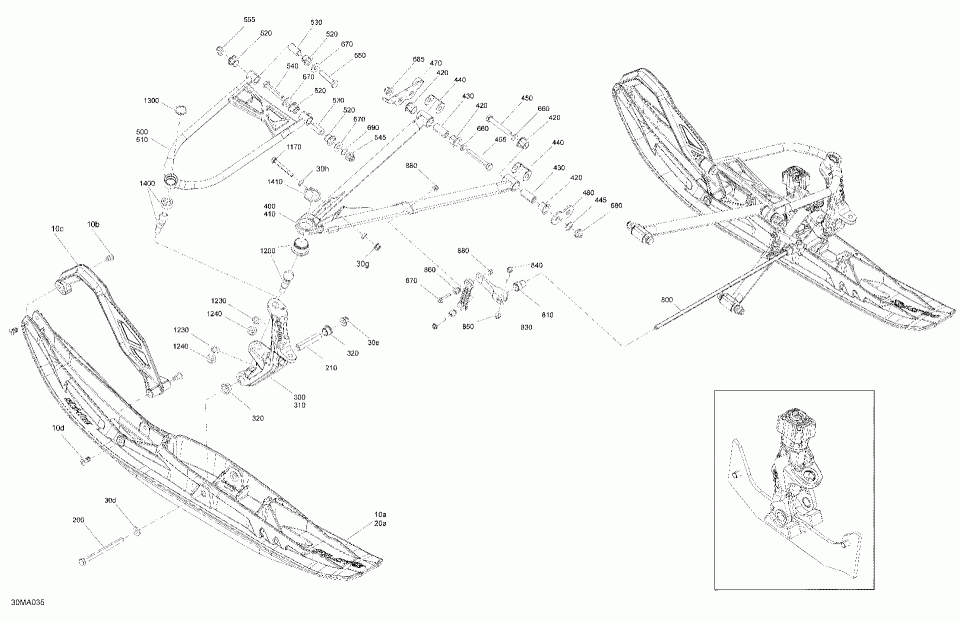

05- suspension - front - ski pilot tx

Ski-Doo (Bombardier) MXZ 850 E-TEC - X - North America
Ski-Doo (Bombardier)
#oem кодцена
10a
505074776
Deep Black, LH Ski.
10b
505071812
Retainer 17mm long.
10c
505075029
Can-Am Red, Ski Handle. Model Deep Black - Viper Red Handle.
10c
505074778
Deep Black, Ski Handle. Model Deep Black - Deep Black Handle.
10d
505072133
Retainer 23mm Long.
1170
250000824
Hexagonal Flange Screw M8 X 58.
1200
505074133
Ball Joint.
1230
503192491
Washer.
1240
232521464
Hex Elastic Nut M12 X 1.25.
1300
293370070
Circlip.
1400
505072913
Upper Ball Joint.
1410
293370098
Snap Ring.
200
250000703
Hex. Screw M10 X 130.
20a
505074777
Deep Black, RH Ski.
210
505073691
Ski Axle.
300
505075020
Can-Am Red, LH Ski Leg. Model with Viper Red Ski Leg.
300
505074991
Deep Black, LH Ski Leg. Model with Deep Black Ski Leg.
30d
503192496
Washer.
30e
233201464
Hex. Elast. Flanged Nut M10 x 1.5.
30g
233281466
Elastic Flang Nut M8.
30h
505073892
Spacer.
310
505075021
Can-Am Red, RH Ski Leg. Model with Viper Red Ski Leg.
310
505074992
Deep Black, RH Ski Leg. Model with Deep Black Ski Leg.
320
505072690
Leg Bushing.
400
505074934
LH Lower Suspension Arm.
410
505074935
RH Lower Suspension Arm.
420
505072208
Bushing.
430
505072209
Sleeve.
440
505072634
Wear Plate.
445
505072448
КОЛЬЦО
450
250001024
Screw Hex. M10 X 70.
455
250001024
Screw Hex. M10 X 70.
470
505073723
Wear Plate.
480
505073844
Plate.
500
505074760
LH Upper Suspension Arm.
510
505074761
RH Upper Suspension Arm.
520
505072250
Bushing.
530
505072143
Sleeve.
540
250001023
Screw Hex. M10 X 60.
545
250100165
Hex. Flanged Elastic Nut M10.
550
250001023
Screw Hex. M10 X 60.
555
250100165
Hex. Flanged Elastic Nut M10.
660
503189564
Washer.
670
505072392
Washer.
680
250100165
Hex. Flanged Elastic Nut M10.
685
250100165
Hex. Flanged Elastic Nut M10.
690
505072448
КОЛЬЦО
800
505074719
Stabiliser.
810
505072064
Bushing.
830
505073731
Stabilisator Lever.
840
207663056
Hex Flanged Screw M6 X 1.0 X 30.
850
233261466
Hex. Flanged Elastic Nut M6.
860
505072204
Sway Bar Double Joint Link.
870
207663056
Hex Flanged Screw M6 X 1.0 X 30.
880
233261466
Hex. Flanged Elastic Nut M6.
