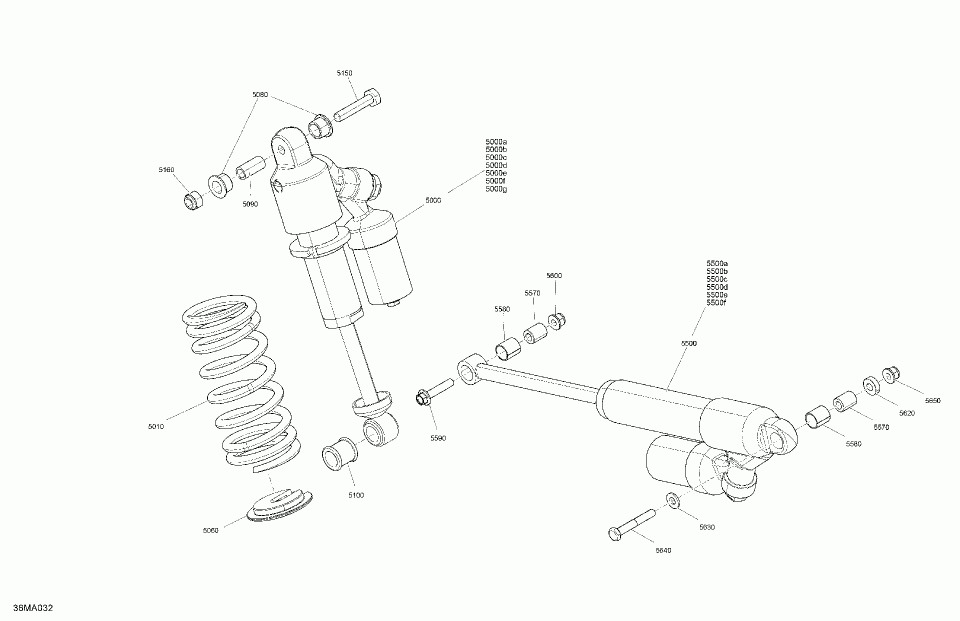

Подвеска-задний амортизатор

Ski-Doo (Bombardier) MXZ 600RS - North America
Ski-Doo (Bombardier)
#oem кодцена
5000
503195820
Center Shock. Included 5000 to 5000g.
5000a
415093807
КОЛЬЦО
5000b
415093806
Piston Ring.
5000c
505070398
Air Valve.
5000d
505070399
Screw.
5000e
505070400
КОЛЬЦО
5000f
715900076
Circlip En C.
5000g
415093804
КОЛЬЦО
5010
503195824
Spring.
5060
503196103
Stopper Spring.
5080
503189117
Bushing Urethane.
5090
503189282
Bushing.
5100
503189271
Bushing.
5150
207005044
Hex. Screw M10 X 1.5 X 50.
5160
233601466
Elastic Locking Nut M10.
5500
503195821
Rear Shock. Included 5500 to 5500f.
5500a
415093806
Piston Ring.
5500b
505070398
Air Valve.
5500c
505070399
Screw.
5500d
505070400
КОЛЬЦО
5500e
715900076
Circlip En C.
5500f
415093804
КОЛЬЦО
5570
503192606
Rear Shock Axle.
5580
505072663
Leg Cushion.
5590
207684044
Hex. Flanged Screw M8 X 40.
5600
233281466
Elastic Flang Nut M8.
5620
503190526
Spacer.
5630
503192494
Washer.
5640
207085556
Hex. Screw M8 X 55.
5650
233281466
Elastic Flang Nut M8.
