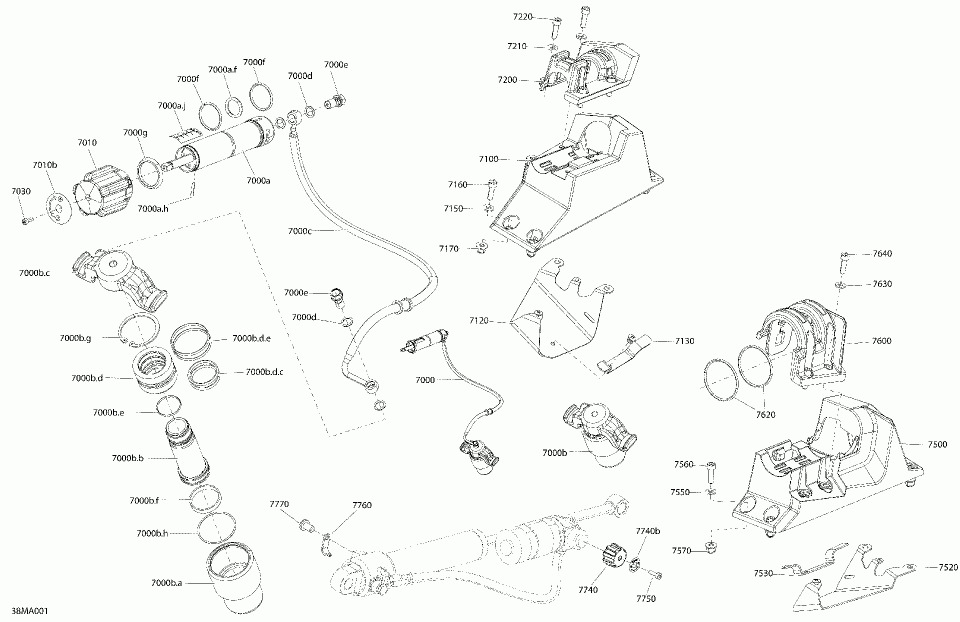

05- suspension - qas - quick adjustable system

Ski-Doo (Bombardier) RENEGADE 850 E-TEC - X - North America
Ski-Doo (Bombardier)
#oem кодцена
7000a.f
293300036
КОЛЬЦО
7000a.h
250400014
Spring Pin.
7000a.j
516004917
Adjustment Decal.
7000b.a
503192795
Cylinder.
7000b.b
503193779
Piston.
7000b.c
503192633
Spring Bracket.
7000b.d
503193485
Holder. Included 7000b.d to 7000b.d.e.
7000b.d.c
293300068
КОЛЬЦО
7000b.d.e
503192832
КОЛЬЦО
7000b.e
293300039
КОЛЬЦО
7000b.f
503192833
Wear Ring.
7000b.g
503192834
Retaining Ring.
7000b.h
503193014
КОЛЬЦО
7000c
503193476
Connector Hose.
7000d
705601628
Copper Washer.
7000e
705600628
Banjo Bolt.
7000f
293250269
КОЛЬЦО
7000g
503192825
Seal.
7010b
516004751
Sticker Knob Adjuster.
7030
205541660
Socket Screw M4 X 16 (Scotch Grip).
7100
503194686
LH Support.
7120
503196022
LH Hose Guard.
7130
503196020
Retaining Plate.
7150
234061600
Stainless, Flat Washer M6.
7160
205062560
Socket Head Screw M6 X 25.
7170
233261466
Hex. Flanged Elastic Nut M6.
7200
503192956
LH Half Housing.
7210
234061600
Stainless, Flat Washer M6.
7220
205062060
Socket Head Screw M6 X 20.
7500
503194685
RH Support.
7520
503196023
RH Hose Guard.
7530
503196020
Retaining Plate.
7550
234061600
Stainless, Flat Washer M6.
7560
205062560
Socket Head Screw M6 X 25.
7570
233261466
Hex. Flanged Elastic Nut M6.
7600
503192957
RH Half-Housing.
7620
293250085
КОЛЬЦО
7630
234061600
Stainless, Flat Washer M6.
7640
205062060
Socket Head Screw M6 X 20.
7740b
516004752
Shock Knob Adjustment Decal.
7750
250000644
Allen Screw M3 X 0.5 X 10.
7760
503193166
Plate.
7770
205961060
Socket Head Screw M6 X 10, Scotch Grip.
