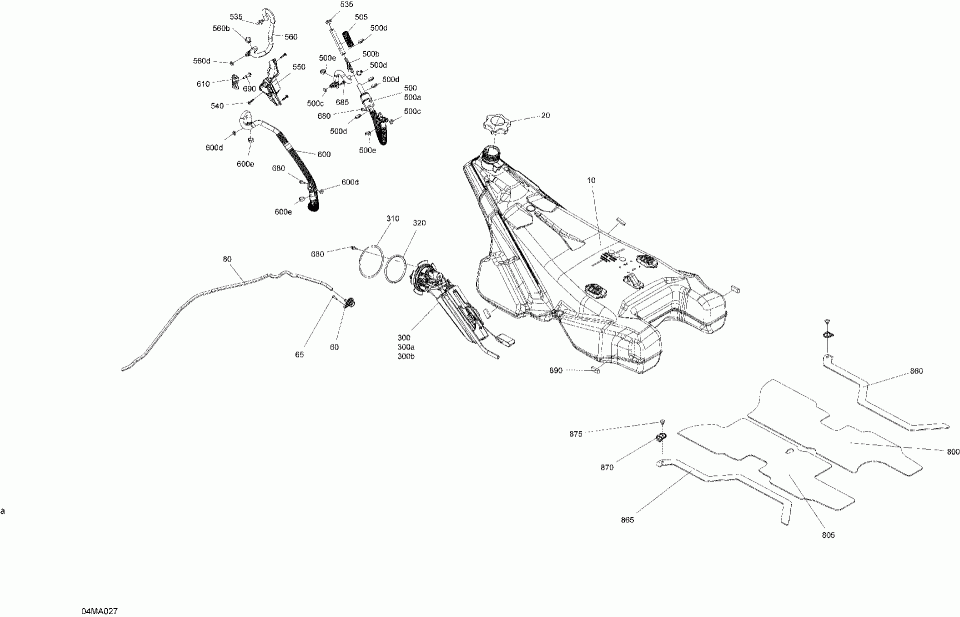

Топливная система

Ski-Doo (Bombardier) EXPEDITION XTREME 850 E-TEC - North America
Ski-Doo (Bombardier)
#oem кодцена
10
513033839
Fuel Tank.
20
513033860
Fuel Tank Cap.
300a
415130069
Gas Filter.
300b
415130281
Fuel Level Sensor.
310
513033798
Circlip.
320
513033862
КОЛЬЦО
500a
513033719
Filter.
500b
513033926
Y Fitting.
500c
513033668
КОЛЬЦО
500d
293650125
Oetiker Clamp.
500e
293650053
Crimp Clamp.
505
415080000
Tubing Protector 16 mm (1 meter pac).
535
293650047
Crimp Clamp, 15.3-706R.
540
250000760
Torx Screw Truss Head K50X20 T20.
550
513034051
Hose Guide.
560b
293650053
Crimp Clamp.
560d
513033668
КОЛЬЦО
60
513033849
Check Valve.
600d
513033668
КОЛЬЦО
600e
293650053
Crimp Clamp.
610
513033903
Bracket.
65
250000918
Truss Torx Screw K40 X 16.
680
250000911
Hex. Flanged Screw M5 X 16.
685
250000911
Hex. Flanged Screw M5 X 16.
690
250001018
Hex. Flanged Screw M5 X 28 S.Grip.
80
415080200
Hose, Polyurethane, iD 5.7mm (10M Roll).
800
513034052
RH Insulated Foam.
805
513034053
LH Insulated Foam.
860
513033981
Foam.
865
513033982
Foam.
870
513033917
Retainer Plate.
875
293150104
Pop Rivet 3/16
890
513034038
Tank Guard.
