09- frame - system - model 154 Запчасти для снегоходов Ski-Doo (Bombardier) EXPEDITION SPORT 600 ACE, Europe (2020)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

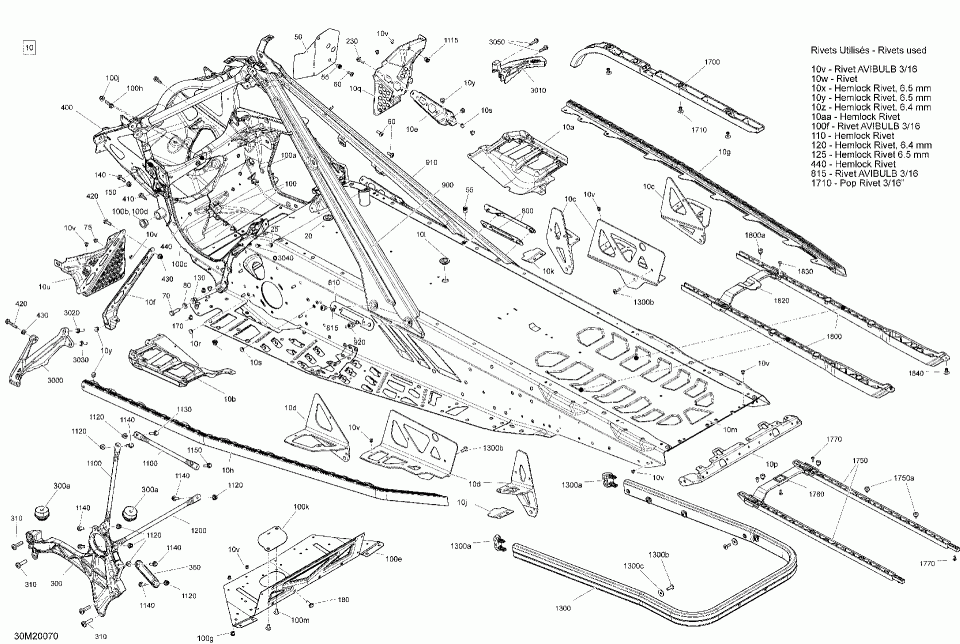

09- frame - system - model 154

Ski-Doo (Bombardier) EXPEDITION SPORT 600 ACE, Europe

09- frame - system - model 154

#

oem код

название

цена

10

Chassis Tunnel Module 154

Chassis Tunnel Module 154

100b

Leg Cushion.

Leg Cushion.

100d

Leg Cushion.

Leg Cushion.

100e

Bottom Plate.

Bottom Plate.

100f

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

100g

Insert M5 X 0.8.

Insert M5 X 0.8.

100h

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

100j

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

100k

Oil Plate.

Oil Plate.

100m

Torx Truss Screw M6 X 12.

Torx Truss Screw M6 X 12.

10a

Deep Black, RH Footrest Reinforcement.

Deep Black, RH Footrest Reinforcement.

10aa

Hemlock Rivet.

Hemlock Rivet.

10b

Deep Black, LH Footrest Reinforcement.

Deep Black, LH Footrest Reinforcement.

10c

RH Bracket.

RH Bracket.

10d

LH Bracket.

LH Bracket.

10e

Stirrup Reinforcement.

Stirrup Reinforcement.

10f

Deep Black, LH Chasssis Reinforcement.

Deep Black, LH Chasssis Reinforcement.

10g

RH Roller.

RH Roller.

10h

LH Roller.

LH Roller.

10j

LH Reinforcement Plate.

LH Reinforcement Plate.

10k

RH Reinforcement Plate.

RH Reinforcement Plate.

10m

Radiator Tunnel 154

Radiator Tunnel 154

10p

Rear Cap.

Rear Cap.

10q

RH Footrest.

RH Footrest.

10r

Full Moon Dart 8 mm.

Full Moon Dart 8 mm.

10s

Full Moon Dart 10 mm.

Full Moon Dart 10 mm.

10t

Black, Plug.

Black, Plug.

10u

LH Foot Protector.

LH Foot Protector.

10v

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

10w

Rivet.

Rivet.

10x

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10y

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10z

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

110

Hemlock Rivet.

Hemlock Rivet.

1100

Upper Colomn Support.

Upper Colomn Support.

1120

Elastic Flanged Nut M6 X 1.0.

Elastic Flanged Nut M6 X 1.0.

1130

Hex. Flange Screw M6 X 25.

Hex. Flange Screw M6 X 25.

1140

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

1150

Hex. Flanged Screw M6 X 25, Scotch Grip.

Hex. Flanged Screw M6 X 25, Scotch Grip.

120

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

1200

Center Column Support.

Center Column Support.

125

Hemlock Rivet 6.5 mm.

Hemlock Rivet 6.5 mm.

130

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

1300

Black, Hitch Bumper 154. Includes 1300 to 1300a.

Black, Hitch Bumper 154. Includes 1300 to 1300a.

1300a

Bumper Cap.

Bumper Cap.

1300b

Torx Screw M6 X 1.0 X 18, Scotch Grip.

Torx Screw M6 X 1.0 X 18, Scotch Grip.

1300c

Flat Washer.

Flat Washer.

140

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

150

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

170

Insert M5 - 0.8.

Insert M5 - 0.8.

180

Hex. Flange Screw M6 X 16.

Hex. Flange Screw M6 X 16.

20

Black, Plug.

Black, Plug.

230

Hex. Flanged Screw M6 X 20, Scotch Grip.

Hex. Flanged Screw M6 X 20, Scotch Grip.

25

Insert Half Hex Body M6 x 1.0.

Insert Half Hex Body M6 x 1.0.

30

Washer.

Washer.

300a

Rubber Mount.

Rubber Mount.

3040

Dart.

Dart.

310

Screw-Pan HD.Torx M8X30.

Screw-Pan HD.Torx M8X30.

350

LH Front Chassis Reinforcement.

LH Front Chassis Reinforcement.

400

S Module.

S Module.

410

Screw-Forming Hex.HD.FL. M6 X 16.

Screw-Forming Hex.HD.FL. M6 X 16.

420

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

430

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

440

Hemlock Rivet.

Hemlock Rivet.

70

Hex Screw M8 X 30.

Hex Screw M8 X 30.

80

Flat Washer 8 mm.

Flat Washer 8 mm.

800

LH Under Chassis Reinforcement.

LH Under Chassis Reinforcement.

810

RH Under Chassis Reinforcement.

RH Under Chassis Reinforcement.

815

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

900

Left Member Black Assembly. Includes 900 to 900a.

Left Member Black Assembly. Includes 900 to 900a.

910

RH Member Black Assembly.

RH Member Black Assembly.

920

Pan Head Torx Screw M8 X 12.

Pan Head Torx Screw M8 X 12.
