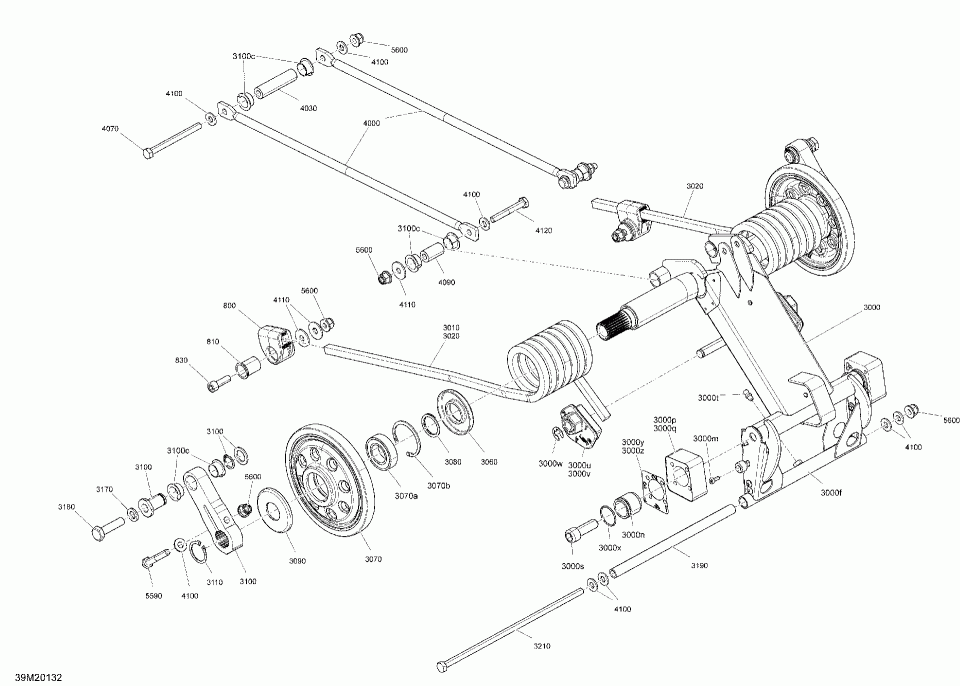

08- suspension, rear - upper section

Ski-Doo (Bombardier) FREERIDE 137 850 E-TEC - North America
Ski-Doo (Bombardier)
#oem кодцена
3000m
205041060
Socket Head Screw M4X 10.
3000n
503192749
Guide Block.
3000p
503192918
LH Cam Block.
3000q
503192919
RH Cam Block.
3000s
205523554
Socket Head Screw M12 X 35.
3000t
408200700
Grease Fitting.
3000u
503191565
LH Cam Adjuster.
3000v
503191566
RH Cam Adjuster.
3000w
293370013
E-Circlip.
3000x
503192921
КОЛЬЦО
3000y
516004900
LH Block Sticker Decal.
3000z
516004901
RH Block Sticker Decal.
3010
503192105
Black, LH Spring Square.
3020
503192104
Black, RH Spring Square.
3060
503190434
Labyrinth Seal.
3070a
503193548
Ball Bearing.
3070b
415129780
Retaining Ring.
3080
503189146
Axle Spring.
3090
503192592
Labyrinth Ring.
3100c
503191555
Swivel Bushing.
3110
293370080
Retaining Ring.
3170
503192496
Washer.
3180
207204056
Cap Screw Hex. M10 X 40.
3190
503189156
Pivot Arm Axle.
3210
503192440
Bolt M8 X 248mm.
4000
503193005
Link Rod.
4030
503190643
Axle Bar (Long).
4070
503193372
Screw M8 X 90.
4090
503192555
Axle Bar.
4100
503192494
Washer.
4110
234082410
Flat Washer 8 mm.
4120
207085556
Hex. Screw M8 X 55.
5590
207684044
Hex. Flanged Screw M8 X 40.
5600
233281466
Elastic Flang Nut M8.
800
503195351
Spring Support.
810
503190754
Retainer Cushion.
830
205082554
Socket Screw M8 X 25.
